Roll paper
Paper exit
Paper feeder
Roll paper
5. Insert the edge of the paper into the paper feeder (black plastic part). If inserted
correctly, the edge of the paper will pass through the paper exit.
6. Insert the top edge of the paper into the tear bar slot, then mount the cover by
reversing the procedure for opening the cover in step 1 above.
Note: When the paper end mark appears on the paper, replace the roll paper before it
runs out.
５. 将 纸張前端插入进纸器（黑色塑料部分）。如正确插入，纸張前端将从出
纸口出来。
６. 将 纸張上端插入撕纸片口，然后使用和上面第１歩打开机盖時相反的歩cm2
盖回机盖。
注意：当 纸張用完标志出现后，请在纸張用完前更换纸卷。
2. SETTING THE PAPER
2-1. For models with tear bar
1. Open the cover.
Important!
a. Do not touch the print head immediately after printing as it can be extremely hot.
b. Do not touch the cutter blade. There is a cutter inside the paper outlet slot.
Not only should you not put your hand in the paper outlet slot while printing
is in progress, never put your hand into the outlet even when printing is not in
progress.
2. Cut off the front edge of the roll paper perpendicularly.
3. Confirm that the power of the printer is turned on.

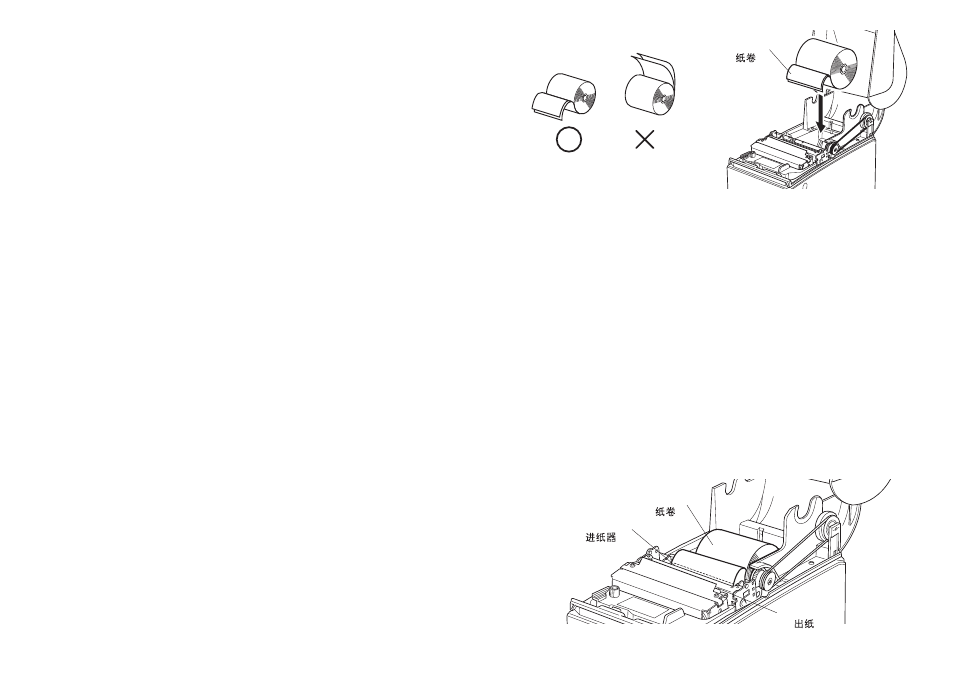

4. While observing the direction of the roll, set the paper roll into the hollow as
shown.
2．放入纸張
２-1. 对撕纸型
１. 打 开机盖
重要 ： ① 不要在刚打印完毕時用手摸打印头，因为此时它很烫。
② 不要摸切刀片。出纸口里面装有切刀，无论是打印尚在进行或已
停止，都 别将手伸入里面。
２. 沿垂直方向切 齐卷纸前端。
３. 确认打印机电源已打开。
４. 留意 纸卷的方向，如图般将纸卷放入放纸凹槽内。
