20

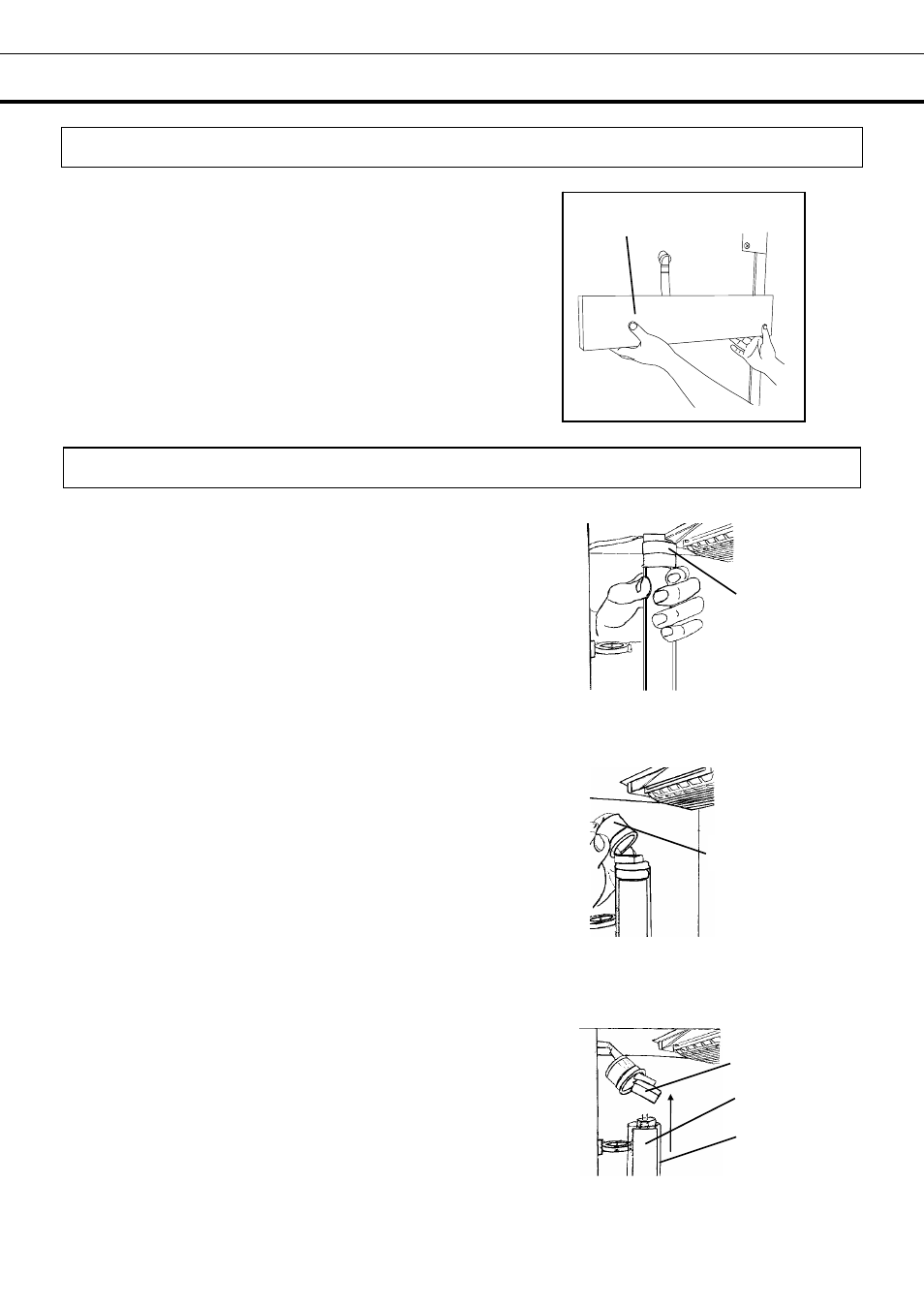

ROUTINE MAINTENANCE
Cleaning of evaporating tray
1. Remove the evaporating tray installed on the back of the
frame by lifting the tray.
2. Wash away any accumulated dirt in the evaporating tray.
3. After cleaning of the evaporating tray, return it to the
original position.
Replacement of fluorescent light
1. The fluorescent light is placed vertically at the center of
the frame.
2. Disconnect the power supply plug.
3. When replacing the fluorescent light, remove all shelves
or drawers.
4. In the case of MBR-1404GR, after removing all drawers,
remove the rail that is placed vertically at the center of the
frame.
5. Pull the fluorescent light towards the rear together with
the cover, as shown in Fig. 1, together with the wiring.
6. Take out the fluorescent light and remove the connector
water-proofing rubber at both ends. As shown in Fig. 2,
shift the rubber by rolling it.
7. Remove the connector, as shown in Fig. 3.
8. Next, pull out the fluorescent light. Pull gently from the
cover.
9. After replacing the new fluorescent light, return it to the
original position.
Evaporating tray
Connector
Light
Cover
Connector water-
proofing rubber
Fig. 3
Connector
Fig. 2
Fig. 1
