Instructions for the installer
13
5.2 Adjustment for LPG (Propane)
Check that the connection has been made as described in
the “Gas connection” section.

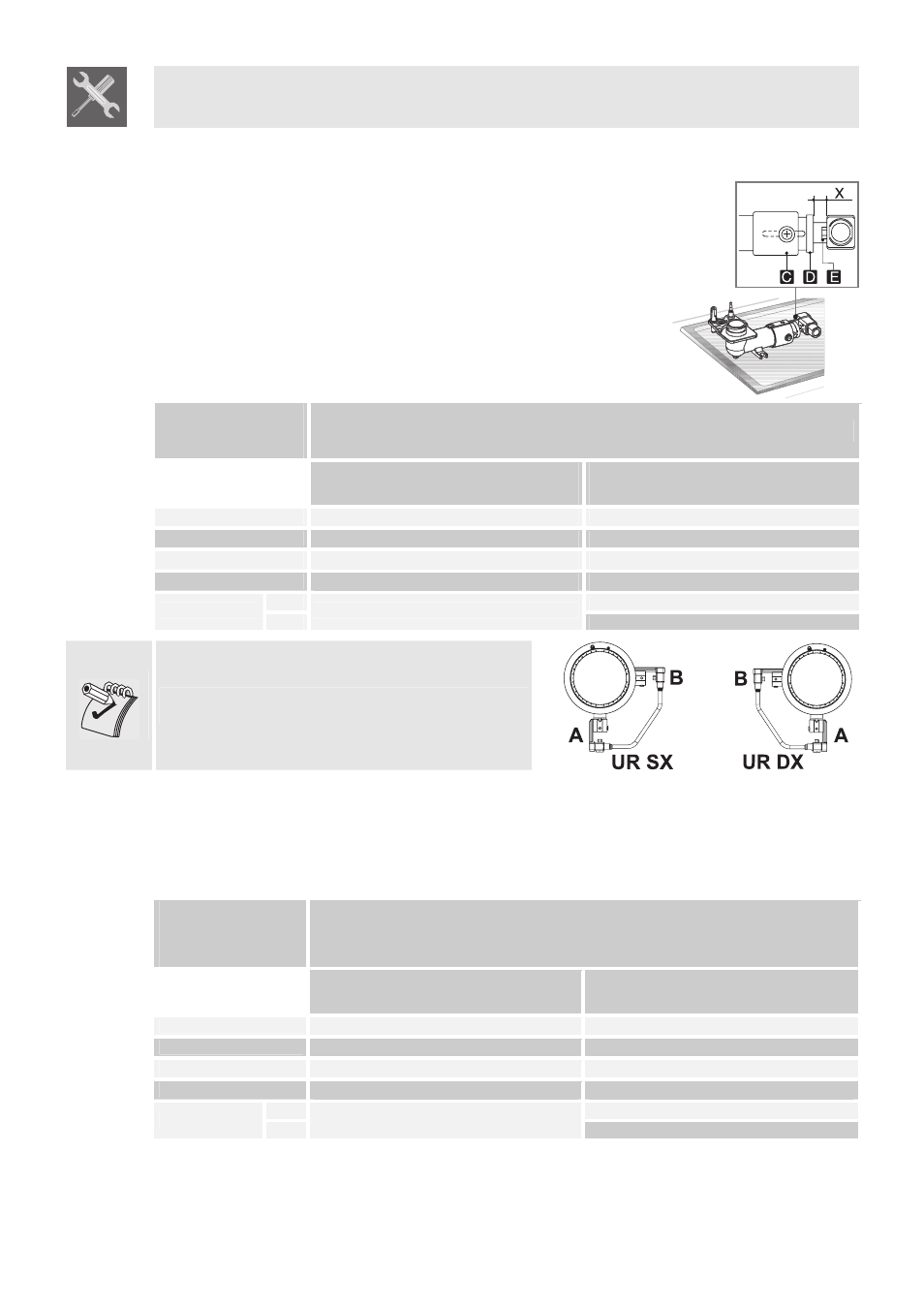

Undo the screw “C” and push the air regulator “D” fully
down. Use a spanner to remove the nozzles “E” and fit
those of suitable type following the instructions given in the
tables for bottled gas LPG (Propane) 2.75 kPa. The nozzle
must not be tightened to a torque of over 3 Nm.
LPG (Propane) – 2.75 kPa Burner
Nominal gas Injector
consumption (MJ/h) (mm)
4.2 0.54 Auxiliary (1)
5.9 0.65 Semi rapid (2)
8.6 0.78 Medium rapid (3)
9.5 0.85 Large rapid (4)
A 0.82
UR (5) 13.5
B 0.54
CAUTION: for references A and B on the left UR
and right UR burners, see drawings at side.
5.3 Adjustment for natural gas
The hob has been adjusted for natural gas at a pressure of 1.0kPa.
To allow the unit to work back with this type of gas, after it has been adjusted for LPG
(Propane), perform the same operations described in paragraph “5.2 Adjustment for
LPG (Propane)”, but refer to the following table for the proper injectors.
Burner
NG – 1.0 kPa
Nominal gas Injector
consumption (MJ/h) (mm)
3.2 0.82 Auxiliary (1)
4.8 1.00 Semi rapid (2)
8.6 1.25 Medium rapid (3)
11.4 1.50 Large rapid (4)
A 1.45
UR (5) 13.5
B 0.82
