9-2 Error Messages
To exit from the digital hours meter
Press the MENU button.
To jump to H01
Press the MENU button, then the COUNTER SELECT
button.
Every time you press the COUNTER SELECT button,
menu item H01 or B01 is recalled alternately.
9-2 Error Messages

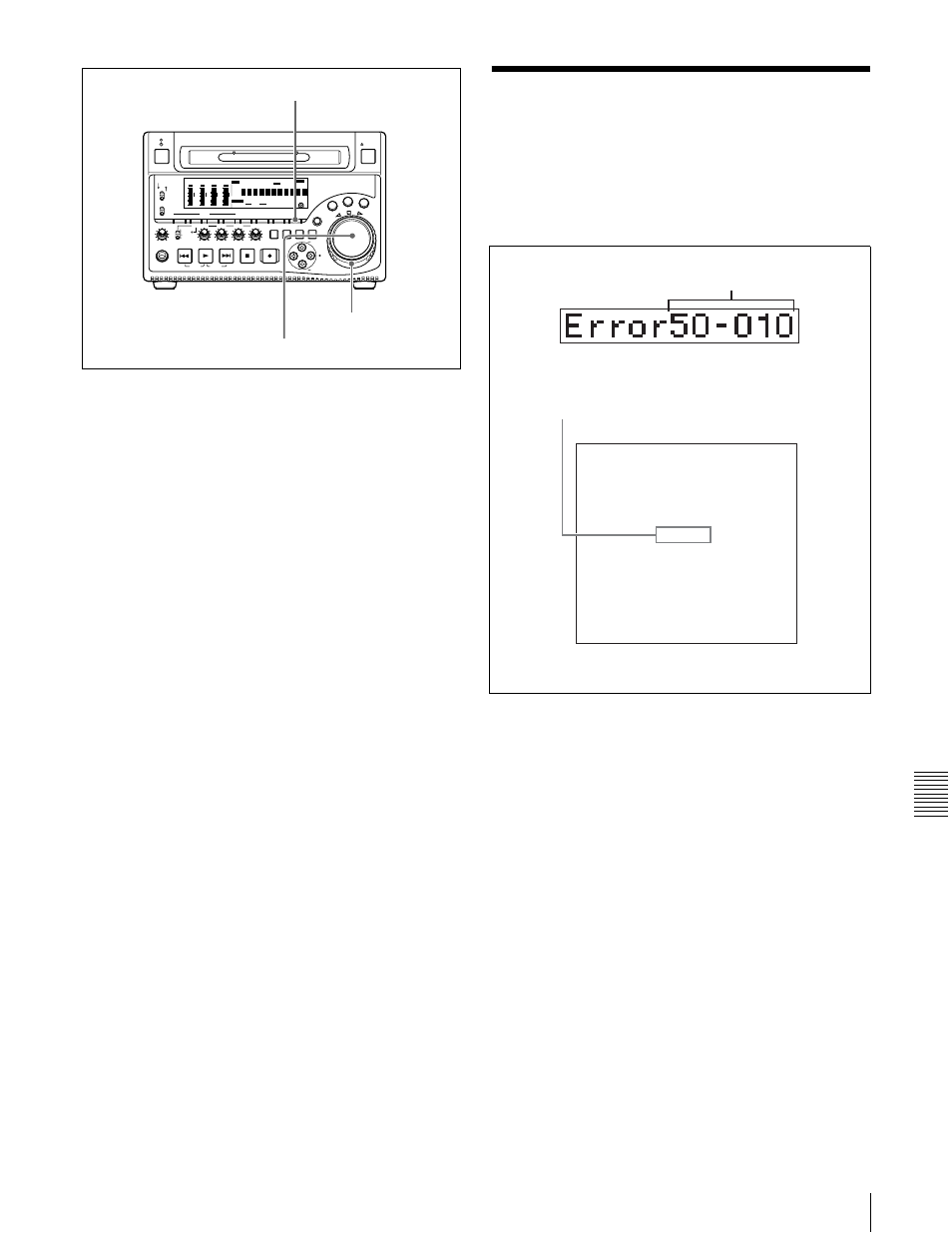

Error codes appear in the time data display when an error
(usually a hardware problem) occurs. Error codes and error
messages appear on the monitor connected to this unit.
When an error message appears, follow the instructions in
the error message to resolve the problem.
