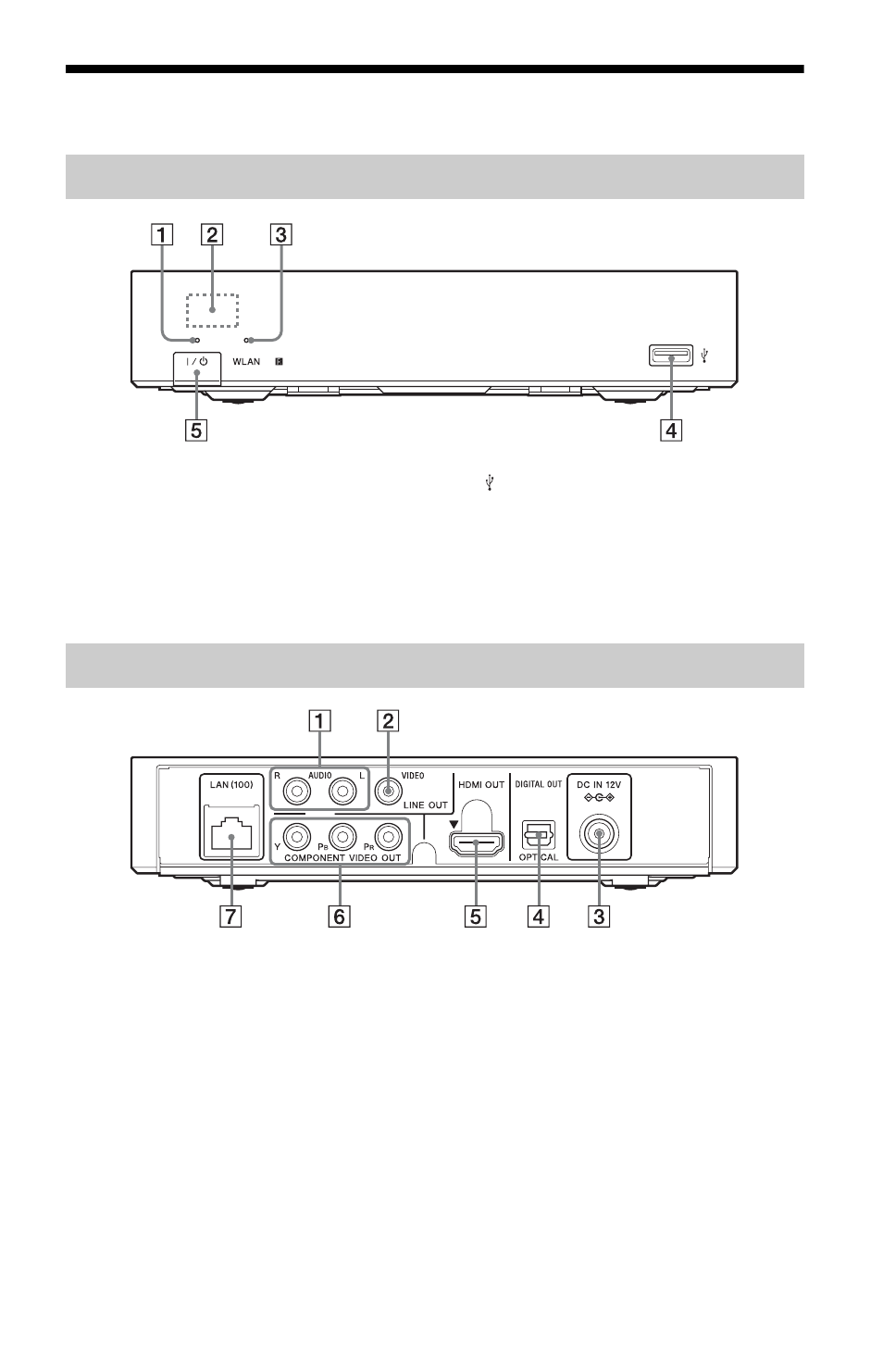

Guide to Parts and Controls
A Power indicator
Lights up when the player is turned on.
B Remote sensor
C WLAN indicator
Lights up when using a wireless LAN.
D (USB) jack
Connect a USB device to this jack.
E [/1 (on/standby)
Turns on the player, or sets to standby
mode.
A LINE OUT (R-AUDIO-L) jacks
B LINE OUT (VIDEO) jack
C DC IN 12V (AC adapter input)
jack
D DIGITAL OUT (OPTICAL) jack
E HDMI OUT jack
F COMPONENT VIDEO OUT
(Y, P
B
, P
R
) jacks
G LAN (100) terminal
Front panel
Rear panel
,continued
