Connecting the TV
28
Personal Computer To connect a PC (personal computer)
If you connect your PC to the TV, you can watch your personal computer’s
display on the TV.
When your PC is connectd to the TV with the supplied HD15-HD15 cable
and optinal audio cable, you can view and listen to the PC’s video and audio
output on the TV.
Notes on Using This Connection
z When connecting to
an Apple Macintosh
computer, use the
display output
connecting cord
supplied with your
Macintosh computer to
connect to the PC IN
(RGB IN) terminal of
the TV. Use an
optional adapter if
necessary. If you use
an adapter, first
connect the adaptor to
your computer, then
connect the supplied
HD15-HD15 cable.
z Depending on the PC,
you will find a flicker or
noisy picture in the
screen when inputting
corresponding signal.
In that case, adjust
Phase and Pitch in the
Screen settings.
S VIDEO
VIDEO
AUDIO
(MONO)
L
R
VIDEO IN
1 3
PC
AUDIO
IN
L
R
4
AUDIO
OUT
Y
P B
P R
AUDIO
L
R
HD/DVD IN
(1080i/720p/480p/480i)
4
IN
PC IN
(RGB IN)
5
6
AUDIO IN
L
R
Right side of TV
To PC IN (RGB IN) jack
To PC AUDIO IN jack
HD15-HD15
cable (analog
RGB, supplied) Audio cable
(optional: stereo
mini jack)

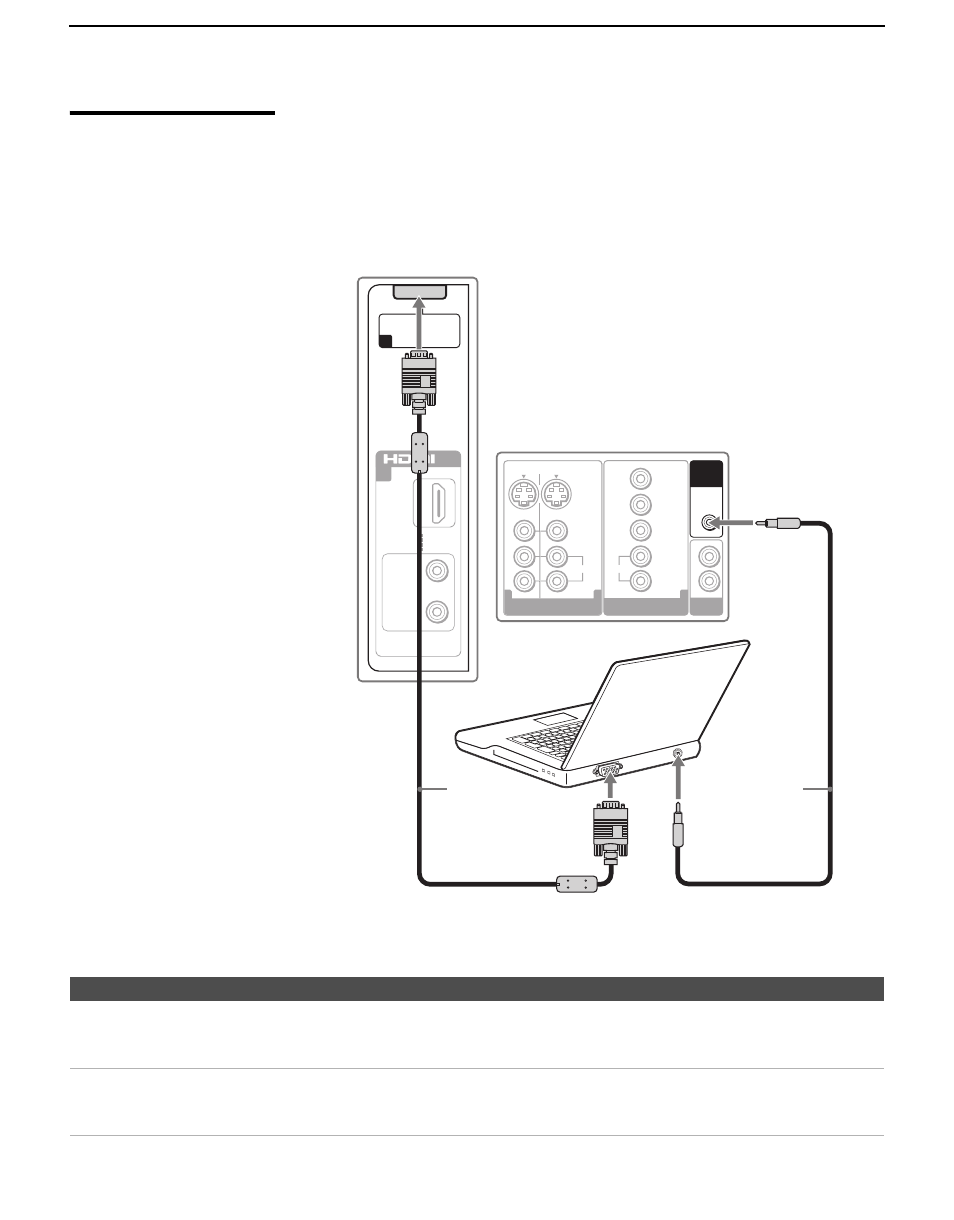

Audio output terminal To D-Sub output terminal
Rear of TV
To Do This ... Do This ...
Watch the PC Press WEGA GATE to select the PC input (Video 6) in the External Inputs list.
or
Press TV/VIDEO repeatedly to select the PC input (Video 6).
Label video inputs to easily
identify equipment connected
to the TV See the instructions for setting up Label Video Inputs on page 61.
