Connecting the TV
27
Conn
ectin
g the
TV

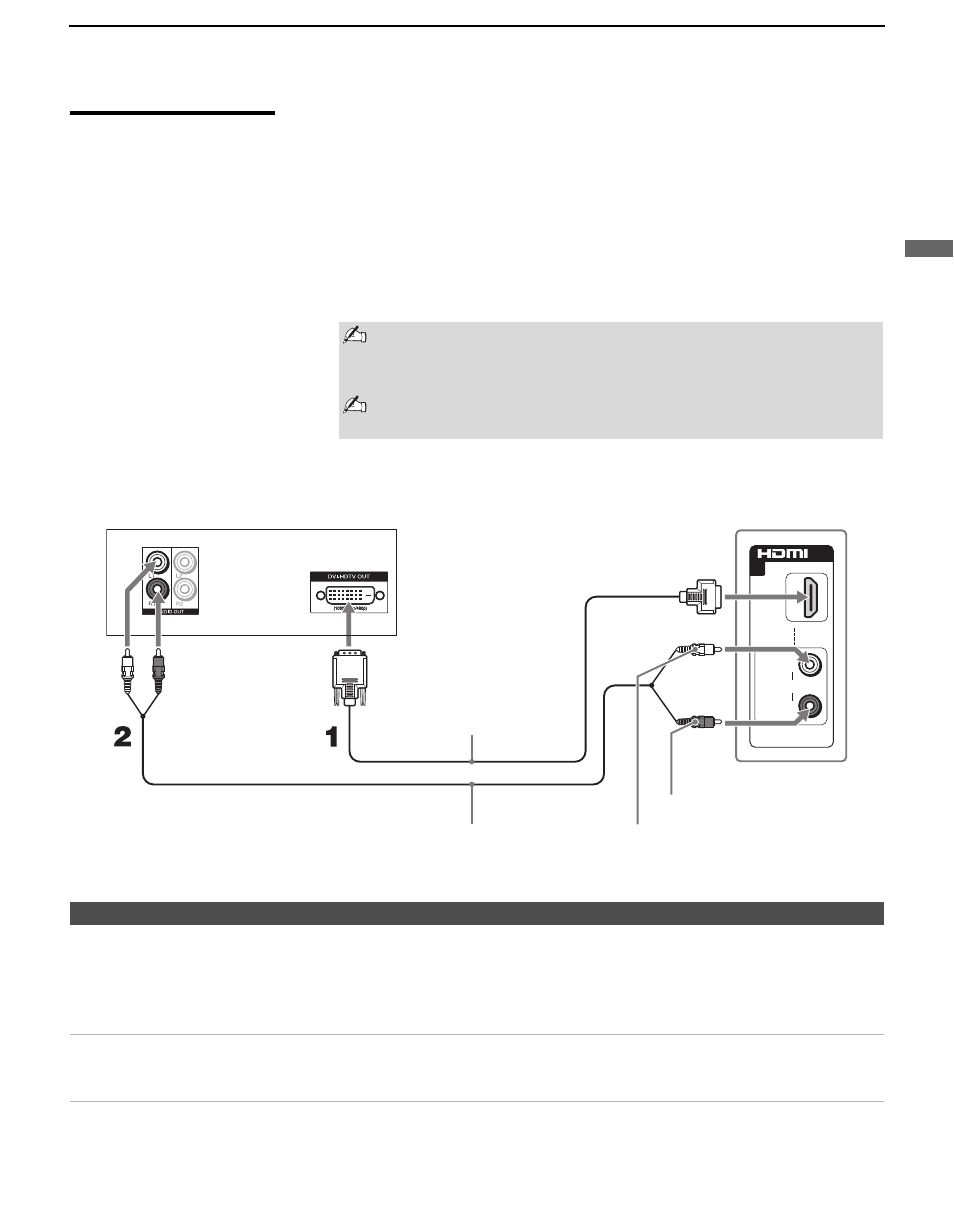

DVI-HDTV-Equipped
Device To connect a device with DVI-HDTV connector
If the device does not have an HDMI connector, you can connect the TV’s
HDMI IN connector to the device’s DVI-HDTV output connector using a
DVI to HDMI cable.
1 Use a DVI to HDMI adapter or cable to connect the device’s DVI-
HDTV output connector to the TV’s HDMI IN connector on the right
side panel.
2 Use an Audio cable to connect the device’s AUDIO output jacks to the
TV’s AUDIO input jacks on the right side panel.
Notes on Using This Connection
The DVI-HDTV VIDEO connector does not provide audio, so
audio cables must be connected to provide sound when a DVI
to HDMI adapter is used.
Do not connect a PC to the TV’s HDMI input. Use the PC IN
(RGB IN) connector instead when connecting a PC.
IN
AUDIO IN
L
R
5
DVI-HDTV-Equipped Device
DVI to HDMI
adapter or cable
Audio cable
Right side of TV
AUDIO-L (white)
AUDIO-R (red)
To Do This ... Do This ...
Watch the device Press WEGA GATE to select the DVI-HDTV-equipped input (Video 5) in the
External Inputs list.
or
Press TV/VIDEO repeatedly to select the DVI-HDTV-equipped device input
(Video 5).
Label video inputs to easily
identify equipment connected
to the TV See the instructions for setting up Label Video Inputs on page 61.
