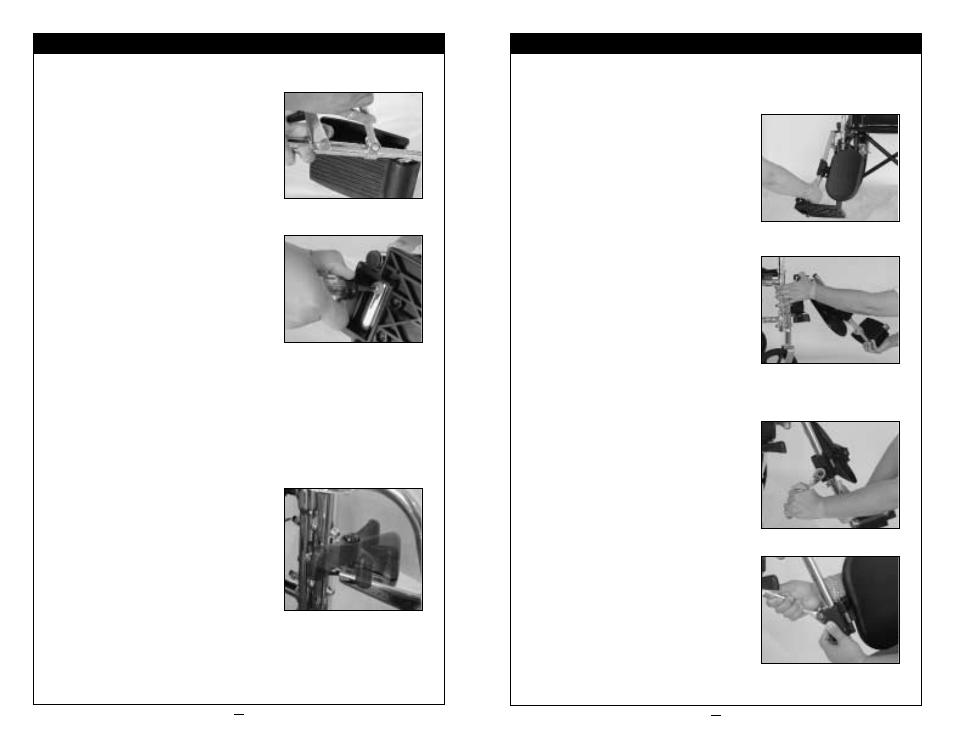

33
H. ELEVATING LEGREST (Optional)
1. Installation
a. Follow steps1-5 for standard adjustments
as for swing-away hangers and footrests.
(p. 32-33)
2. Adjustment
a. Lift legrest to chosen position.
Legrest will lock in place.
Note: Any weight applied to calfpad and footplate must be relieved before legrest will lower.
b. To lower legrest, press release lever (1) down
and lower legrest to chosen position. Legrest
will lock in place.
3. Changing Elevating Legrest Direction
from Left to Right
a. Remove bolt nut from calf support bracket
using 7/16" box end wrench.
b. Turn 180° and place calf support on legrest
arm.
c. Reinsert bolt with nut facing outside of chair
and secure with 7/16" box end wrench.
d. See page 33, #4 for directions to change
footplate from left to right.
continued on page 34
32
3. Footplate Height-Adjustment
a. Use 1/2" box end wrench to
loosen nut on clamp located on
footrest tube.
b. Adjust footplate to proper position.
c. Tighten nut securely with 1/2" box
end wrench.
4. Changing Footrest from Left to Right
a. Remove set screw with #2 phillips
screwdriver.
b. Pull footplate off post.
c. Turn 180° and insert footplate back on
post. (Be sure that metal strip between
footplate and hanger post remains in place.
Reinsert if necessary.)
d. Remove carriage bolt and nut from clamp
on footrest tube. (See footplate height adjustment above). Reverse direction of
bolt so that nut sits on outside of footrest. Failure to reverse bolt may cause
injury to occupant leg and/or ankle.
e. Replace set screw and tighten.
f.
See p.33 (Changing Elevating Legrest Direction from Left to Right) for
directions if required.
5. Adjusting Position of Release Lever
a. Release Lever has five spring loaded
positions.
b. To change position, pull up on lever
and turn left or right.
c. Let go of lever and snap into position.
X . S E T U P & A D J U S T M E N T X . S E T U P & A D J U S T M E N T
