14. SPECIFICATIONS
14.0a CP155C SPECIFICATIONS
Power consumption
: 600mA max @12V
Power supply
: 12 Volt DC, 7 Watt max
Interface
: Input/Output Interface NMEA-0183
Display
: TFT Color LCD
(active area 5,7")
sunviewable tecnology
Display Resolution
: 320 x 240 pixels
Cartography
: C-MAP NT
+
C-CARD
Operating temperature range : 0/+55 degrees Celsius
Storage temperature
: -20/+70 degrees Celsius
Water Resistence
: splash-proof
Memory
: Non volatile with battery backup
Keyboard
: Silicon rubber, backlight
Weight
: 900 gr. (2 pounds)
User Points (Marks/Waypoints): 600
Routes
: 20 (max 30 Waypoints each)
Track Points
: 3000 (recordable in 5 Tracks)

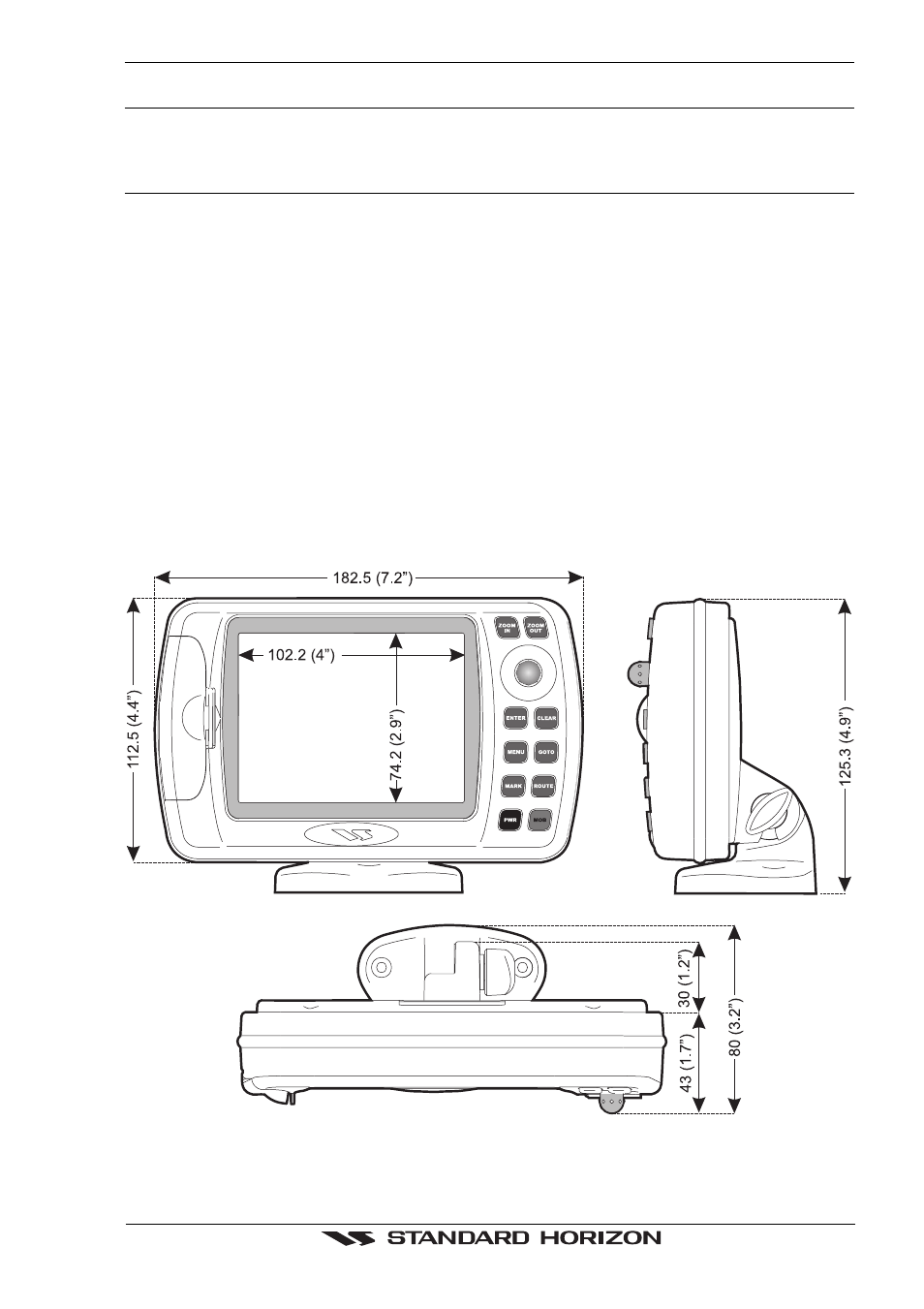

Figure 14.0a - CP155C chartplotter Dimensions [mm/inch]
