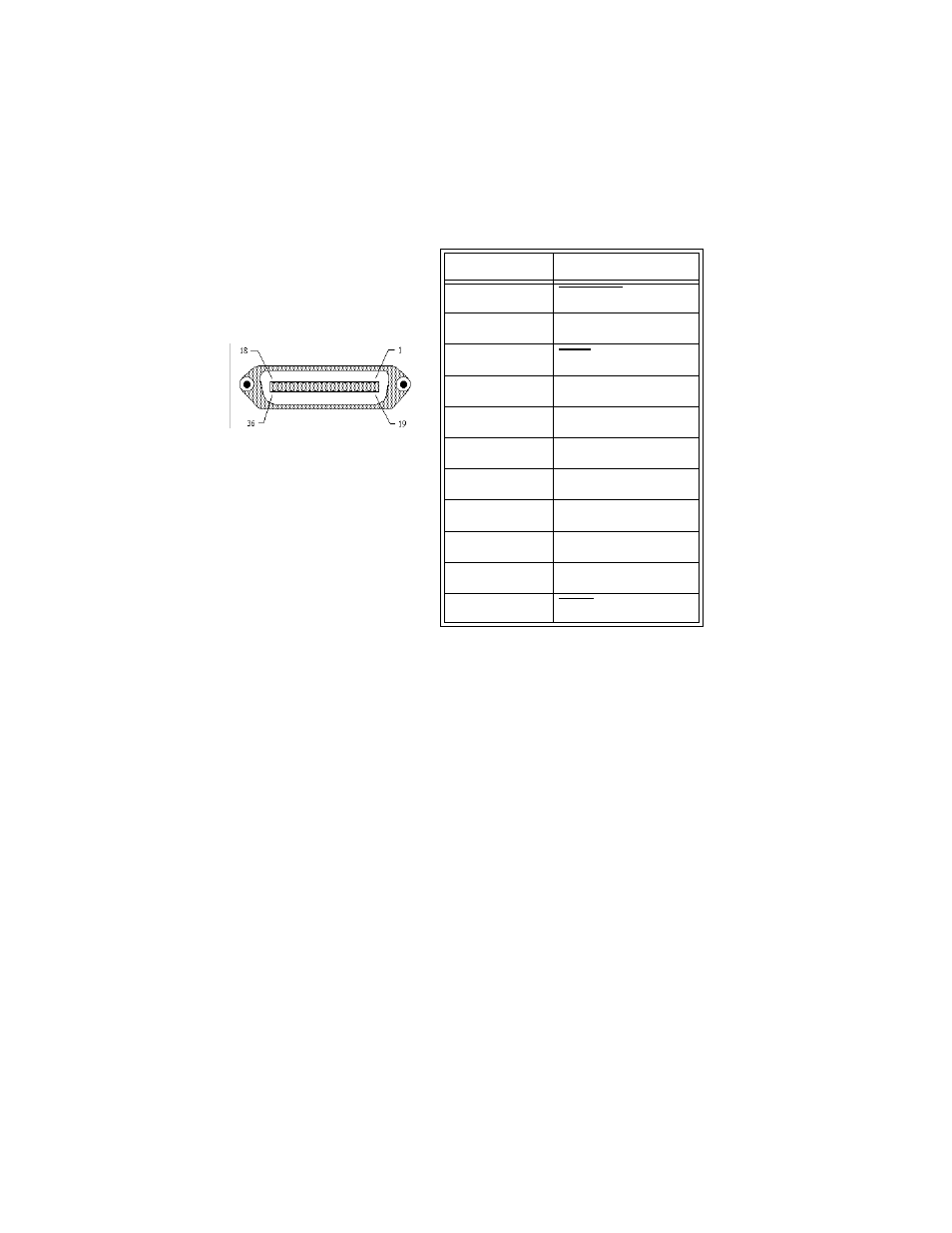

Parallel Input Cable (Centronics 36 pin)
Serial Port Parameters
CX400 printers are configured as Data Terminal Equipment (DTE)
equipment, and use Request-To-Send/Clear-To-Send (RTS/CTS)
handshaking or X-On/X-Off flow control (control characters are DC2
and DC4). The serial port supports the following parameters:
Pin #
Description
1
STROBE
2~9
Data bits 0-7
10
ACK
11
Busy
12
PE (Paper End)
13
Select, always high
16
Signal Ground
17
Chassis Ground
18
+5V DC
19~30
Ground
32
Fault
Speed
9600,19200 or 38400 bps
Parity
Odd, Even or None
Data Bits
7 or 8 bits
Stop Bit(s)
1 or 2
Default Parameters
9600 bps, No parity, 8 data bits, 1
stop bit
