Communication Ports
CX400 printers are equipped with a standard Centronics parallel and
an RS232 communication port, wired as shown below.

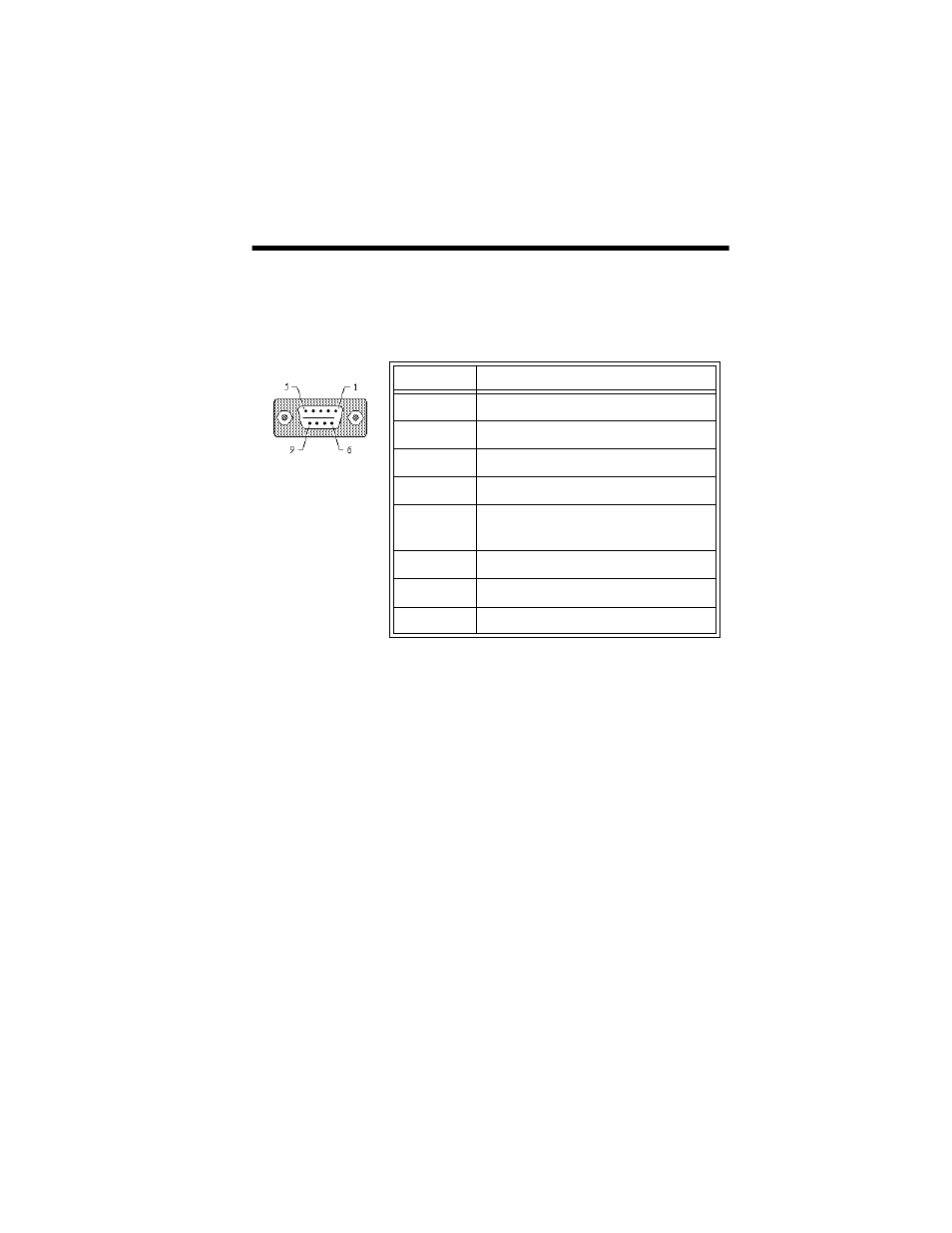

Serial Input Cable (DB9S)
Pin #
Description
2
RXD (data to printer)
3
TXD (data from printer)
4
DTR, always high
5
GROUND
6
DSR, connected to pin 4, always
high
7
RTS (printer busy)
8
CTS
1,9
+5V
