Page 18

930389 Rev. B

X . S e t - u p & A d j u s t m e n t

4. Caster Height Adjustment for the Single and

Double Integral Anti-tip

The anti-tip height can be adjusted by repositioning
the spacers within the caster journal.

Each caster journal is equipped with four 1/8" thick
spacers (1).

a. To lower the casters remove desired spacers and

position them on the bottom of caster journal (2).

b. To raise the height of the caster remove desired

spacers and move to the top of the caster jour-
nal. With the double integral make sure both
casters are at the same height.

K. CHECK-OUT

After the wheelchair is assembled and adjusted, it
should roll smoothly and easily. All accessories should
also perform smoothly. If you have any problems, fol-
low these procedures:

1. Review assembly and adjustment sections to

make sure chair was properly prepared.

2. Review troubleshooting guide.
3. If your problem persists, contact your authorized

Quickie supplier.
If you still have a problem after contacting your
authorized Quickie supplier, contact Sunrise
Medical Mobility Products customer service. See
the introduction page for details on how to con-
tact you authorized Quickie supplier or Sunrise
Medical Mobility Products customer service.

X . S e t - u p & A d j u s t m e n t

930389 Rev. B

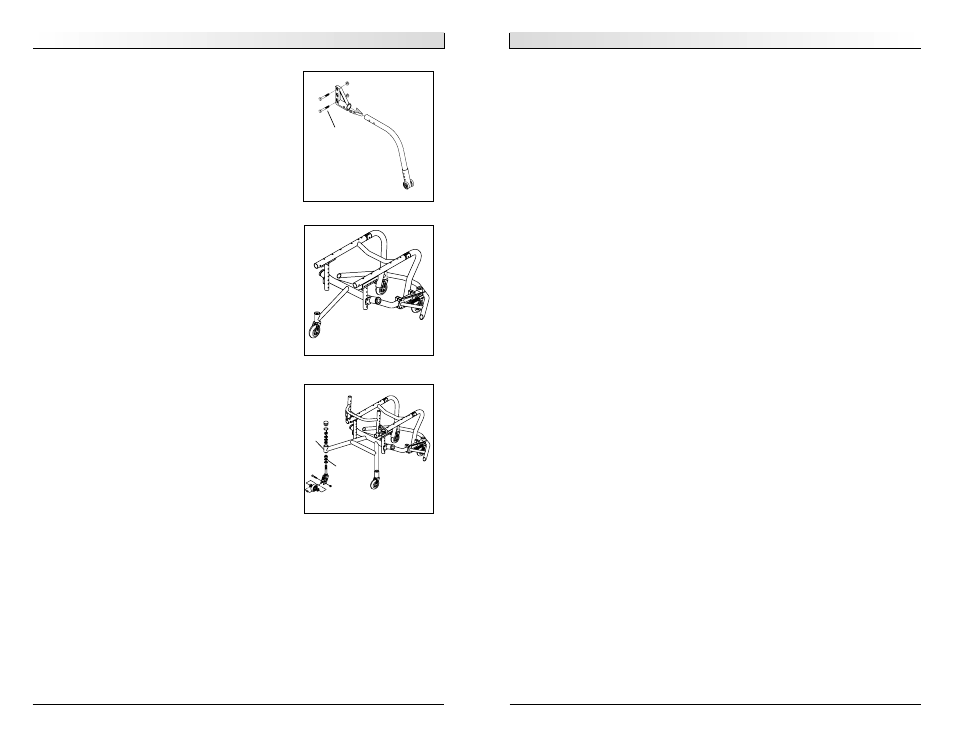

J. ANTI-TIP TUBES

Sunrise recommends anti-tip tubes for all wheelchairs.

NOTE– Use a torque setting of 100 in./lbs. when set-

ting-up anti-tip tubes.

1. Inserting Anti-Tip tubes Into Receiver:

a. Press the rear anti-tip release lever on the anti-

tip tube assembly so that both release pins are
drawn inside.

b. Insert the anti-tip tube assembly into receivers;

assure release pins engage.

2. Adjusting Anti-Tip Receiver

a. Loosen hardware at B.
b. Reposition/rotate anti-tip receiver

to desired position.

c. Retighten hardware.

3. Adjusting Anti-Tip Tube Wheel

The anti-tip tube wheels may have to be raised or low-
ered to achieve proper clearance of 1/4" to 2".

1. Press the anti-tip wheel release button so that

both release pins are drawn inside.

2. Raise or lower to one of the three predrilled holes.
3. Release button.
4. Adjust the second anti-tip tube wheel the

same way. Both wheels should be at exactly
the same height.

Single Integral

Double Integral
