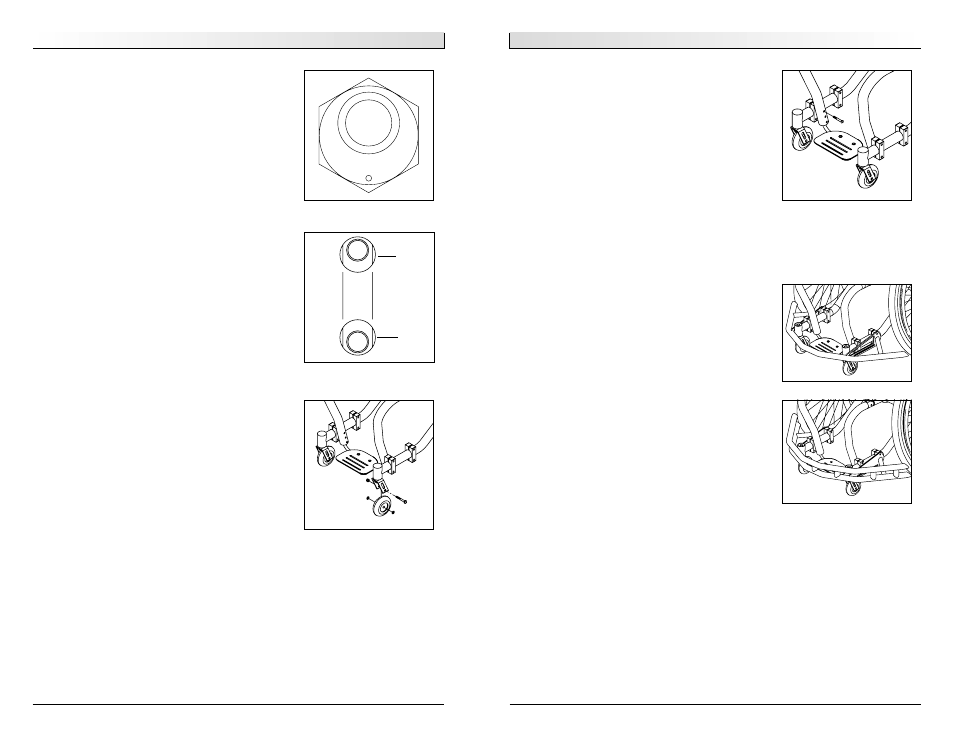

930389 Rev. B
X . S e t - u p & A d j u s t m e n t 33
H. FOOTREST
NOTE– Use a torque setting of 100 in./lbs. when
adjusting footplate.
1. Height Adjustment
a. Remove footrest bolt and slide footrest up or
down inside tube to correct position.
b. Tighten bolt securely.
2. Horizontal Adjustment
a. Loosen set screws at footrest receivers.
b. Slide footplate assembly to desired position.
c. Retighten screws.
3. Footplate Angle Adjustment
a. Loosen flathead screws.
b. Reposition footplate to desired angle and
retighten screws.
I. WING EXTENSIONS
1. Wing Adjustments
a. Loosen bolts on wing clamps.
b. Slide wing out or in to
desired location.
c. Retighten bolts into clamps.
d. Same as above for double wing
configuration.
X . S e t - u p & A d j u s t m e n t
930389 Rev. B
32
4. Toe-in and Toe-out
Toe-in and Toe-out are terms that relate to how well
the rear wheels of the chair are aligned. This will
affect how well the chair will roll. Drag or resistance
occurs in a wheelchair when the rear wheels are not
properly aligned.
Toe-in or toe-out can be slightly adjusted by adjusting
the eccentric axle sleeve.
5. Eccentric Axle Sleeve Adjustment
2° eccentric axle sleeves are standard for added cam-
ber and/or toe-in toe-out adjustments. Refer to “Axle
Sleeve Adjustments” for tightening procedures.
a. To add 2° of camber:
1. Loosen axle sleeves.
2. Position axle sleeves with large lobes down (A).
b. To subtract 1° of camber.
1. Loosen axle sleeves.
2. Position axle sleeves with large lobes up (B).
c. Make sure both sleeves are aligned equally.
G. CASTER FORKS
1. Caster Wheel Replacement
a. Loosen the bolt and remove the caster wheel and
the two washers.
b. Position new caster wheel into fork.
c. Carefully position washer on each side of
caster wheel.
d. Insert bolt. Tighten securely.
A
B
Basketball wings
Rugby Offensive Double Wings
