Augers, impeller – Snapper 8245 User Manual
Page 3
3

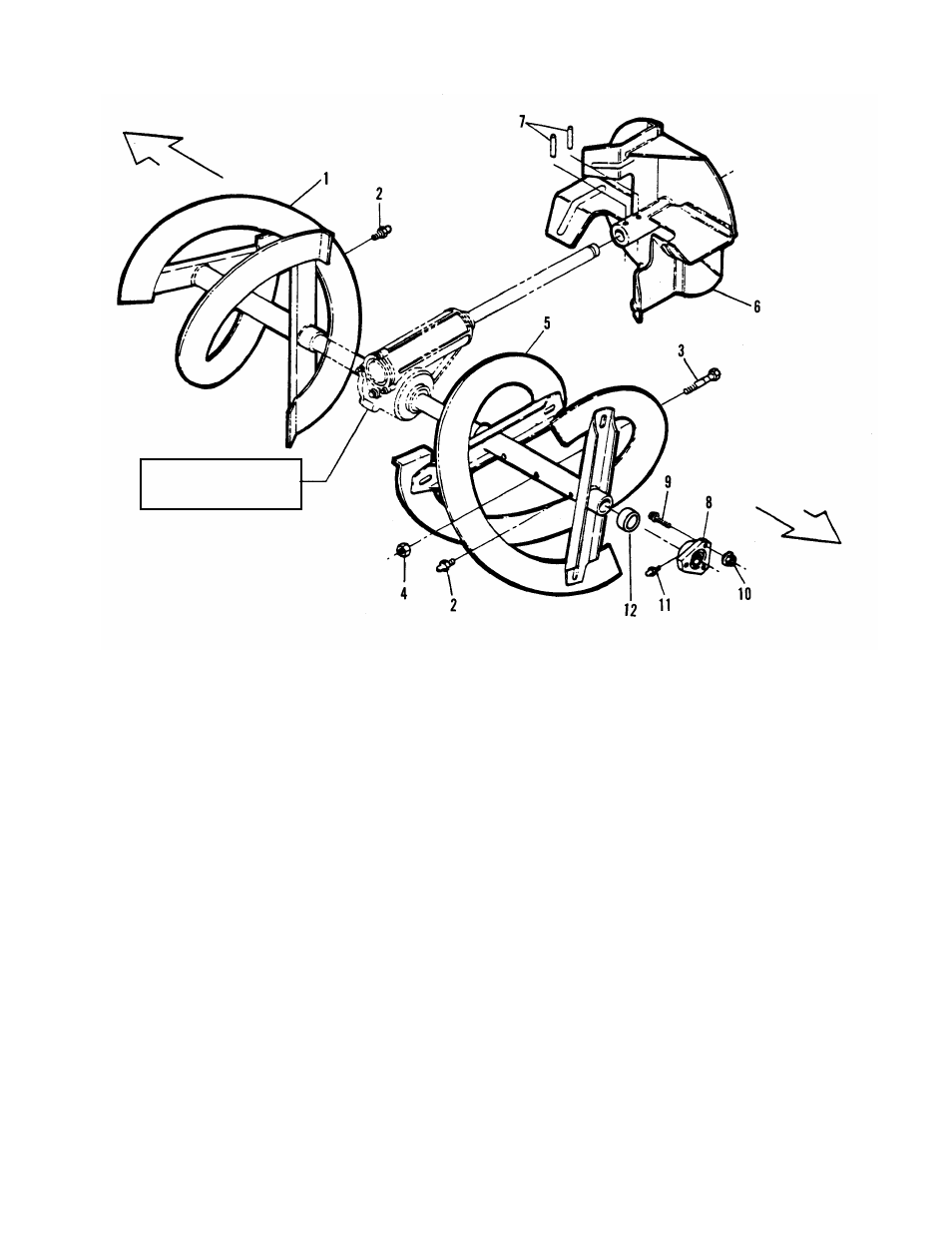

AUGERS,
IMPELLER
ITEM
PART
NO.
DESCRIPTION
1
4-9928
AUGER, Right Side (8245 Models)
-
4-9935
AUGER, Right Side (8265, 9265 & E9265 Models)
-
4-9922
AUGER, Right Side (10305E, E10305E, N10305E, 11305 &
E11305
Models)
2
1-3864
FITTING, Grease (2)
3
9-1550
BOLT, 5/16-18 x 1-7/8" Shear (2)
4
9-1298
NUT, 5/16-18 Hex Nyloc (2)
5
4-9927
AUGER, Left Side (8245 Models)
-
4-9936
AUGER, Left Side (8265, 9265 & E9265 Models)
-
4-9921
AUGER, Left Side (10305E, E10305E, N10305E, 11305
E11305
Models)
6
4-9677
FAN,
Impeller
7
1-3862
PIN, 1/4 x 1-1/2" Roll (2)
8
5-1350
ASSEMBLY, Bearing (Includes Item 11)
9
9-0699
BOLT, 1/4-20 x 3/4" Hex Flange Lock, Grade 5 (6)
10
9-1065
NUT, 1/4-20 Hex Flange Lock (6)
11
1-0817
FITTING, Grease (2)
12
2-8221
SPACER (Used on Model 8245 Models Only) (2)
LARGE FRAME SNOWTHROWER
MANUAL No. 06037
RIGHT SIDE
LEFT SIDE
GEARBOX, SHAFTS
(See Pages 8 – 9)
