Page 20
20

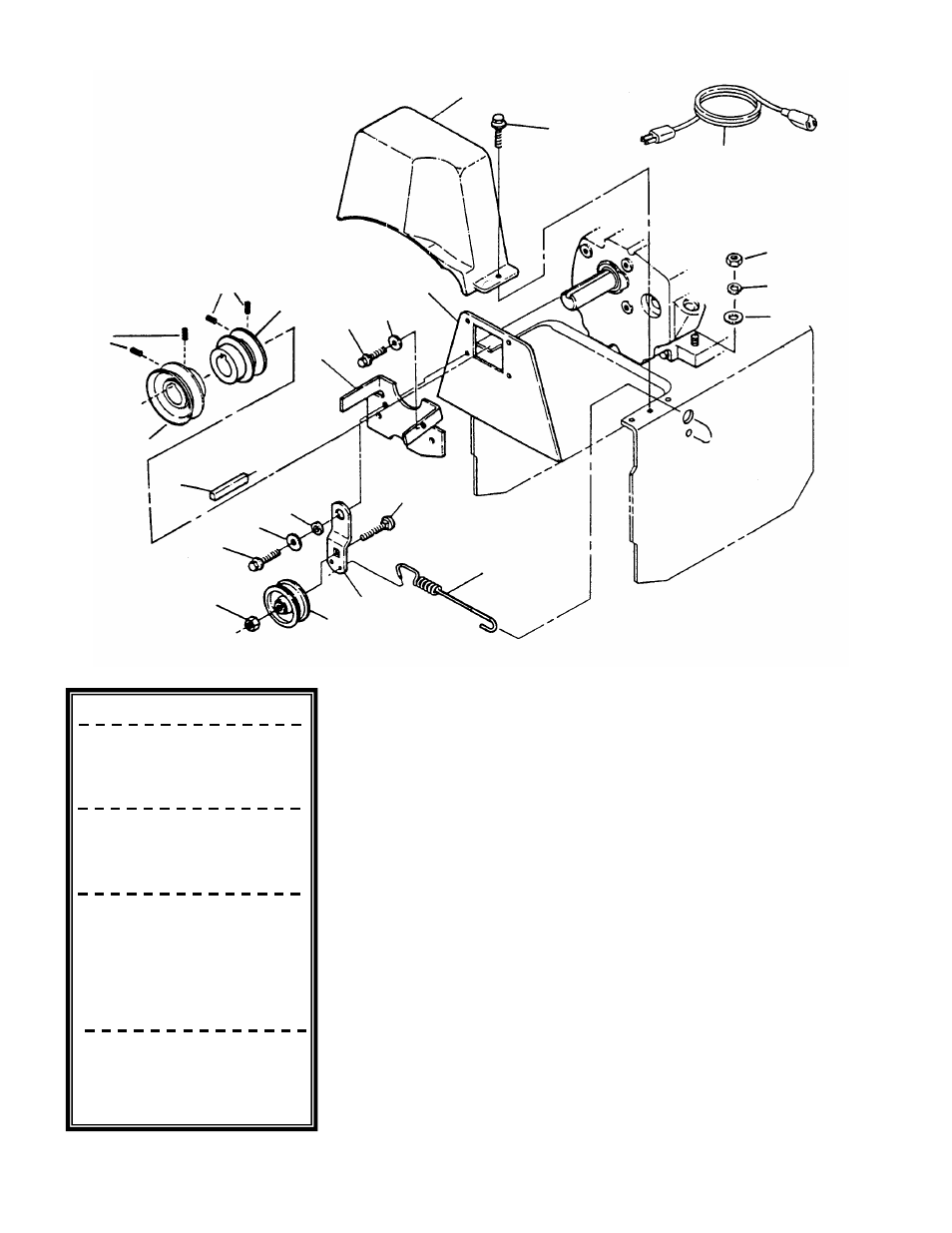

ENGINES, PULLEY, IDLER
ITEM
P/N
DESCRIPTION
1
3-8545
GUARD,
Engine
2
3-2128
ARM,
Idler
3
1-7734
COVER,
Belt
4
9-0196
NUT, 5/16-18 Hex, Grade B or 5 (4)
5
1-0210
KEY, 1/4 x 2" Square
6
1-3850
IDLER
7
2-8212
SPRING,
Idler
8
3-2150
FINGER,
Belt
9
9-1122
SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap (2)
10
9-0954
SCREW, 5/16-18 x 5/16" Socket Head Set (4)
11
9-0791
BOLT, 3/8-16 x 1-1/2" Square Neck Carriage, Grade 2
12
9-1076
WASHER, 5/16 Flat (5)
13
1-3849
SPACER
14
1-6314
WASHER, 3/8 Flat
15
9-1273
SCREW, 5/16-24 x 7/8" Hex Head Cap, Grade 5
16
9-0499
NUT, 3/8-16 Hex Top Lock
17
1-5376
PULLEY,
Blower
18
1-5377
PULLEY,
Traction
19
9-1021
SCREW, 5/16-24 x 3/4" Hex Head Cap, Grade 5
20
1-5368
CORD, 10’ Extension for 110V (10305 & 10305E Models
Only)(Tecumseh Part Number 1A174-17)
--
7-2611
CORD, 8’ Extension for 230V (E9265 & E10305 Models)
21
9-1076
WASHER, 5/16 Flat (4)
22
9-0187
WASHER, 5/16 Split Lock (4)
23
2-8747
MUFFLER GUARD, Tecumseh 8 & 10 HP (not shown)
(Tecumseh Part Number 127-20)
MANUAL No. 06037
LARGE FRAME SNOW THROWER
3
9
20
4
22
21
1
10
10
17
5
18
8
19 12
11
7
2
6
15
14
16
13
ENGINE SPECS
used on:
8 HP Tecumseh
Model
HMSK80
Type 155527V....... 8245, 8265 &
E8265
9 HP Tecumseh
Model
HMSK90
Type 156519D........9265 &
E9265
10 HP Tecumseh
Model
HMSK100
Type 159236W.......10305E &
E10305E
Type
159302W.......N10305E
Type 159426W
10305 &
E10305
11 HP Tecumseh
Model
OHSK110
Type 221721B........ 11305 &
E11305
