REATTACHING THE REFRIGERATOR DOORS
Reattaching the Refrigerator Door

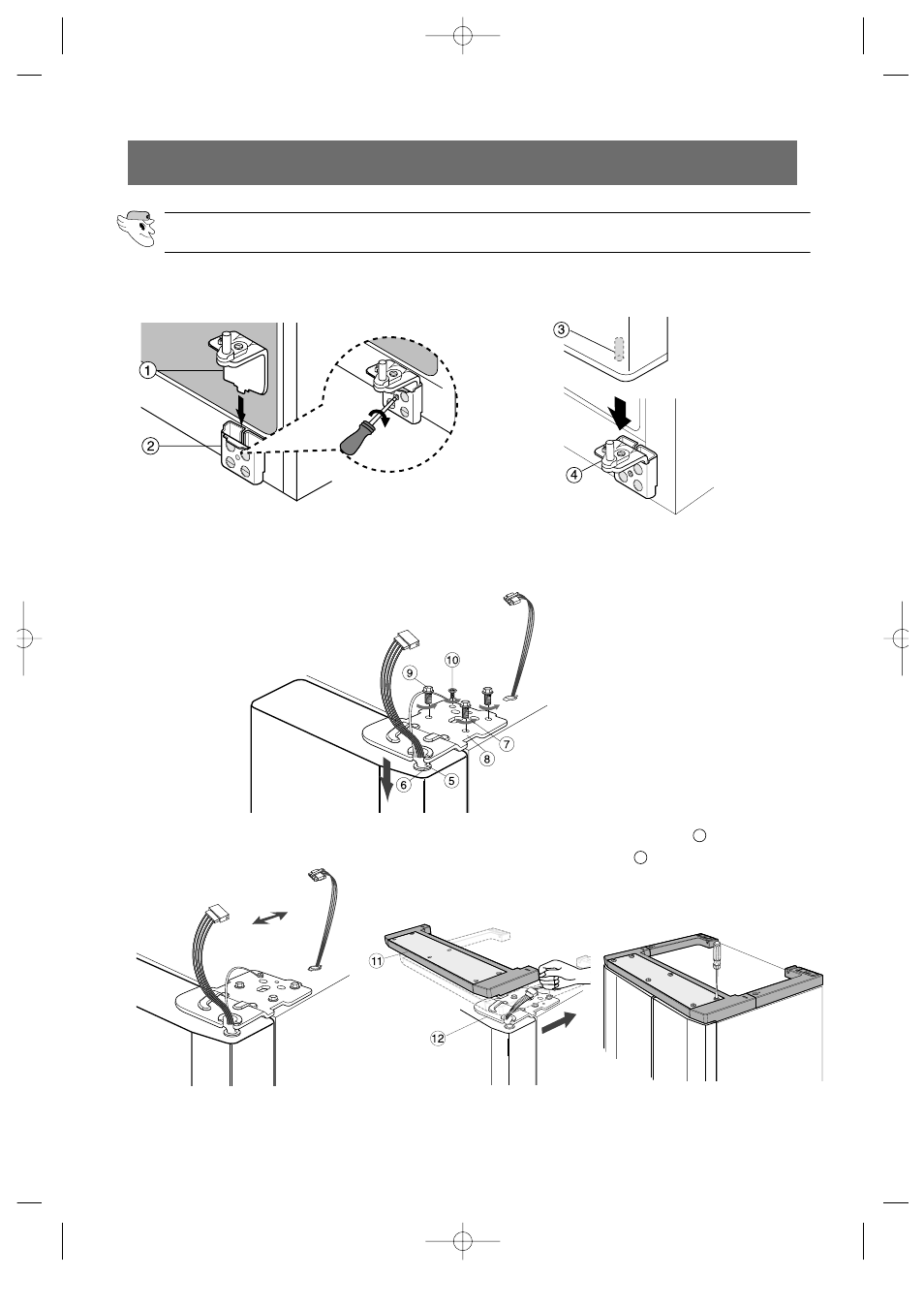

1) Insert the lower hinge ( ➀ ) in the bracket
lower hinge ( ➁ ).
2) Place the hole in the refrigerator door ( ➂ )
over the lower hinge ( ➃ ).
3) Insert the upper hinge shaft ( ➄ ) into the hole ( ➅ ). After levelling the upper hinge hole ( ➆ )
with the hole of the cabinet ( ➇ ). Fasten hinge screws ( ➈ ) and screw ( ➉ ) in the clockwise direction.
4) Connect the wires. 5) Put the front part of the Top table ( ) on the front
part of the upper hinge ( ) and reattach it from
the front part of the Top table first.
