REATTACHING THE REFRIGERATOR DOORS

Reattaching the Freezer Door

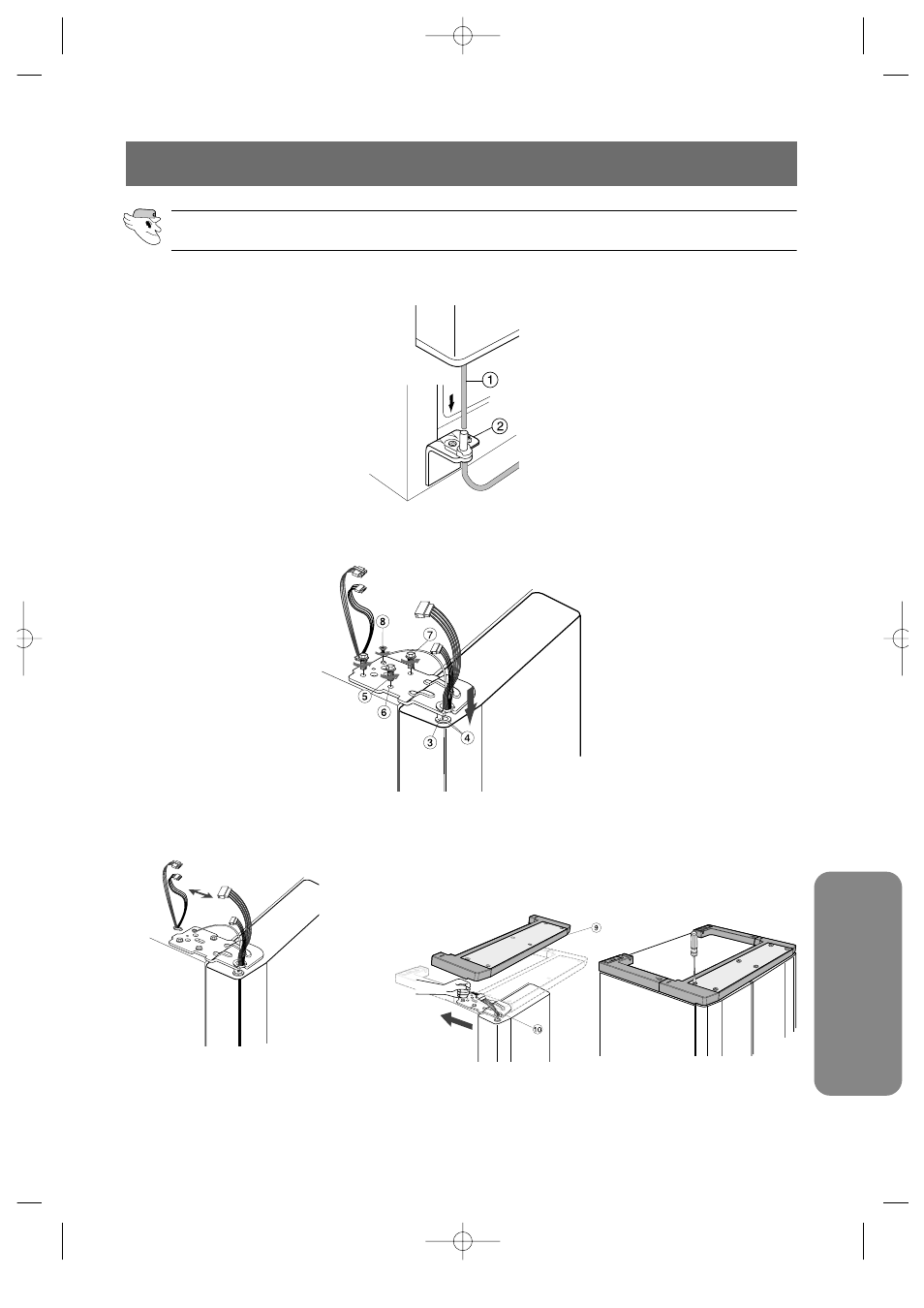

1) Reattach the freezer door by inserting the hose (

➀

) in the lower side of the door into the hole in the lower

hinge (

➁

) and pull the hose down.

2) Insert the upper hinge shaft (

➂

) into the hole (

➃

). After levelling the upper hinge hole (

➄

) with the hole of the

cabinet (

➅

). Fasten bolts (

➆

) and screw (

➇

) in a clockwise direction.

3) Connect the wires.

4) Put the front part of the Top table (

➈

) on the front

part of the upper hinge (

➉

) and reattach from the

front part of the Top table first.
