dB500a Layout

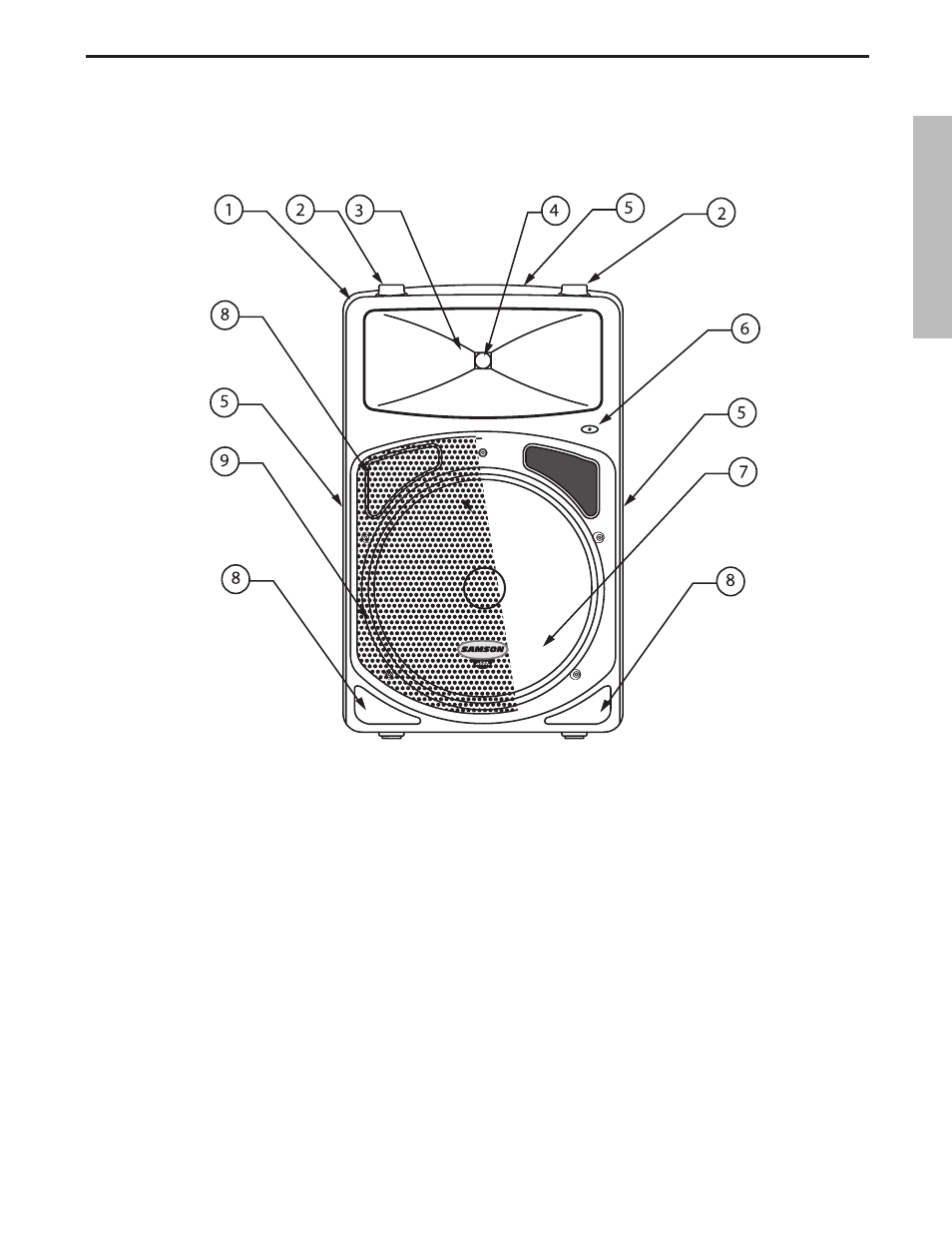

dB500a Front View Layout

1 Enclosure – Rugged polypropylene plastic

enclosure.

2 Stacking Bumper – Gender mating bum-

pers for stacking dB500’s.

3 Wide Dispersion Horn – 1 inch throat, 60

x 90 degree wide dispersion horn provides

extensive coverage and linear off- axis

response.

4 Titanium Compression Driver – Edge-

wound copper voice coil,1.75-inch (44mm),

titanium diaphragm with 1-inch throat

boasting high SPL while sounding smooth

and sweet.

5 Handle – One of three, ultra oversized, rub-

ber grip carry handles.

6 Power LED – Blue Light Emitting Diode illu-

minates indicating the unit is powered on

and ready for operation.

7 15 Inch Driver – Custom designed, heavy-

duty, 15” low frequency driver provides deep

bass.

8 Bass Port – Three precision tuned, low fre-

quency port tubes extend the bass response.

9 Steel Grill – Durable steel grill provides pro-

tection for, and easy access to low frequency

driver.
