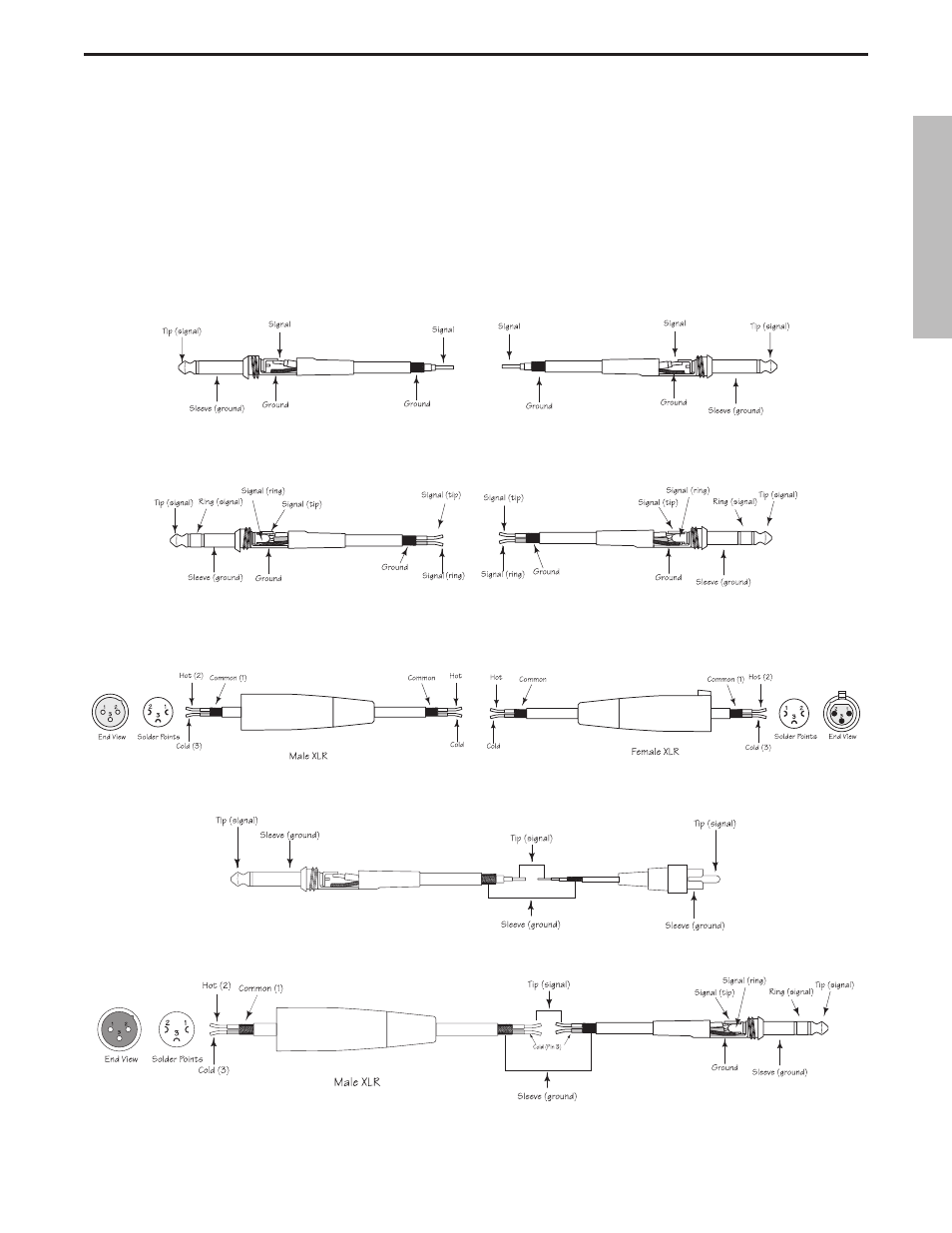

dB500a Wiring Guide
Unbalanced 1/4” Connector
XLR to XLR Balanced
CONNECTING THE dB500a
The are several ways to interface the dB500a to support a variety of applications. The dB500a features balanced inputs
and outputs, so connecting balanced and unbalanced signals is possible.
Balanced TRS 1/4” Connector
Unbalanced 1/4” Connector to RCA
XLR to Balanced 1/4-Inch
