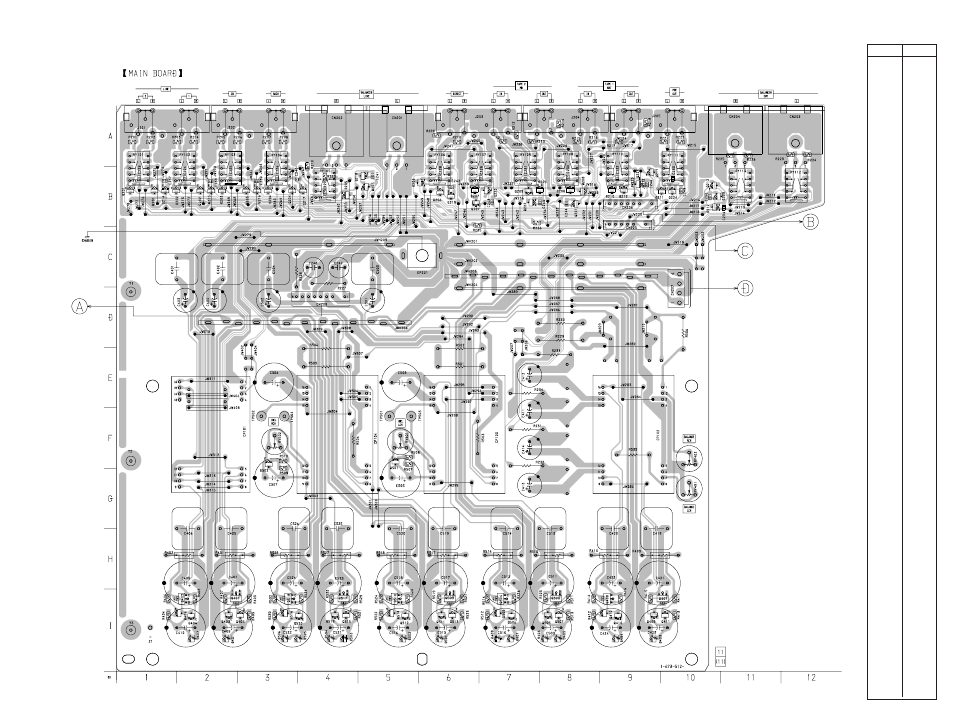

3-5. PRINTED WIRING BOARD – MAIN SECTION –
• Refer to page 5 for Circuit Boards Location. Ref. No Location
D201 B-1
D202 B-1
D203 B-2
D204 B-3
D205 B-4
D206 B-5
D207 B-6
D208 B-8
D209 B-8
D210 B-7
D211 B-10
D212 B-10
D401 I-2
D402 I-2
D403 I-9
D404 I-9
D405 I-8
D406 I-8
D407 I-7
D408 I-7
D501 I-6
D502 I-5
D503 I-4
D504 I-4
D505 I-3
D506 I-4
Q201 B-1
Q202 B-2
Q203 B-3
Q204 B-3
Q205 B-5
Q206 B-6
Q207 B-6
Q208 B-8
Q209 B-7
Q210 B-7
Q211 B-7
Q212 B-10
Q214 B-1
Q215 B-2
Q216 B-3
Q217 B-4
Q218 B-5
Q219 B-6
Q220 B-7
Q221 B-8
Q222 B-7
Q223 B-7
Q224 B-10
Q225 B-11
Q401 I-2
Q402 I-2
Q403 I-2
Q404 I-2
Q405 I-3
Q406 I-2
Q407 I-10
Q408 I-9
Q409 I-9
Q410 I-9
Q411 I-10
Q412 I-9
Q501 F-5
Q502 F-3
Q503 I-8
Q504 I-7
Q505 I-8
Q506 I-7
Q507 I-8
Q508 I-7
Q509 I-6
Q510 I-5
Q511 I-6
Q512 I-5
Q513 I-6
Q514 I-5
Q515 I-4
Q516 I-3
Q517 I-4
Q518 I-3
Q519 I-4
Q520 I-4
• Semiconductor
Location
(Page 11)
(Page 11)
(Page 11)
(Page 11)
VOL
BOARD
SW L
BOARD
SW L
BOARD
PS
BOARD
