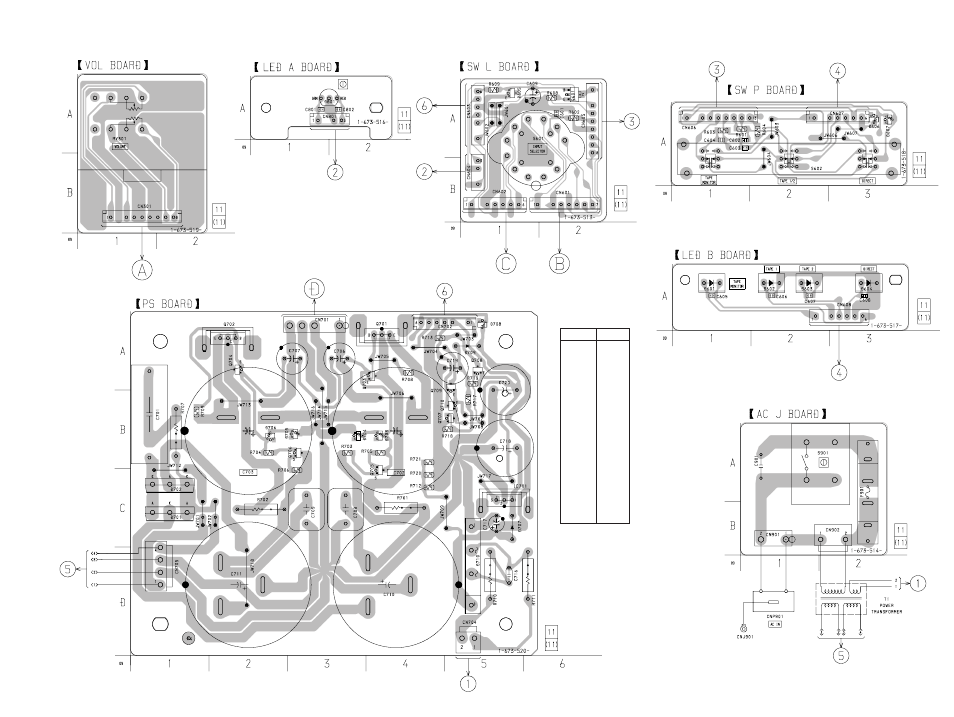

3-7. PRINTED WIRING BOARD – POWER SECTION –
• Refer to page 5 for Circuit Boards Location.
(Page 9)
MAIN BOARD (Page 9) (Page 9)
MAIN
BOARD
MAIN
BOARD
(Page 9)
MAIN
BOARD
F H 2
F H 1
Ref. No Location
D701 C-1
D702 C-1
D703 B-4
D704 B-3
D705 B-3
D706 B-2
D707 C-5
D708 A-5
D709 A-5
D710 D-5
IC701 C-5
Q701 A-4
Q702 A-2
Q703 A-4
Q704 A-2
Q705 C-4
Q706 B-3
Q707 B-5
Q708 A-5
Q709 A-5
Q710 B-5
• Semiconductor
Location
