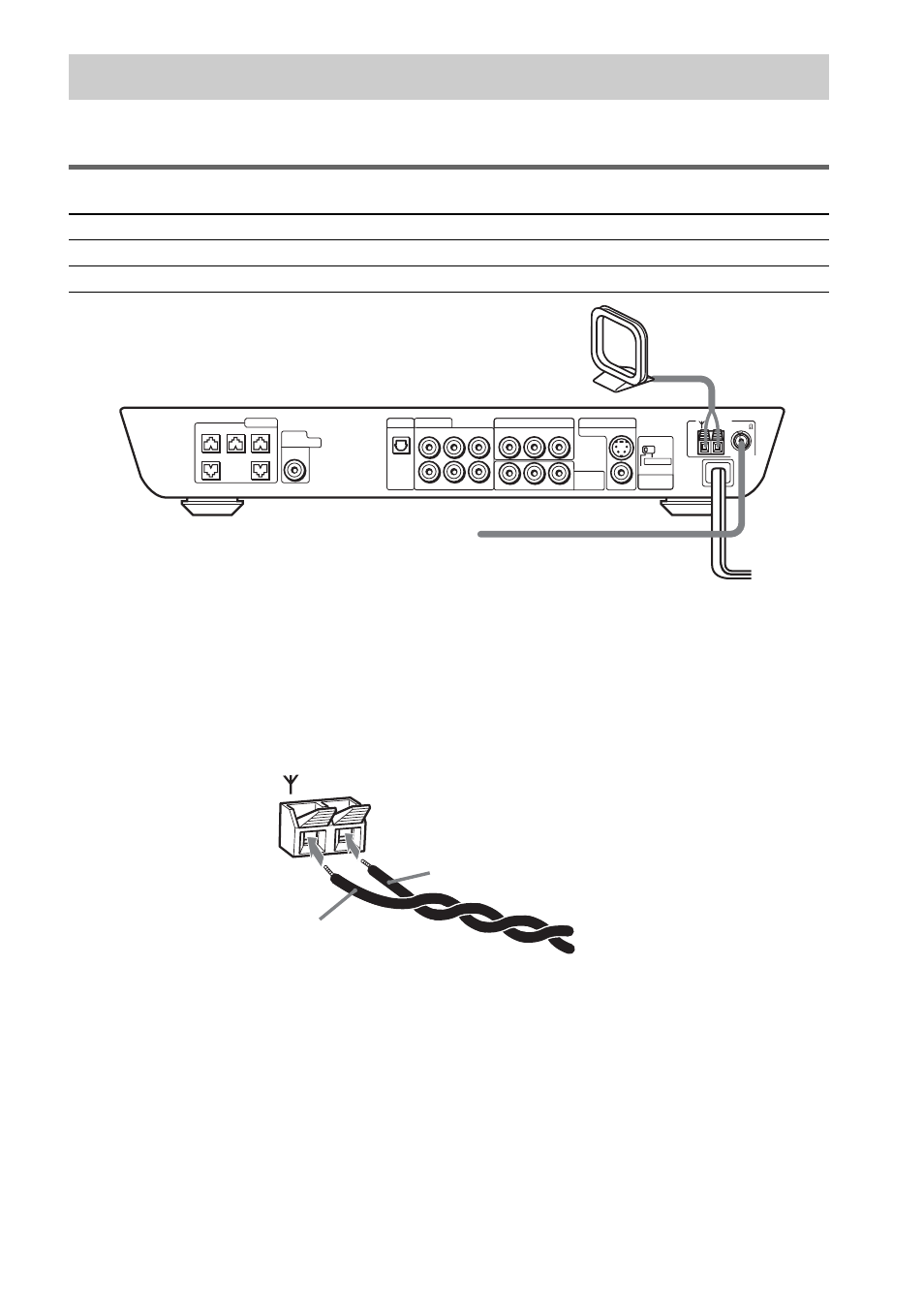

Connect the supplied AM/FM aerials for listening to the radio.
Terminals for connecting the aerials
Notes
• To prevent noise pickup, keep the AM loop aerial away from the system and other components.
• Be sure to fully extend the FM wire aerial.
• After connecting the FM wire aerial, keep it as horizontal as possible.
Tip
When you connect the supplied AM loop aerial, the cord (A) and the cord (B) can be connected in either terminal.
Step 2: Aerial Hookups
Connect the To the
AM loop aerial AM terminals
FM wire aerial FM 75
Ω
COAXIAL jack
COAXIAL
FM 75
OPTICAL
DIGITAL
IN
AM
CENTER FRONT L FRONT R
SURR L SURR R
SPEAKER
VIDEO OUT AUDIO OUT
VIDEO IN AUDIO IN
R L
R L
VIDEO 1 VIDEO 2
VIDEO IN AUDIO IN
R L
MONITOR OUT
COMPONENT
VIDEO OUT
Y P B /C B P R /C R
VIDEO 2
SCAN SELECT
SELECTABLE
INTERLACE
COMPONENT
VIDEO OUT VIDEO
S VIDEO (DVD ONLY) SUB
WOOFER
AUDIO
OUT
AM loop aerial
FM wire aerial
AM
A
B
