Ge
tting Star

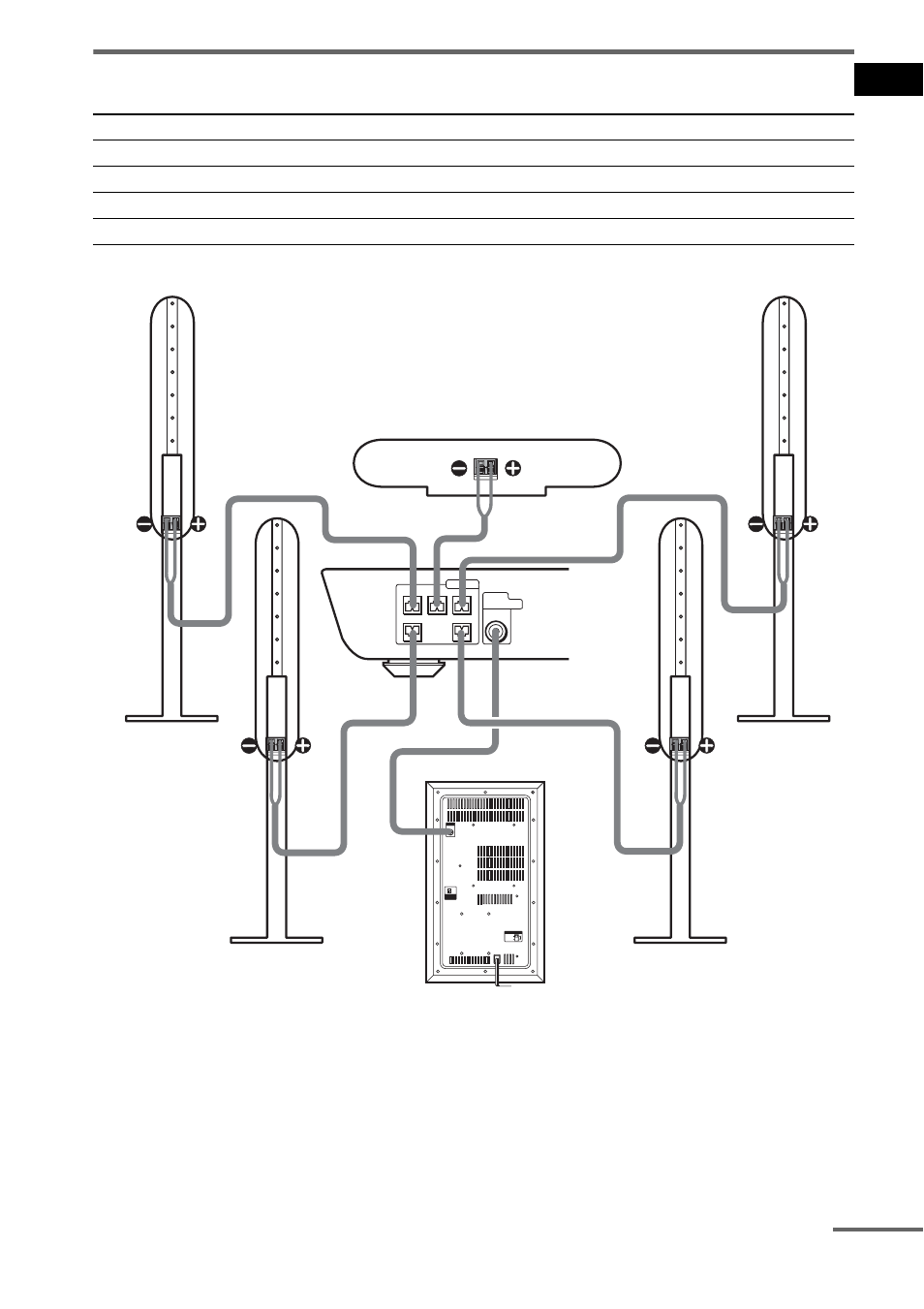

Terminals for connecting the speakers

Note on placing speakers

Use caution when placing the subwoofer or a speaker stand (not supplied) that is attached with the
front/surround speakers on a specially treated (waxed, oiled, polished, etc.) floor, as staining or
discoloration may result.

Connect the

To the

Front speakers

SPEAKER FRONT L (white) and R (red) jacks

Surround speakers

SPEAKER SURR L (blue) and R (grey) jacks

Centre speaker

SPEAKER CENTER (green) jack

Subwoofer

SUB WOOFER AUDIO OUT jack

VOLTAGE SELECTOR

POWER

SAVE

AUTO
OFF

220 - 240V

110 - 120V

LINE

CENTER

FRONT L

FRONT R

SURR L

SURR R

SPEAKER

SUB

WOOFER

AUDIO

OUT

Front speaker (R)

Centre speaker

Front speaker (L)

Surround speaker (R)

Subwoofer

Surround speaker (L)

continued
