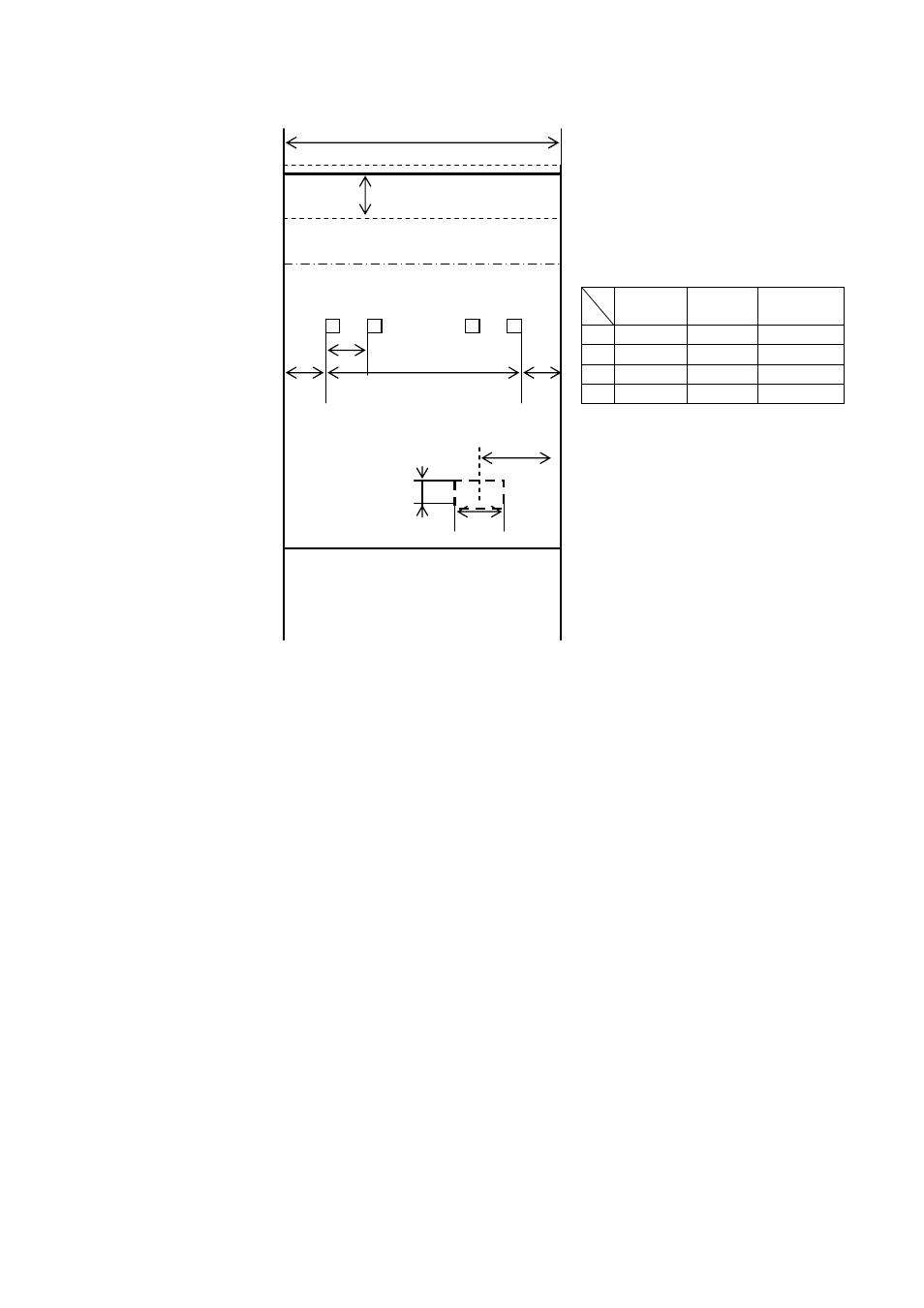

2.2 Printing area and cutter position
Cutter position (Cutting place)
A
TOP 0.0mm
Cutter position 3.0mm
Unprintable area
Head position 17.5mm
Sensor position 28.5mm
1 2 D
0.125mm
B C B
9.1+-0.5mm
Black mark printing
5.3+-0.2mm min.
10.3+-0.2 mm min.
NP-215
NP-225
NP-325 NP-415W
A 60mm 80mm 112mm
B 3mm 4mm 4mm
C 54mm 72mm 104mm
D 432dot 576dot 832dot
1. Black mark printing is used
when preprint paper is formatted
and used.
2. Black mark printing is printed on
the backside with black ink.
3. Do not print around the black
mark printing area with dark ink.
