Sony DAV-DZ530 - Manual (Page 25)

Ge
tti
ng Sta
rte
d –
AD
V
ANCED –
25 GB
Sends the played back DVD image to the connected TV.
Check the jacks of your TV, and choose connection method A, B, or C. Picture quality improves in
order from A (standard) to C (HDMI).
* HDMI (high-definition multimedia interface)
The system incorporates High-Definition Multimedia Interface (HDMI TM ) technology.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMI Licensing LLC.

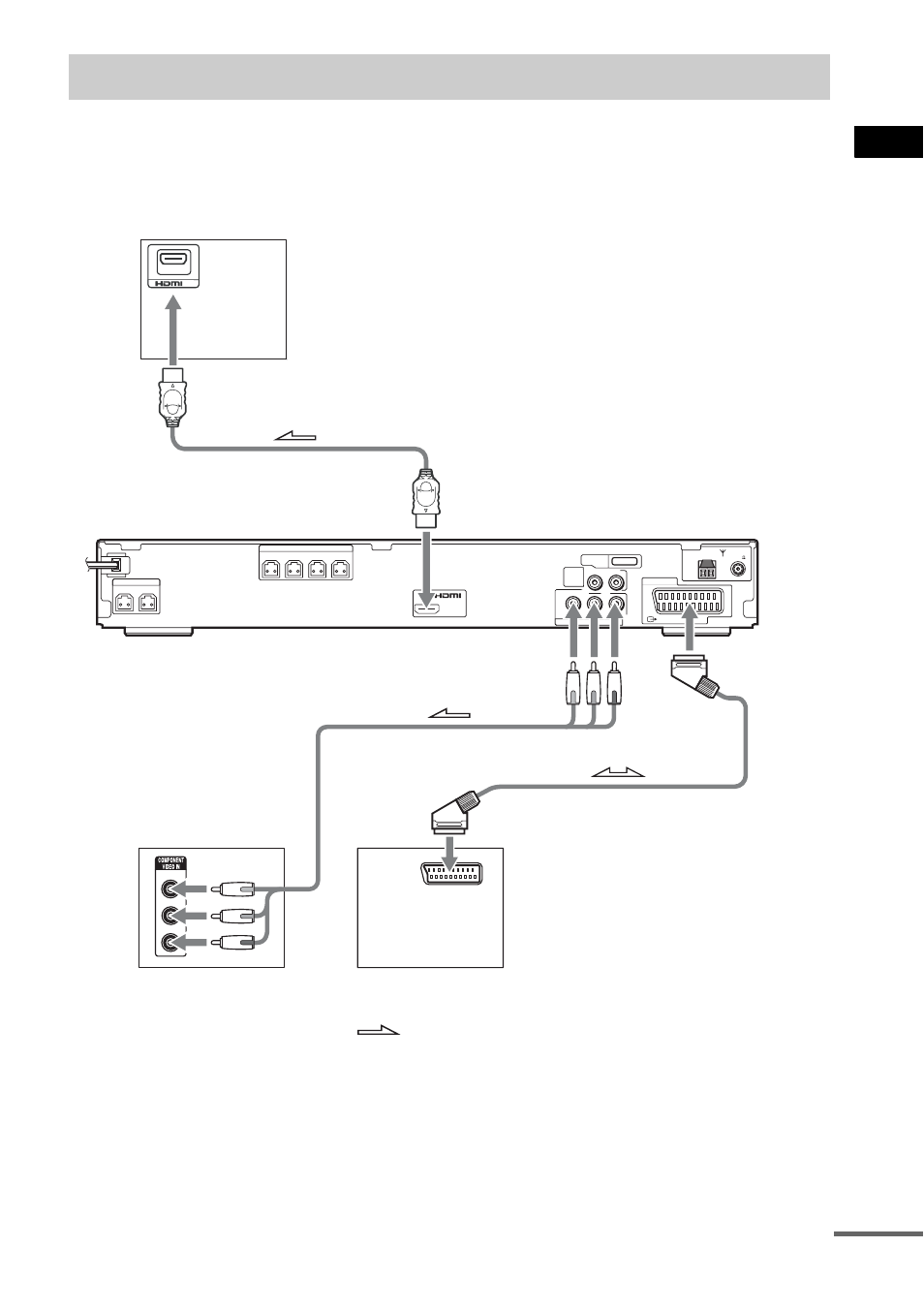

Connecting the TV (Advanced)
COAXIAL
AM FM75
EURO AV
OUTPUT(TO TV)
(DVD ONLY)
OUT
FRONT R
CENTER WOOFER
FRONT L SUR R SUR L
SPEAKER
SPEAKER
DMPORT
LINE
COMPONENT VIDEO OUT
R L AUDIO IN
(DVD ONLY)
Y P B /C B P R /C R
Y
P B /C B
P R /C R
IN
A B
TV with EURO AV INPUT jack
To EURO AV
T OUTPUT
(TO TV)
To HDMI* OUT
:Signal flow
TV with HDMI* IN jack
C
To COMPONENT
VIDEO OUT
TV with COMPONENT
VIDEO IN jacks
continued
