The following is the basic connection of the unit to the speakers and TV. For other TV connections, see
page 25. For other component connection, see page 29.
To accept progressive signals, see page 27.

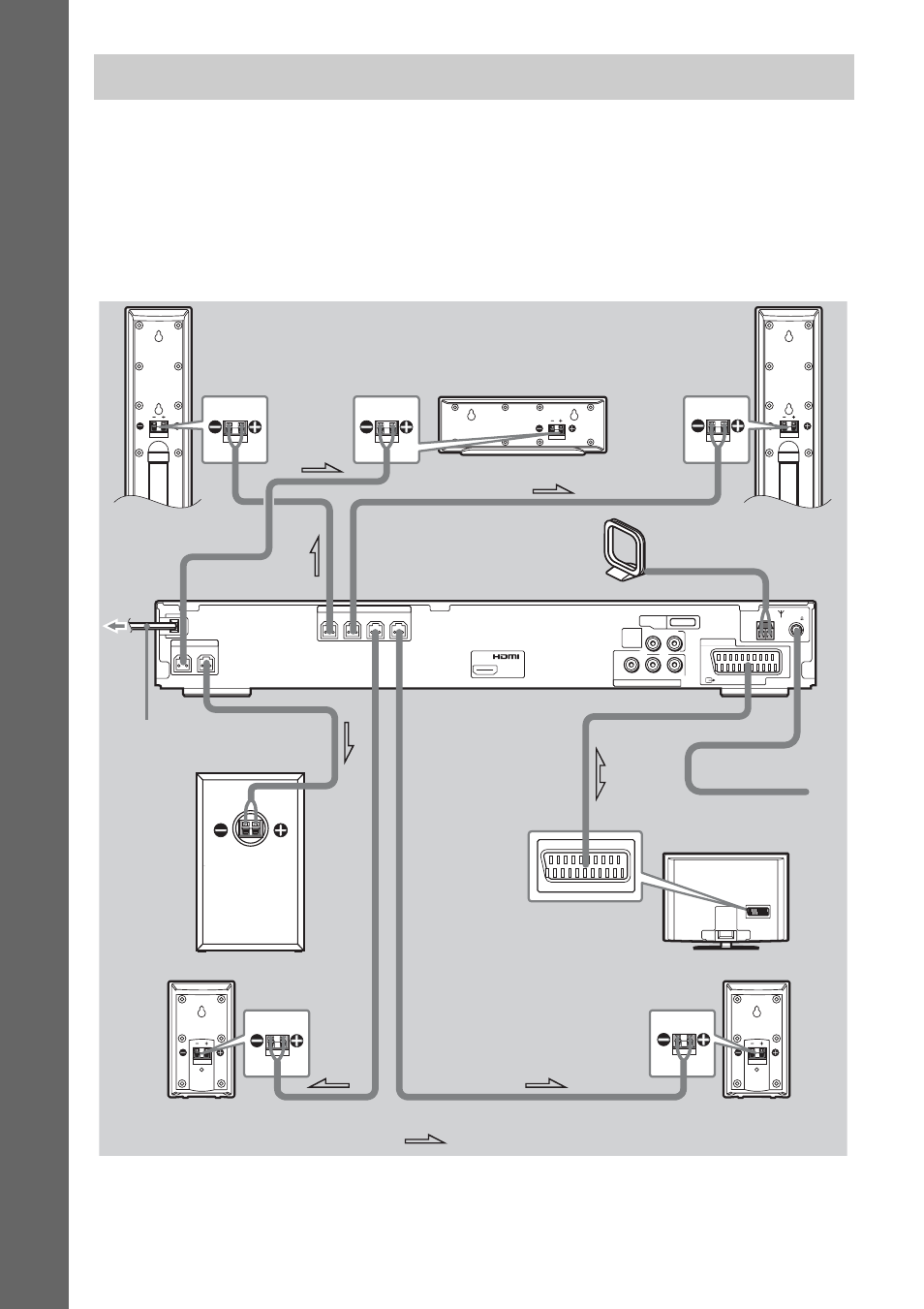

Refer to the connection diagram below, and read the additional information from 1 to 4 on the
following pages.
DAV-DZ530
Step 2: Connecting the System and TV
COAXIAL
AM FM75
EURO AV
OUTPUT(TO TV)
(DVD ONLY)
OUT
FRONT R
CENTER WOOFER
FRONT L SUR R SUR L
SPEAKER
SPEAKER
DMPORT
LINE
COMPONENT VIDEO OUT
R L AUDIO IN
(DVD ONLY)
Y P B /C B P R /C R
AM loop antenna (aerial)
Subwoofer
AC power cord (mains lead)
FM wire antenna
(aerial)
TV
Front speaker (R)
Center speaker
Front speaker (L)
Surround speaker (R) Surround speaker (L)
:Signal flow
