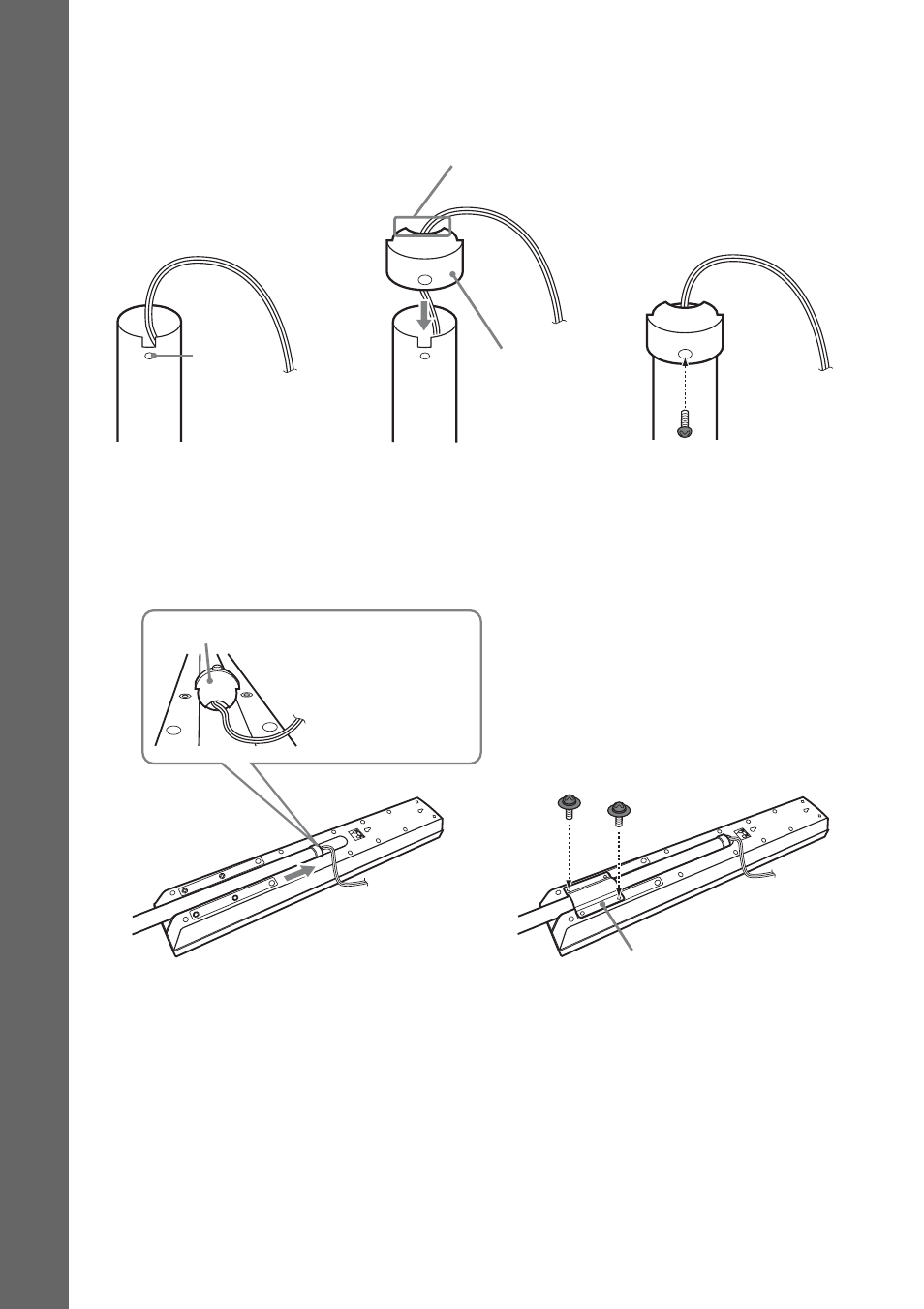

Attach the post cover to the other end of the post.
Orient the slot toward you, attach the post cover so that the slot of the post engages with the tab of
the post cover, then secure with the screw.
3
Lay the post in the slot of the speaker, slide the post to the end of the slot, then secure
the post with the mounting plate and screws.
Select the speaker whose color of the jack on the rear panel of speaker matches the color tube of
the speaker cord.
Upper part of the
post
, ,
Thread the speaker cord through
the hole of the post cover.
Screw (small,black)
Speaker cord
Post cover
Hole
Be careful the
orientation of the
post cover when
placing the post.
,
Rear of the speaker
Secure 2 screws (large, with
washer) in criss-cross pattern.
Mounting plate
Post cover
