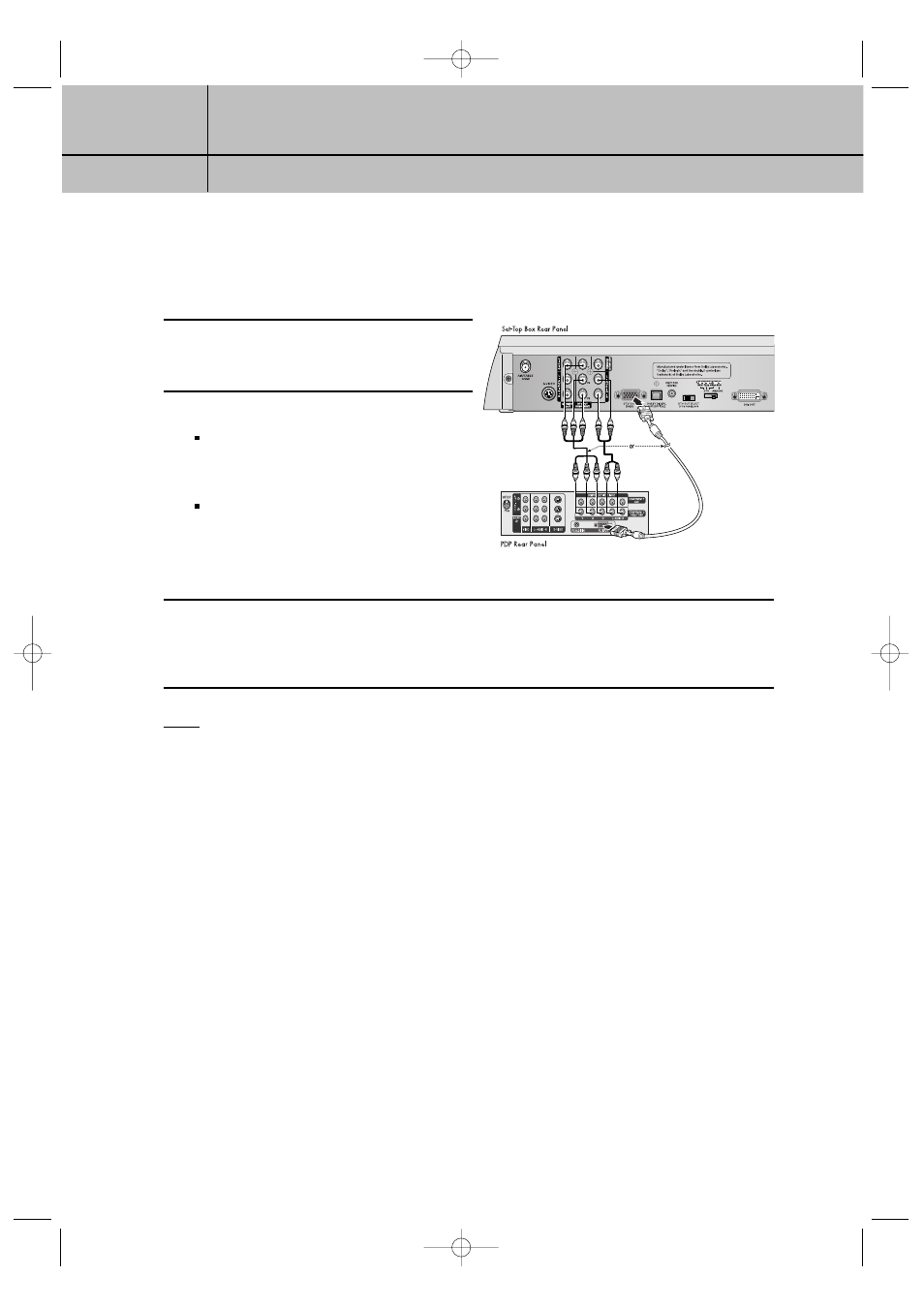

Connecting the Set-Top Box to a TV Set
Plasma Display Panel (PDP)
1 Connect an antenna cable to the RF input
jacks on the Set-Top Box.
2 Connect the Video Cables.
YP
B
P
R
format: Connect a video cable
between the DTV OUT(COMPONENT) jacks
on the Set-Top Box and the DTV INPUT jacks
on the PDP.
RGB format: Connect a video monitor
cable between the DTV OUT (RGB format)
jack on the Set-Top Box and the RGB VIDEO
IN jack on the PDP.
3 Connect the Audio Cables
Connect an audio cable between the Lt/Rt AUDIO OUT jacks on the Set-Top Box and the L/R
AUDIO IN jacks on the PDP.
NOTE
You must set “DTV OUT SELECT (YP
B
P
R
/RGB, DVI)” properly for the PDP INPUT jack.
CHAPTER ONE
Connecting The Set Top Box
1 1
13
