26

Barracuda Green SATA Product Manual, Rev. D

Configuring and Mounting the Drive

www.seagate.com

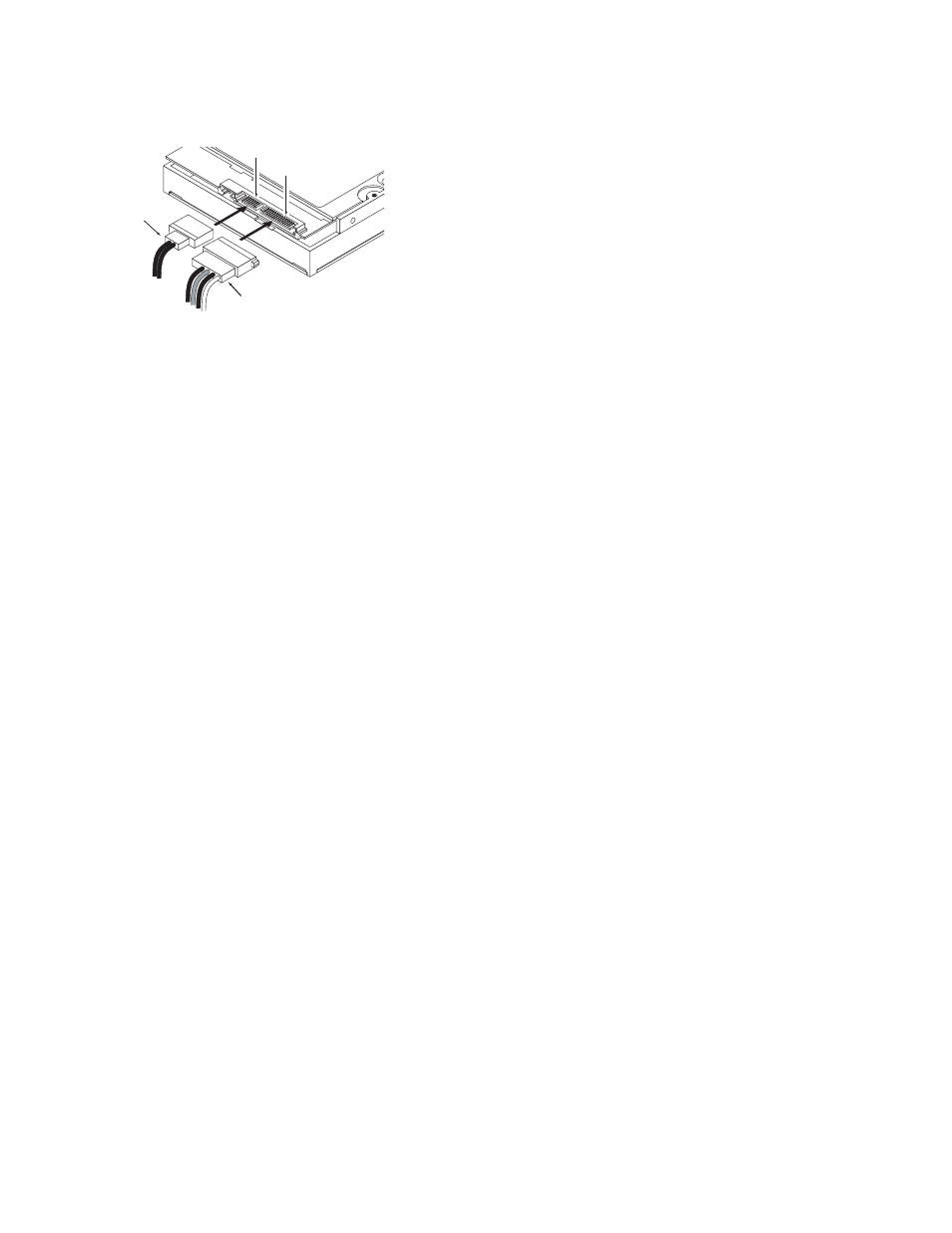

Figure 3 Attaching SATA cabling

Each cable is keyed to ensure correct orientation. Barracuda Green drives support latching SATA connectors.

3.4

Drive mounting

You can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the
bottom-mounting holes. See

Figure 4

for drive mounting dimensions. Follow these important mounting

precautions when mounting the drive:

• Allow a minimum clearance of 0.030 in (0.76mm) around the entire perimeter of the drive for cooling.

• Use only 6-32 UNC mounting screws.

• The screws should be inserted no more than 0.150 in (3.81mm) into the bottom or side mounting holes.

Do not overtighten the mounting screws (maximum torque: 6 in per lb).

Power cable

Signal cable

Signal connector

Power connector
