Getting Started
10
1
Connecting the Network Interface Cable to the Network
Connect the machine to the network using optional Network Interface Board
Type 1018.
Follow these steps to connect the machine.
A
Confirm that you have the correct cable.
B
Confirm that the machine is turned off.
C

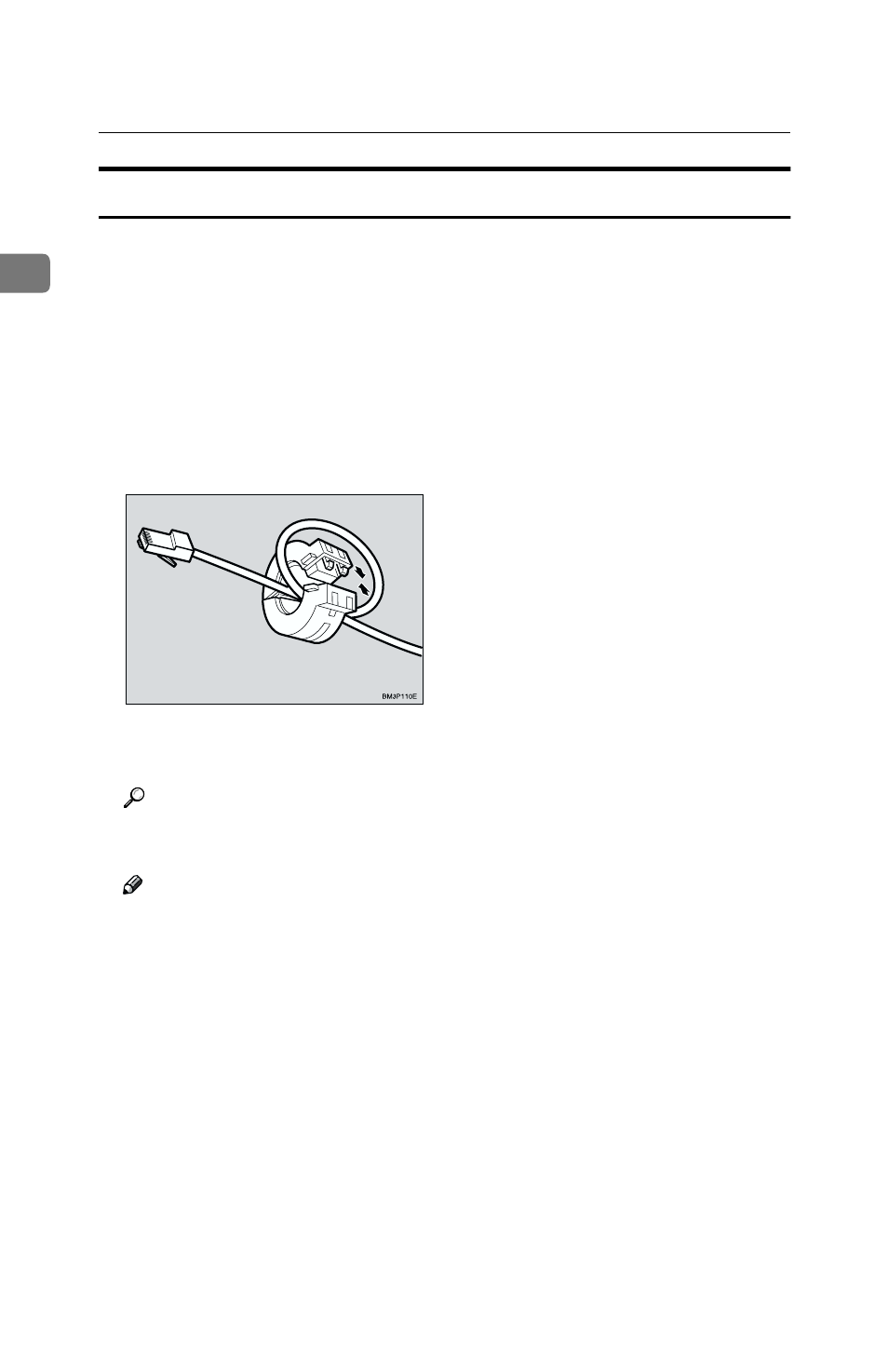

Loop the network cable. The loop should be about 15cm (6”) from the end
of the cable on the end closest to the printer.
D
Attach the ferrite core to the loop.
E
Attach the network cable to the 10BASE-T/100BASE-TX port on the ma-
chine.
Reference
See p.8 “Connecting the Machine” to confirm the position of the 10BASE-
T/100BASE-TX port.
Note
❒ Confirm that the cable is connected to the 10BASE-T/100BASE-TX port.
F
Connect the other end of the cable to the network.
