Model W1784 (Mfg. Since 2/07)
-5-
The Model W1784 is designed to be
operated at 70-100 PSI using clean,
dry, regulated, compressed air.
Do not
exceed the 120 PSI maximum pressure
for your model.
Before using your stapler, regulate the
air pressure to find the optimum setting
within the specified operating range.
Start by testing the stapler at a low
setting, then increase the air pressure as
needed for satisfactory results.
An in-line filter/lubricator/regulator unit
can be installed as depicted in
Figure 1.
This filter/lubricator/regulator unit
will protect your tool from damaging
water build-up, allow you to adjust and
maintain regulated air pressure, and
save you the inconvenience of having to
manually lubricate your tool every time
you use it.
If you plan on installing a filter/
lubricator/regulator unit in your
compressed air system, always follow the
connection instructions that come with
the unit.
Quick
Connector
Quick
Coupler
Air Hose
Quick
Coupler
Quick
Connector
Lubricator
Filter
Regulator
Air
Compressor
Your
Tool

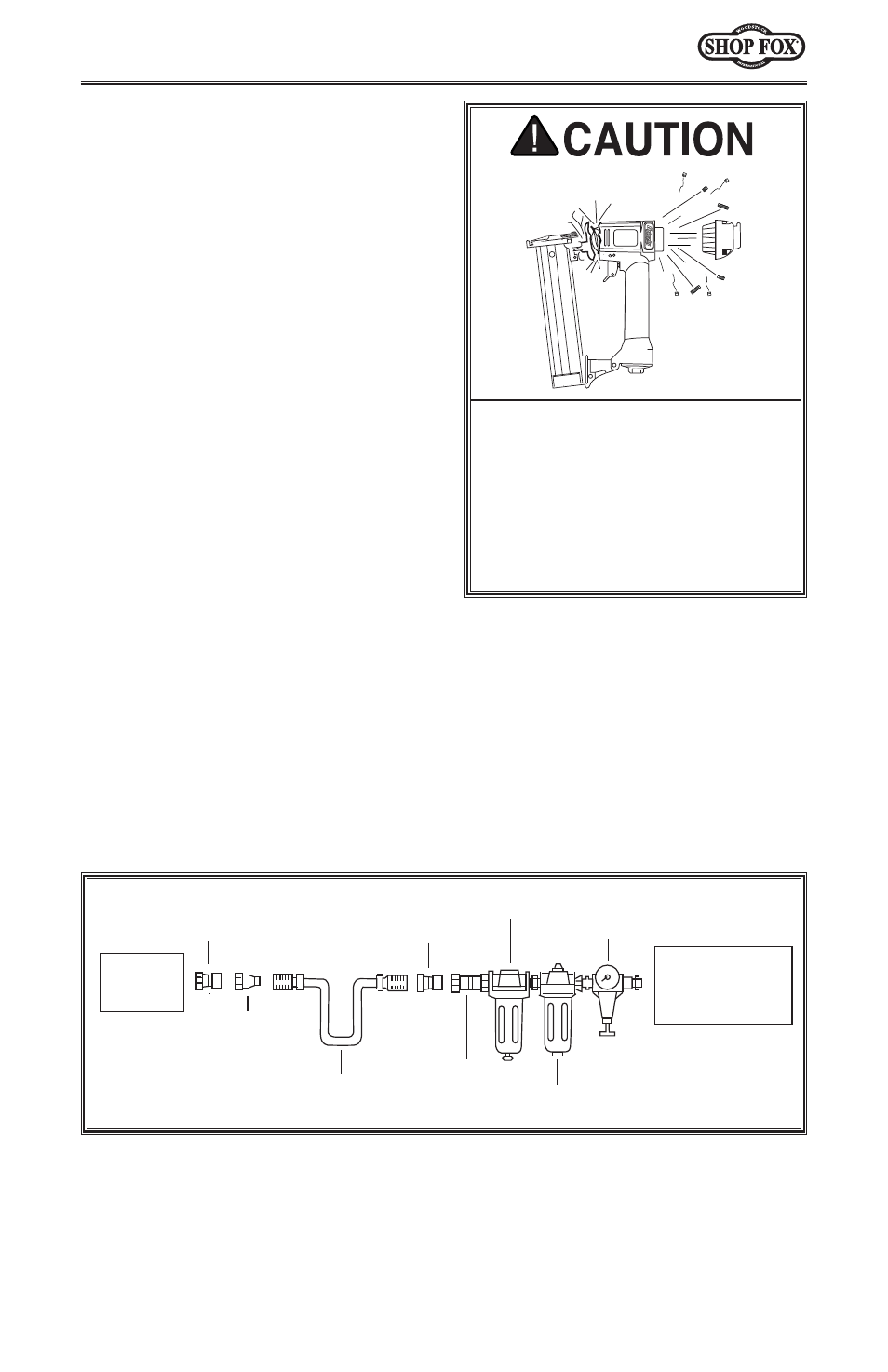

Figure 1. Typical filter/lubricator/regulator installation order.
Compressed Air System
Exceeding the maximum permissible
operating pressure may damage the
stapler and cause it to malfunction.
To protect yourself from personal
injury, DO NOT allow the air pressure
to exceed the recommended
pressure for this stapler!
