Model W1784 (Mfg. Since 2/07)
-9-
3. The jammed staple should be visible
in the discharge area.
— If the jammed staple can be
removed with needle nose pliers,
do so and continue to
Step 7.
— If you cannot remove the jammed
staple, then continue with Step 4.
4. Use the 4mm hex wrench and remove
the four cap screws and lock washers
that secure the magazine to the
stapler (see
Figure 4).
Note: It may be necessary to remove
the base plate to pull the magazine
out.
7. Throw the damaged staple away and
insert a new staple stick that only
contains clean, undamaged staples.
DO NOT use dirty or damaged staples!
Replacing Pistons/
O-Rings
Under heavy use, the piston or O-rings
may wear out. Replacement is quick and
easy. Contact your authorized Shop Fox
dealer to obtain the Piston Repair Kit
(Part Number X1784068) or Complete
O-Ring Kit (Part Number X1784071).
To replace the piston and O-rings, do
these steps:
1. DISCONNECT STAPLER FROM THE AIR
SUPPLY!
2. Remove all the staples from the
magazine.
3. Use the 4mm hex wrench and remove
the four cap screws and lock washers
that secure the magazine to the
stapler (see
Figure 4).
Note: It may be necessary to remove
the base plate to pull the magazine
out.
Always disconnect stapler from air
whenever servicing! During main-
tenance, a stapler connected to
air may fire accidentally, causing
serious personal injury!

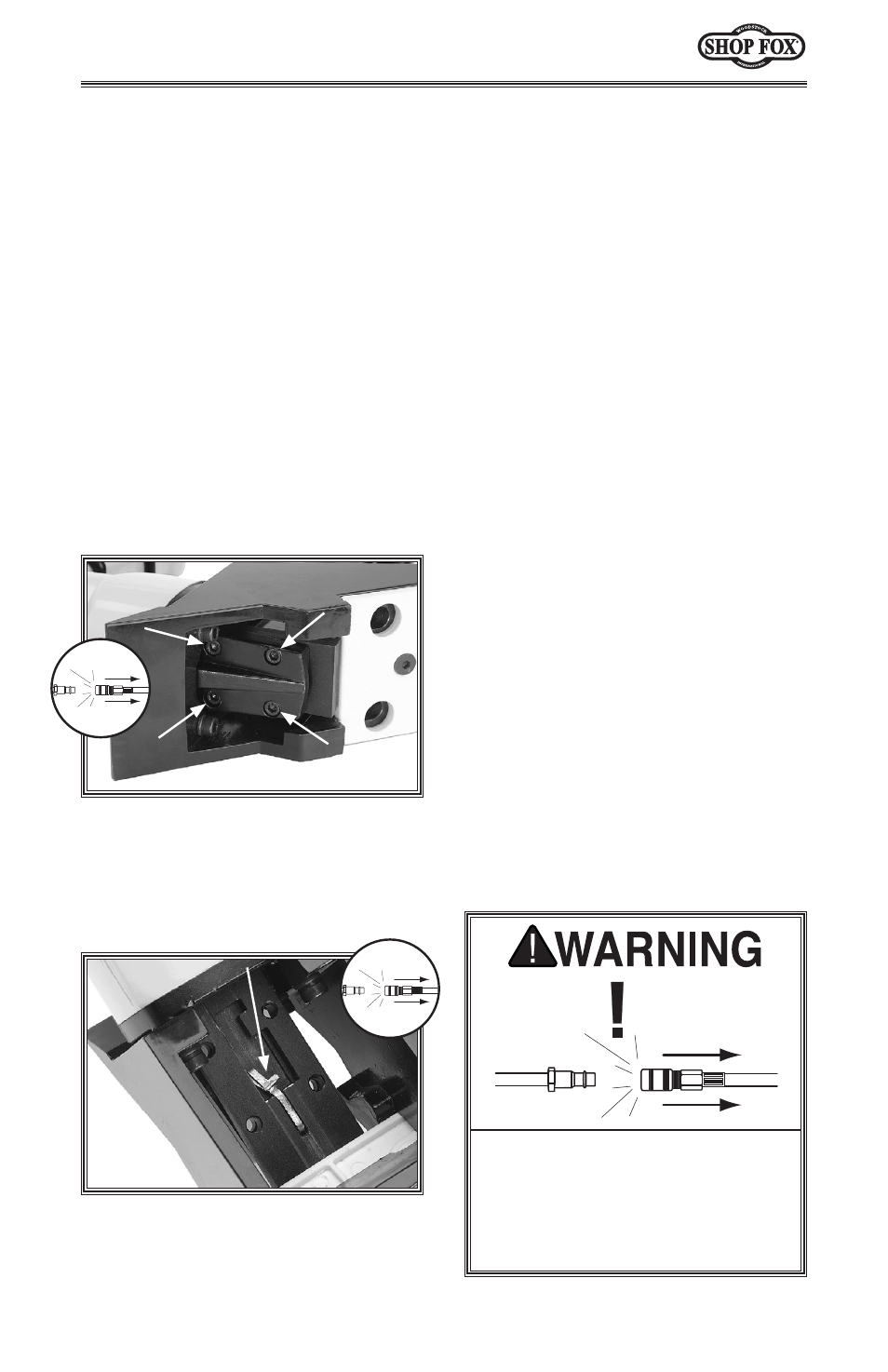

Figure 4. Location of cap screws securing
the magazine to the stapler.
5. Remove the jammed staple from
inside the discharge area with a pair
of need nose pliers (see
Figure 5).
Figure 5. Jammed staple in discharge
area.
6. Re-install the magazine.
