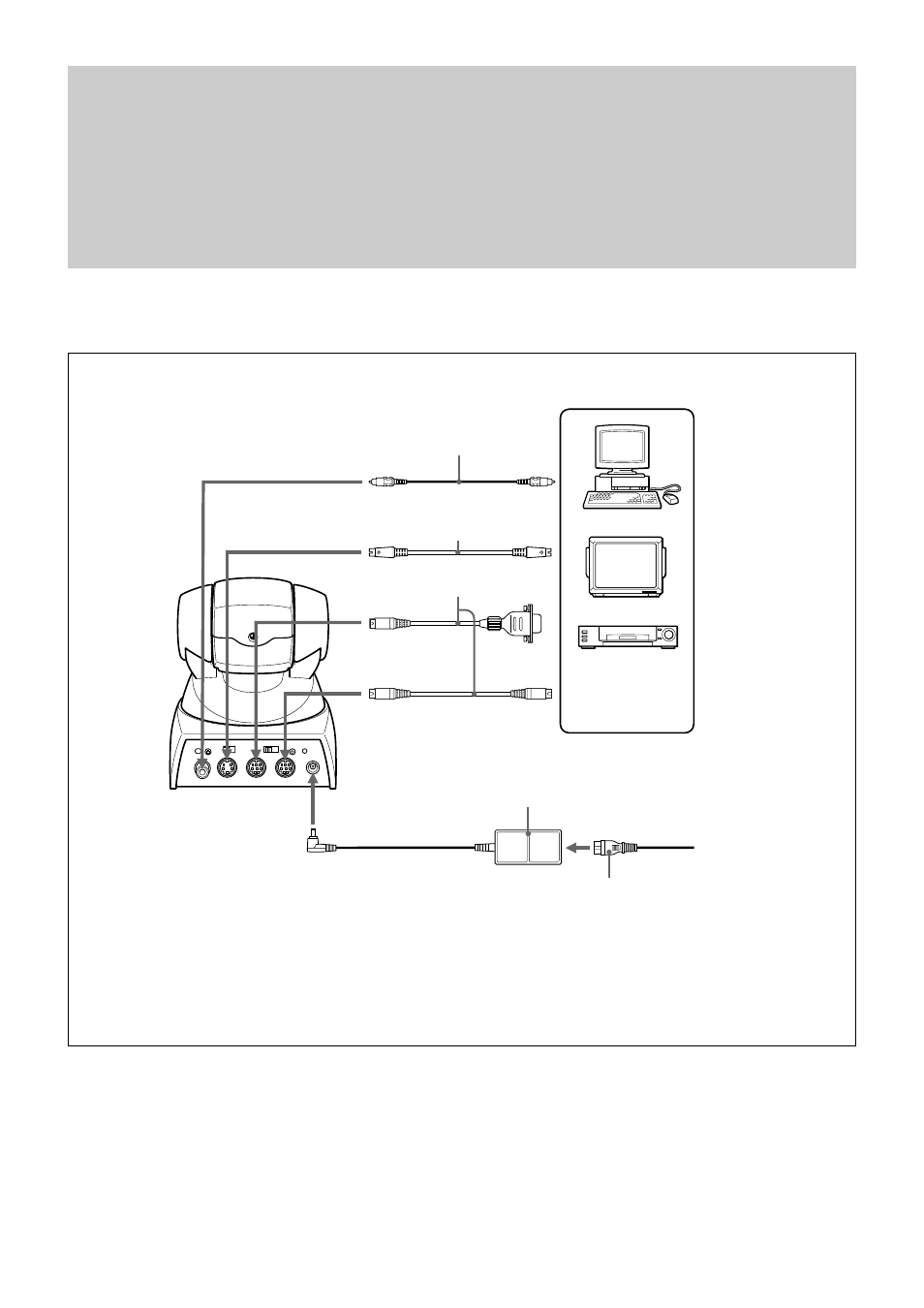

Connection
Connection
1) When the camera is connected to a computer with a VISCA cable (RS-232C, cross type), you can operate
the camera with the computer. To obtain a cable, consult the dealer where you bought your camera.
Computer, TV or
VCR with a
video input jack
Video cable
(not supplied)
to Video
input
to VIDEO S-Video cable
(1-751-416-11
not supplied)
to S VIDEO
to
S-Video
input
VISCA cable
(not supplied)
1)
to
RS-232C
to VISCA IN
to VISCA OUT
To VISCA IN of
other EVI-D100/Ps
(when connecting to
more than one camera)
AC power adaptor
MPA-AC1 (supplied)
to DC IN 12V
to AC outlet
Power cord
(supplied)
