6
3

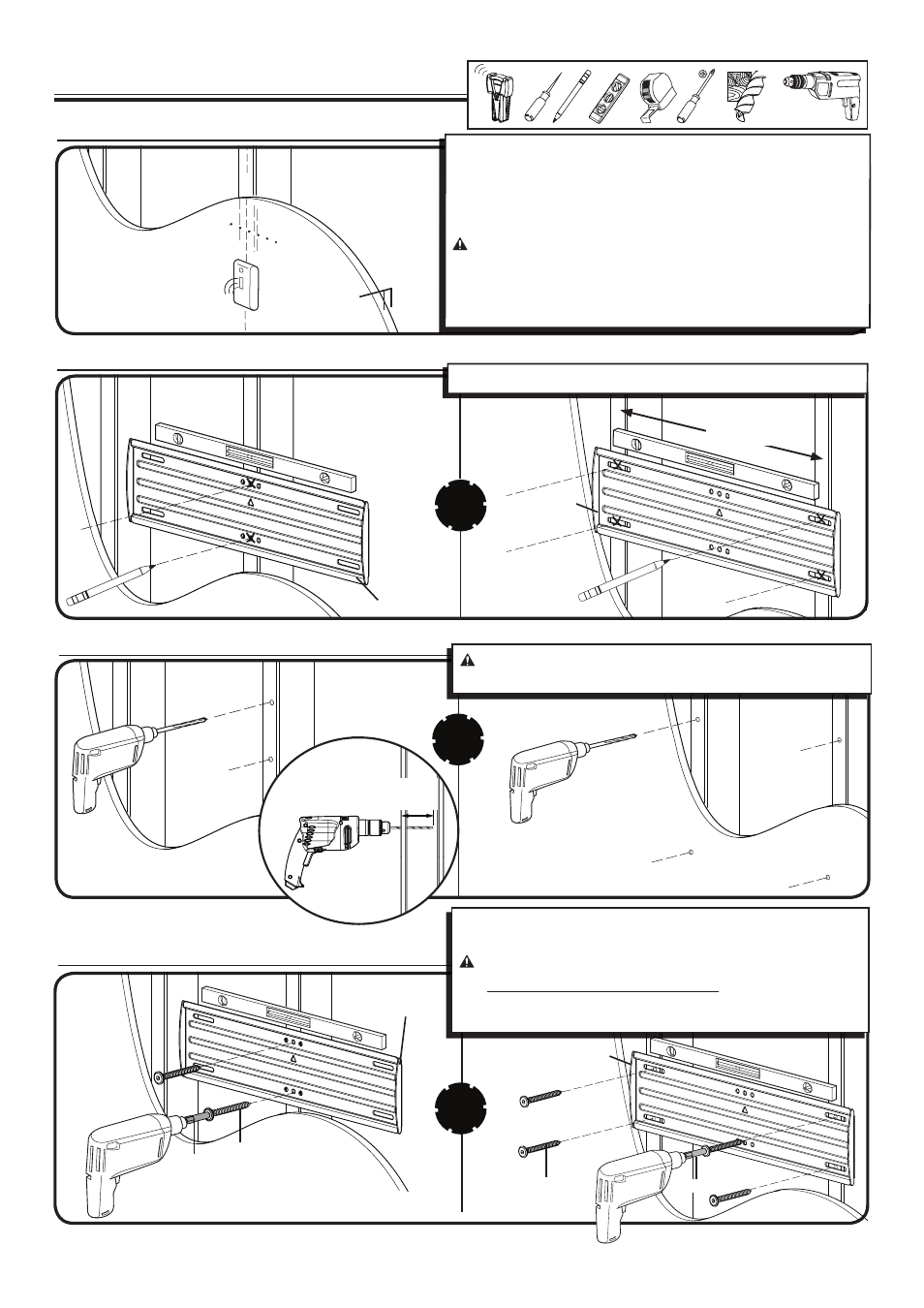

Wood Stud Mounting
[01]
[03]
002534.eps
LF288 / XF288 - Mount to wood stud
[01]
[01]
< 16 mm
(5/8 in.)
[01]
[03]
70mm
(2.75 in.)
OR
OR
OR
OR
41cm
(16 in.)
OR
OR
[04]
[04]
3-1
Locate studs
3-2
Mark the wall
Level the wall plate [01] and mark the hole locations.
For assistance in determining wall plate location, see Height Finder at
sanus.com.
The VML10 is designed for use in either single or dual stud walls.
Locate a stud or studs. Verify the center of the stud(s) using an awl or
edge to edge stud finder.
CAUTION:
Avoid potential personal injuries and property
damage!
Ù Any material covering the wall must not exceed 16 mm (5/8 in.).
Ù Minimum wood stud size: common 2 x 4 in (nominal 1.5 x 3 in.).
3-3
Drill pilot holes
CAUTION:
Pilot holes MUST be drilled to a depth of 70 mm
(2.75 in.), using a 5mm (3/16 in.) diameter drill bit.
3-4
Tighten lag bolts
Using a drill and the Allen Driver Bit [03] tighten lag bolts [04] only
until they are pulled firmly against the wall plate.
CAUTION:
Avoid potential injuries or property damage!
Ù DO NOT over-tighten the lag bolts [04].
Ù Tighten the lag bolts only until they are pulled firmly against the
wall plate [01].
5 mm
(3/16 in.)
