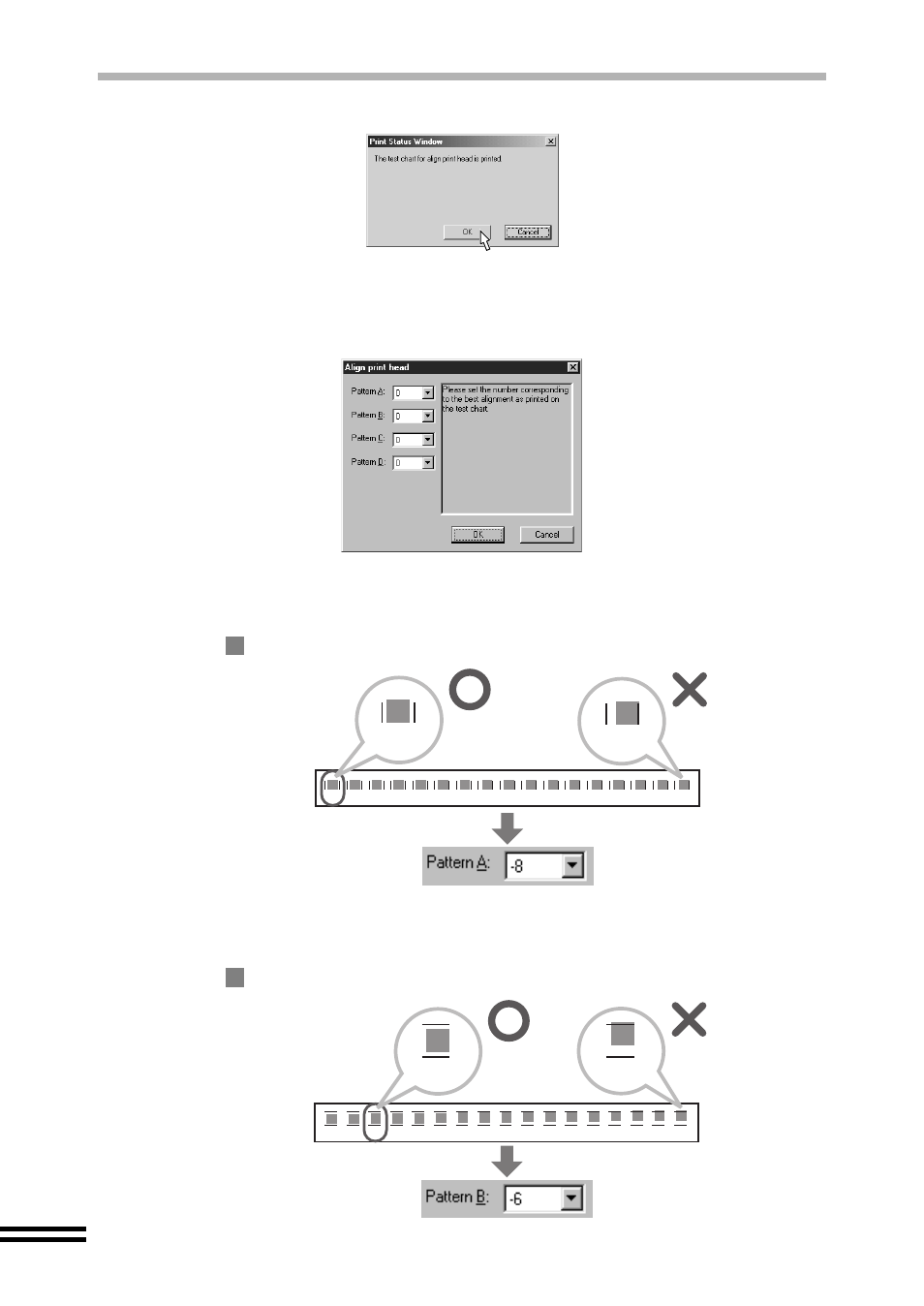

ALIGNING THE PRINT HEAD
7
Click the "OK" button.
The "Align print head" dialog box will appear, and a test chart will be printed.
8
Check the test chart results, and change the preferences to the
best setting for each pattern.
1) Select a pattern sample for "Pattern A".
Look at the chart A on your test chart. Select the number under the pattern sample,
which
is located closest to the centre of the two vertical lines.
2) Select a pattern sample for "Pattern B".
Look at the chart B on your test chart. Select the number under the pattern sample,
which
is located closest to the centre of the two horizontal lines.
-8
-7
-6
-5
-4
-3
-2
-1
0
+1 +2 +3 +4 +5 +6 +7 +8
-8
+8
Example:
A
-8
-7
-6
-5
-4
-3
-2
-1
0
+1 +2 +3 +4 +5 +6 +7 +8
Example:
-6
+8
B
