Assembly
Assembling the EB854 Blower
Prior to Assembly
Before assembling the blower, make
sure you have all required components.
Power unit and blower assembly.
■
Flexible tube, swivel tube, two noz-
■
zles and straight tube.
Handgrip.
■
IMPORTANT!
The terms “left”, “left-hand”, “LH”;
“right”, “right-hand”, and “RH”; “front”
and “rear” refer to directions as
viewed by the operator during normal
operation.
Two tube clamps (102 and 89 mm).
■
This Owner’s/Operator’s Manual
■
and a tool kit containing a tool
bag, 4 mm hex wrench, 5 mm hex
wrench and a combination spark
plug wrench/screwdriver.
Lead wire assembly (anti-static).
■
IMPORTANT!
This unit is equipped with a static
discharge reduction wire. This wire
helps direct static buildup into the air
stream reducing the felt amount to the
operator.
Place the blower upright on the 1.
ground or a sturdy work surface and
note parts orientation as shown in
Figure 4.
Remove static wire from package
2.
and fix eyelet to right hand engine
cover screw. See Figure 5.
Turn the discharge tube out to a
3.
right angle and slip anti-static wire
through the 102 mm clamp and flex-
ible tube.
Slip the flexible tube over the end of
4.
the 90° discharge tube, and secure
with the 102 mm clamp.
Insert the static wire through the 5.
swivel tube, then install and tighten
the 89 mm clamp over the rotating
band on the swivel tube.
Slide the handgrip over the swivel
6.
tube and secure with the bolt and
wingnut.
Fold the end of the static wire back
7.
over the connection of the swivel
tube. See Figure 5.
Grasp the straight tube, and push
8.
the straight tube over the swivel
tube locking pins securing the static
wire. See Figure 6.
Lock the straight tube to the swivel
9.
tube by rotating the straight tube
noting the alignment marks. See
Figure 6.
NOTE:
Check to make sure that the 90° dis-
charge tube swivels freely. If any bind-
ing is present, loosen 102mm clamp
and pull wire towards engine to get
more slack and recheck for free
movement.
89 mm Clamp 102 mm Clamp

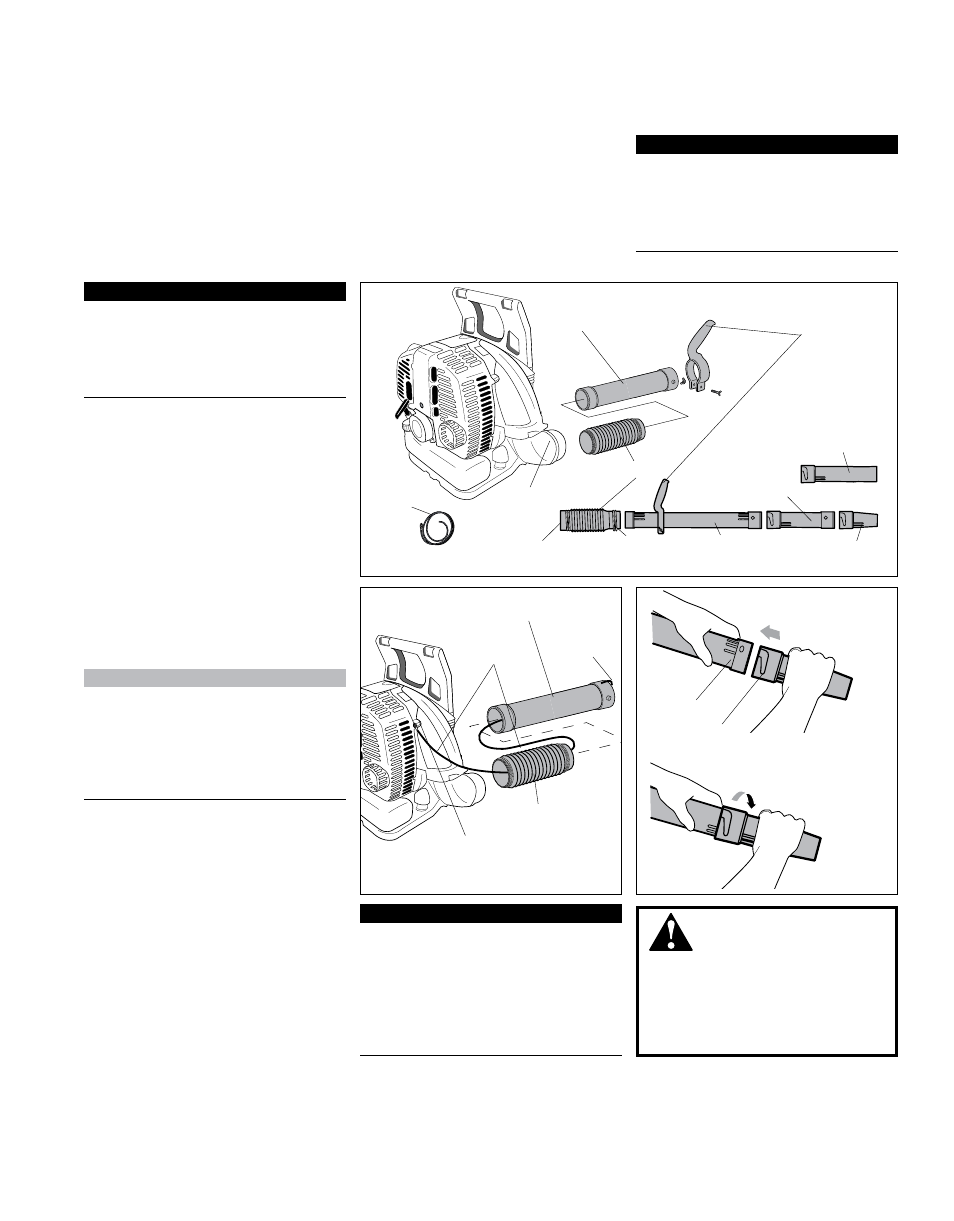

Figure 4
Swivel Tube
Swivel
Tube
Anti-Static
Wire
Lock Pin
Lock Slot
Rotate clockwise to lock making
sure the 3 lines are aligned on
both tubes.
Align the lock pins with the
lock slots and push the
tubes together
Figure 6 Figure 5
Static Wire
Connector
Static
Wire
Fold Wire
Flexible Tube
Swivel
Tube
Hand Grip
StraightTube 90° Discharge Tube
Flexible Tube
IMPORTANT!
Blower tube installation affects blower
performance! Make sure the tubes and
straight tube are correctly assembled
per above, and that all connections are
tight. Blower tubes may come apart
during use unless tubes are aligned
and locked into place.
WARNING!
Danger from rotating impel-
ler! Stop the engine before installing
of removing the blower tubes! Never
perform any maintenance or assem-
bly procedures on this unit while the
engine is running!
Grasp the nozzle, and push the 10.
nozzle over the straight tube locking
pins. See Figure 6.
Lock the nozzle to the straight tube 11.
by rotating the nozzle noting the
alignment marks. See Figure 6.
Adjust handgrip for best operator
12.
comfort, and tighten securely.
Carefully inspect all components for
damage.
Standard Nozzle
(ø65 mm)
Optional
Long Nozzle
(ø74 mm)
