6

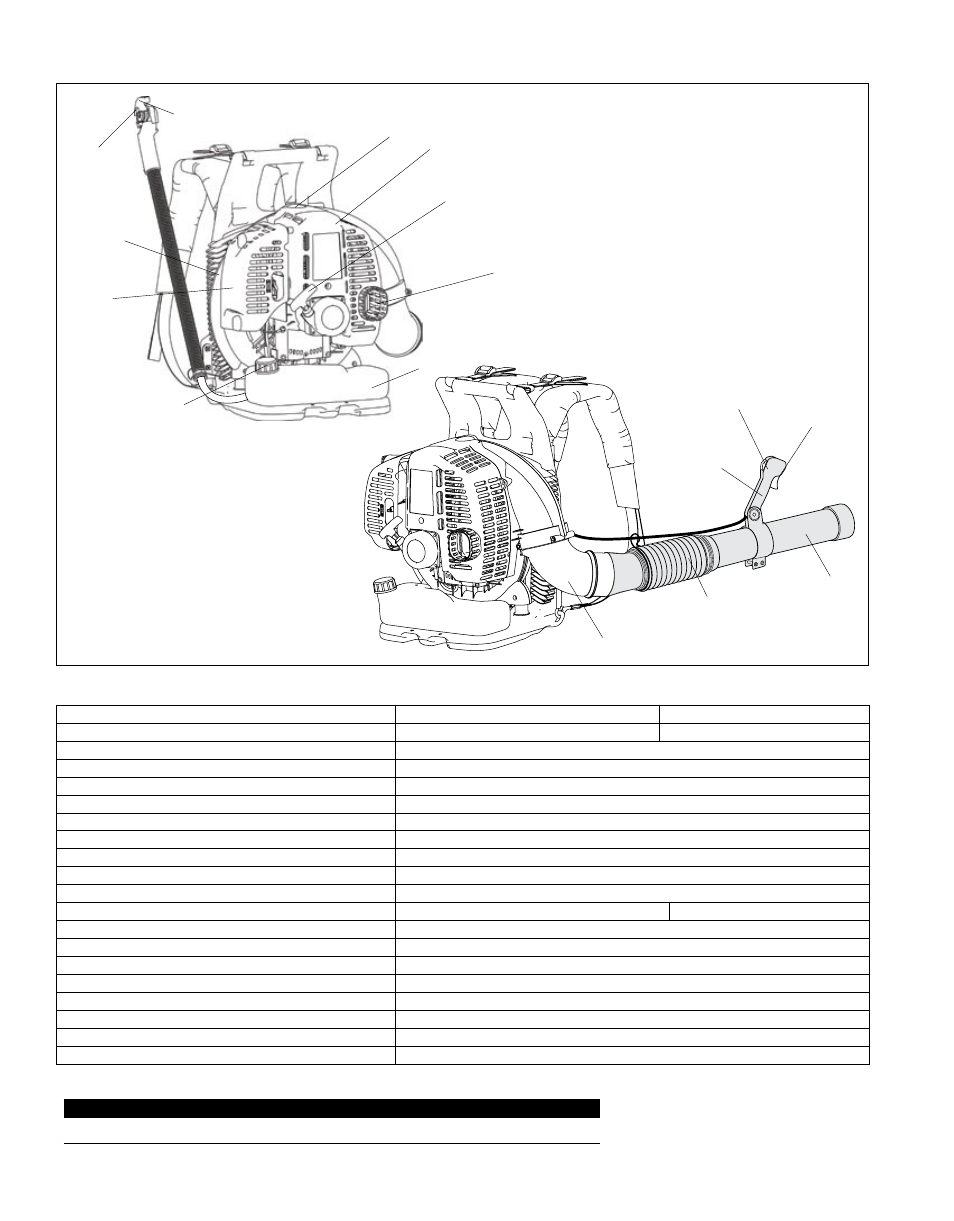

Unit Description
Throttle Lever
Air Cleaner
Cover
Spark Plug
Starter
Handle
Fuel Tank
Fuel Filler
Cap
Swivel Tube
Flexible
Tube
90° Discharge Tube
Exhaust Outlet
Fan Case
Engine
Cover
Figure 3
Stop Switch
EB854
Stop Switch
Throttle
Lever
EB854RT
Throttle
Assembly
Specifications
Specifications are subject to change without notice.
Using this illustration as a guide, famil-
iarize yourself with the blower and its
components. Understanding the unit
helps ensure top performance, longer
service life, and safer operation.
IMPORTANT
This spark ignition system complies with the Canadian standard ICES-002.
Model EB854 EB854RT
Dry Weight (without Blower Tubes) 11.8 kg/26.02 lbs 11.7 kg/25.8 lbs
Dimensions (L xWxH) 400 x 465 x 545 mm
Engine Type 4 cycle air-cooled gasoline engine, vertical-cylinder
Bore & Stroke 51 x 39 mm (2.01 x 1.54 inches)
Displacement 79.7cc (4.86 cu. inches)
Fuel/Oil Ratio 50:1 with *ISO-L-EGD or JASO FD class engine oil
Carburetor Diaphragm Type
Ignition CDI (Capacitor Discharge Ignition)
Spark Plug NGK CMR5H
Starting Recoil Starter
Stopping Push Button Switch (Grounding type) Slide Switch (Grounding type)
Fuel Tank Capacity 2.0 liters (67.6 oz)
Exhaust Spark Arrester Muffler
Air Filtration Dry Element with pre-filter
Air Speed 213 mph / 95 m/sec
Air Volume 660 cfm / 18.7 m 3 /min
Idle Speed 2,000 RPM
W.O.T. Speed w/std. nozzle 6,800 RPM
Sound Level 77 dB(A) @ W.O.T and 50 feet per ANSI B175.2
