Rx100 installation manual V1.17 29 Aug 08.doc Page 30
BBV Rx 100
Interface Receiver
Addendum to manual for the following camera:

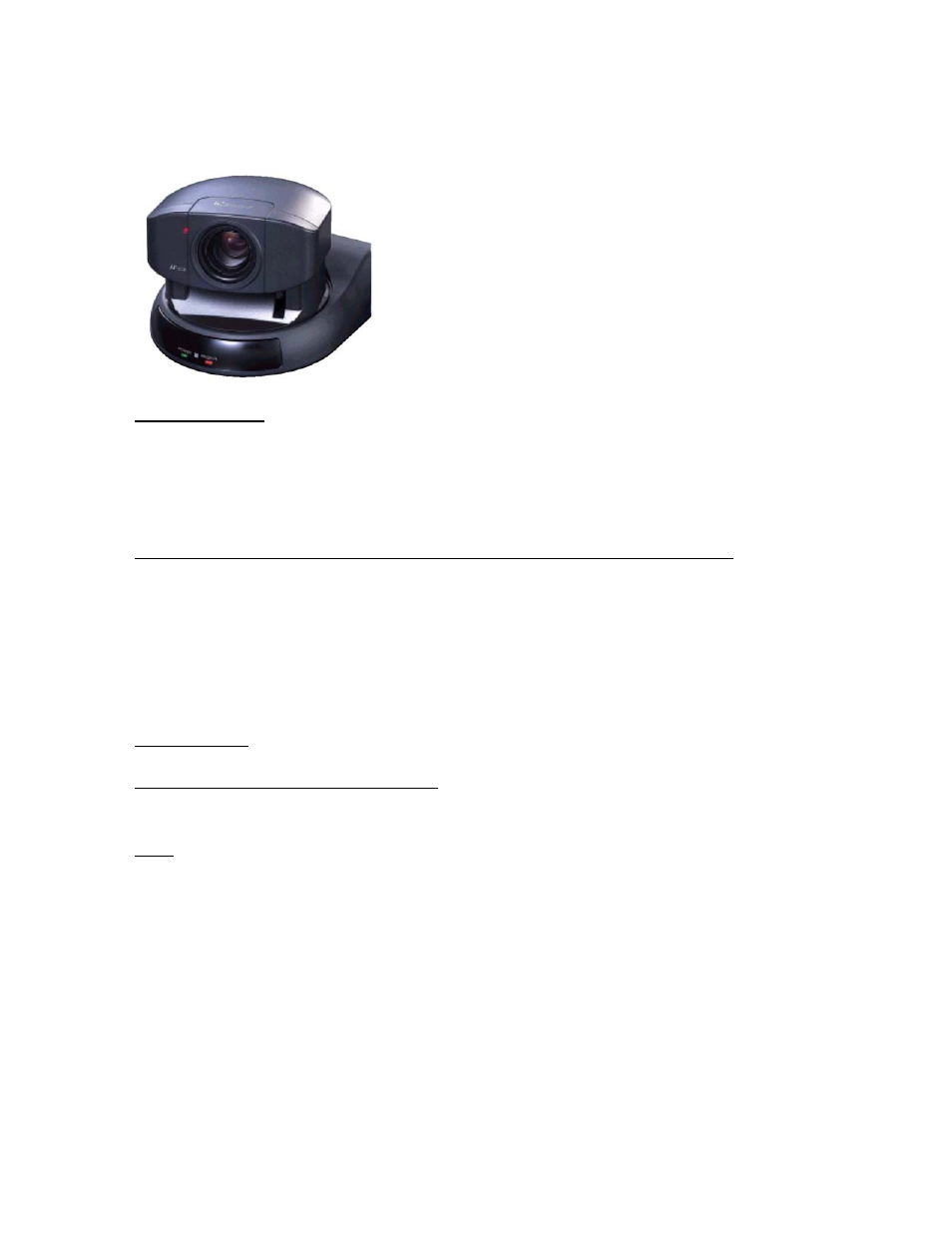

Sony EVI-D31 Webcam
Rx100 software RXS4V3
Coaxial telemetry ONLY. Not twisted pair.
Application Notes
Variable speed Pan/Tilt.
Zoom/Focus, Autofocus with manual override (returns to auto following zoom command)
6 full scene presets
2 preset patrols
4 alarm inputs driving to preset 1 – 4
Advanced
Features Tx400 Tx1000 Tx1500 DM Sprite/DS2/BX2
Toggle Backlight compensation '#' ‘1’ ‘#’ WASH 1 ‘#’ *889 002 or 10 10 2
Cycle White Balance ‘#’ ‘2’ ‘#’ WIPE 2 ‘#’ *889 003 or 10 10 3
AUTO, INDOOR, OUTDOOR
Toggle AutoExposure/Bright mode ‘#’ ‘3’ ‘#’ AUTOPAN 3 ‘#’ *889 004 or 10 10 4
Iris keys used in Bright mode
Reset dome to default ‘#’ ‘4’ ‘#’ LIGHTS 4 ‘#’ *889 005 or 10 10 5
RS232 control of dome 9600 Baud, No parity, 8 data bits, 1 stop bit. The camera uses a sub-miniature 8 pin DIN socket. A
Sony supplied VISCA to DB9 RS232 cable may help with installation.
Connection details:
Camera Pin Description Rx100
5 Receive Data J3/C1
4 or 6 Ground J3/GND
Notes:
Link J6/1-2 selects a 5 minute datum mode. If fitted and no activity for 5 minutes, the camera will drive to either preset 1 or start PATROL 1 depending on link
J6/3,4,5, Fitted to J6/4&5 = Goto Preset 1 or fitted to J6/3&4 = start PATROL 1.
The alarm output relay opens for approx 5 seconds upon power up. This can be used to signal power loss, etc.
Check with the multiplexer manual for exact procedure for entering * commands.
IMPORTANT:
Ensure that CAMERA NO switch on the camera rear panel is set to 1.
As communications is RS232 please limit cable from Rx100 to camera to less than 5M.
