Reattaching the Fridge Door

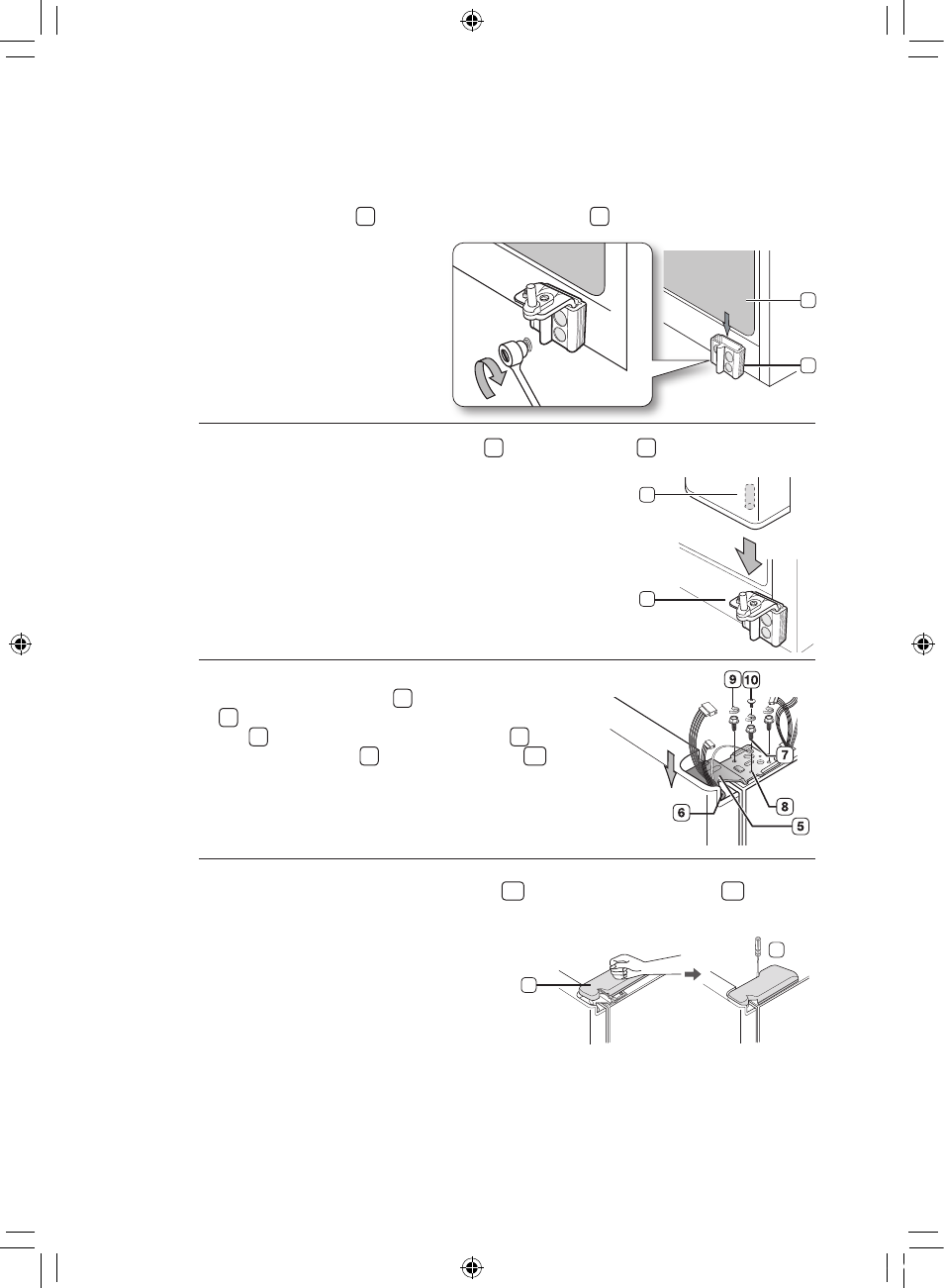

1. Insert the lower hinge 1 back into the lower hinge bracket 2 .
2. Fit the hole in the corner of the fridge door 3 over the lower hinge 4 .
3. Insert the upper hinge shaft 5 into the hole on the hinge
6 . Make sure the hinge is level between the upper hinge
hole 7 and the hole on the top of the cabinet 8 . Then,
reattach hinge screws 9 and the ground screw 10 by
turning it in a clock wise direction.
4. Place the front part of the upper hinge cover 11 on the front of the upper hinge 12 and
reattach it with the screw.
