Network Unit
OWNER’S MANUAL
Connection of LAN cable
ENGLISH
[2] Connection of LAN cable
To connect to the network, it is required to use the UTP (Unshielded Twisted Pair)
strait cable with RJ-45 plug. There are two different types of cables depending on
whether the network is constructed with 10Base-T or 100Base-TX. Prepare the Hub
(10Base-T or 100Base-TX) to distribute the network cable if required.
1
Disconnect the AC plug from the projec-
tor.
2
Connect the UTP strait cable to the LAN
port on the Network Unit.
3
Connect the UTP strait cable to the hub.
✐ Use the UTP cross cable when you connect the computer and projector directly not using the
hub.
✐ When you connect the projector into the 10Base-T network, use cable with category 3 or 5.
When you connect the projector into the 100Base-TX network, use cable with category 5.
✐ The length of cable between hub and projector should be less than 100m.

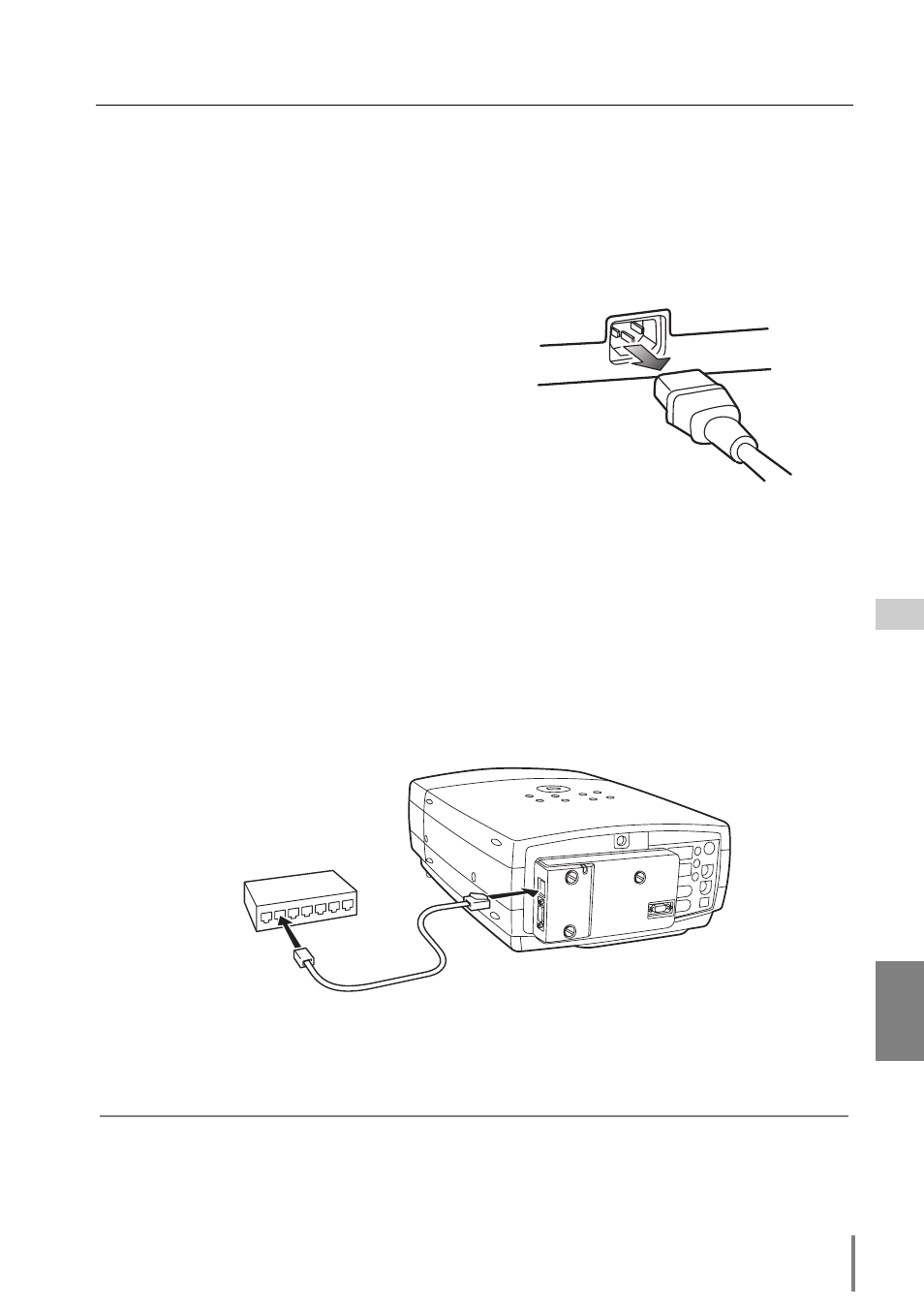

Hub
(10BaseT, 100Base-TX)
UTP strait cable
Projector
