Connecting to an ethernet cable – Sanyo Proj05 User Manual
Page 12

1
Chapter 2 Setup Procedures
1 Turn off the Mains switch.
2 Plug the RJ-45 connector at one end of the cable into the LAN port.
3 Plug the RJ-45 connector at the other end of the cable into a port on a hub.
Setting procedures and contents differ depending on the LAN installation location.
When installing, consult your system administrator to set up the LAN appropriately.
To connect your projector to a hub which supports 10Base-T/100Base-TX, use a STP
(Shield Twisted Pair) straight-through cable having RJ-45 connectors.

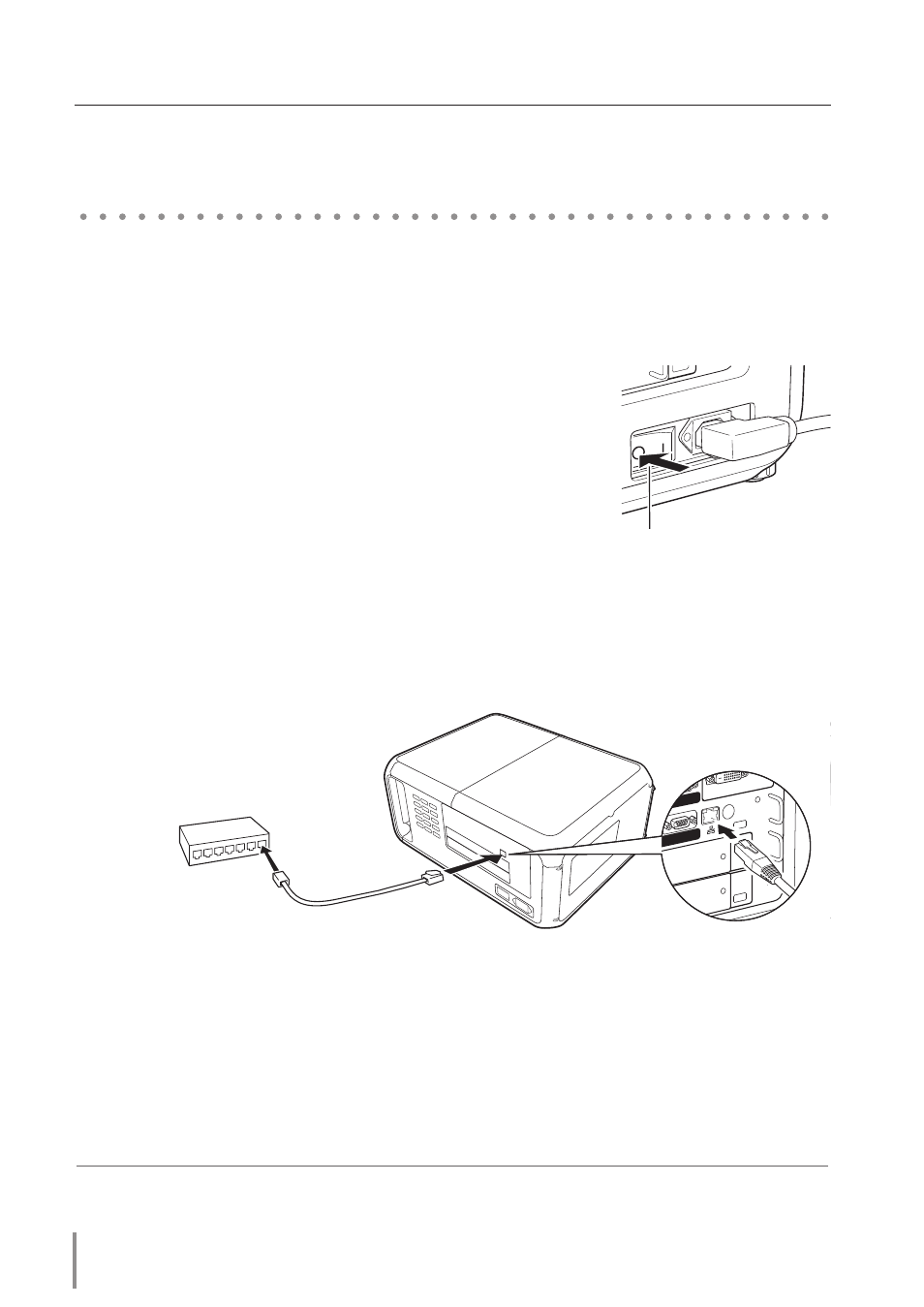

Connecting to an Ethernet cable
✐
Use a STP crossover cable when directly connecting between the projector and computer with-
out using a hub.
✐
The cable length between a hub and projector should be less than 100m.
Mains Switch
Hub
(10Base-T, 100Base-TX)
Projector
STP straight-through cable
