4-1. Serial Interface Cable
4. CONNECTING THE INTERFACE CABLE
1 Turn off power for both the host
computer and the printer.
2 Insert the connector of the interface
cable into the connector on the
printer and the other end of the in-
terface cable into the connector for
the host computer.
3 Next, tighten the screws on the con-
nectors.

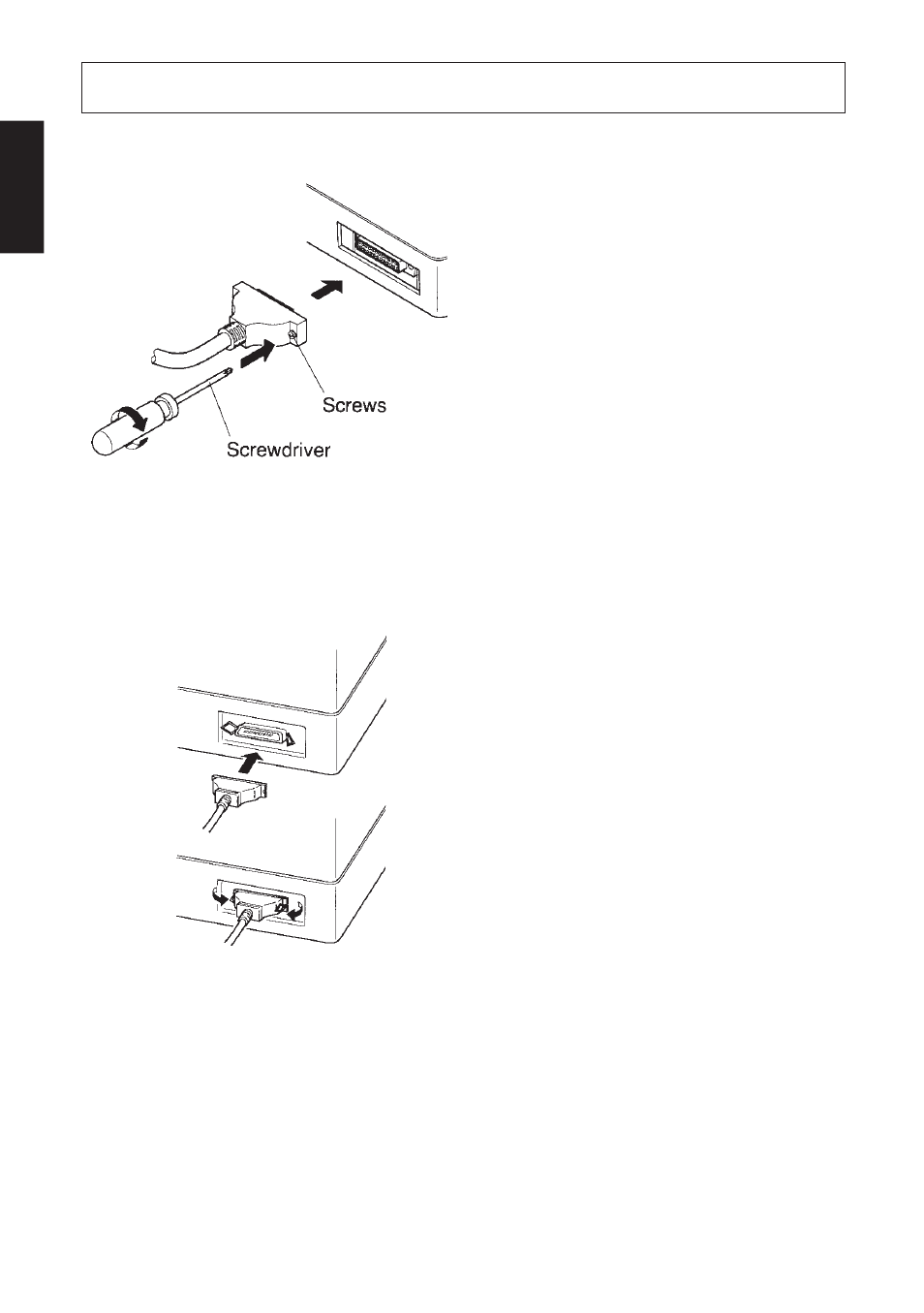

Fig. 4-1 Connecting the serial interface
cable
4-2. Parallel Interface Cable
1 Turn off the power for both the host
computer and the printer.
2 Insert one connector of the interface
cable into the printer’s connector
and fasten it with the clasp, as shown
in Fig. 4-2.
3 Insert the other terminal of the inter-
face cable into the host computer’s
connector, and fasten it with the
clasp.
Fig. 4-2 Connecting the parallel interface
cable
