SETTINGS

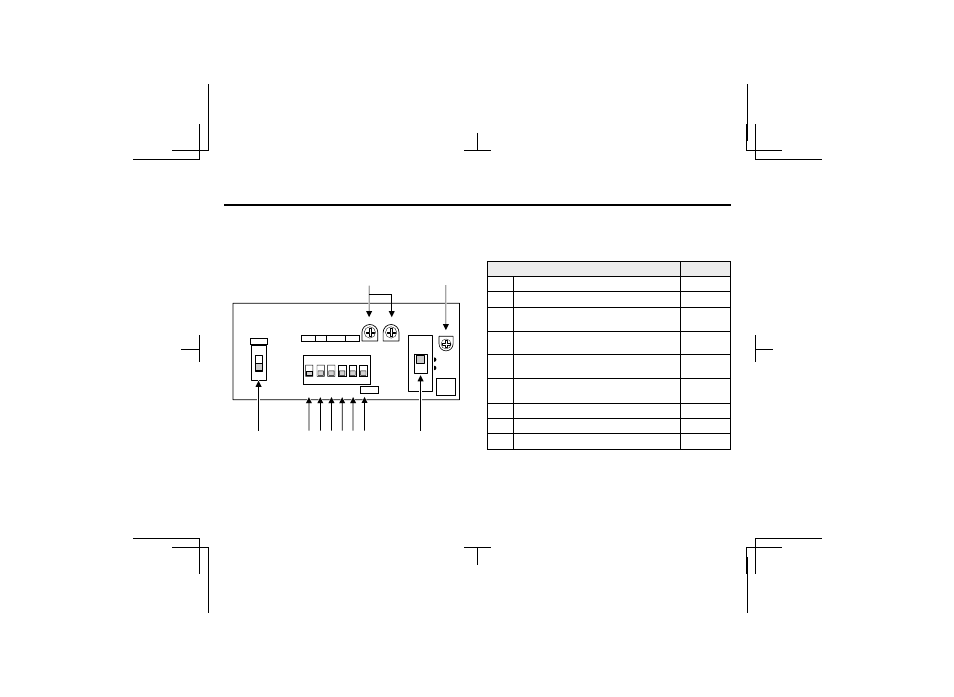

The illustration shows the factory default settings for the switches in the camera setup section.
The camera settings are described on the assumption that a DC type auto iris lens is being used. If you are using a VIDEO type auto iris lens, be
sure to read the Note which is given. Furthermore, refer to the sticker on the inside of the cover for details on DIP switch positions.
Control name
Position
1
Color and Black/White level switch (C-BW)
L
2
Electronic Iris (EI)/Auto iris (AI) setting
AI
3
Aperture compensation setting
(Sharp: SHRP/Normal: NOR)
SHRP
4
Backlight compensation mode setting
(MULT/OFF)
OFF
5
Backlight compensation setting (BLC)
(CENT/OFF)
OFF
6
White balance switch (WB) and color
(R or B) adjustment volume
ATW
7
External sync setting (SYNC: LL/INT)
INT
8
Auto-iris lens setting (A.I. LENS), see page 6
DC
9
Lens iris level adjustment
adjustable
1
C-BW
L
H
6
5
ON
3
4
2
1
DC
VIDEO
A. I.
LENS
VR301
9
VR302
VR303
IRIS
SYNC
A
I
E
I
OFF
ATW
NOR
OFF
CENT
M
SHRP
LL
SC-P1
AP BLC WB
6
23
6 7
8
45
BLUE
R
E
D
MULT
