CONNECTIONS

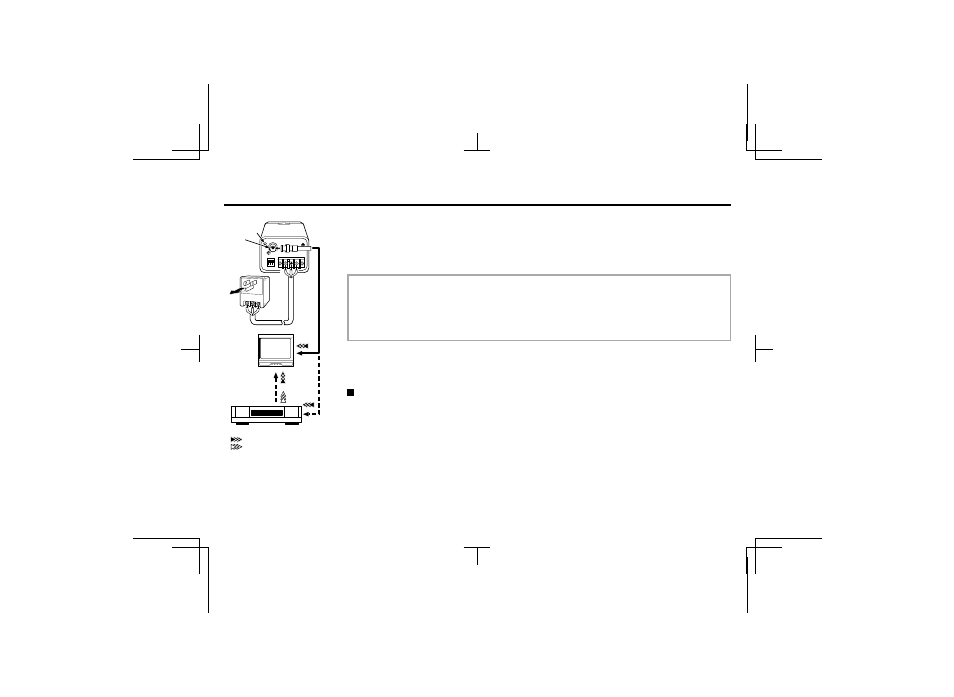

Basic connection for monitoring or recording
The peripheral devices (VCR, monitor, lens, etc.) and cables are sold separately.
1
Make the video signal connection between the camera and the monitor or time lapse VCR.
2
Connect to 24 V AC UL listed class 2 power supply.
CAUTION:
•
To prevent camera and/or power supply failure, pay close attention to polarity when making the
connections.
•
To prevent fire hazard any UL listed wire rated VW-1, should be used for the 24 V AC cable input
terminal.
3
Insert the plug of this power cord into a wall outlet.
The POWER indicator (A) will light. Adjust the picture on the monitor using the Brightness and Contrast
controls.
Coaxial cable type and maximum length
•
Cable type RG-59U (3C-2V), 250 m maximum.
•
Cable type RG-6U (5C-2V), 500 m maximum.
•
Cable type RG-11U (7C-2V), 600 m maximum.
CAUTION:
•
The RG-59U type cable should not be run through electrical conduits or through the air.
•
Using CCTV/Video-grade coaxial cable.
(Video signal connections)
: VIDEO IN
: VIDEO OUT
(A)
1
2
