30
Reattaching the Freezer Door

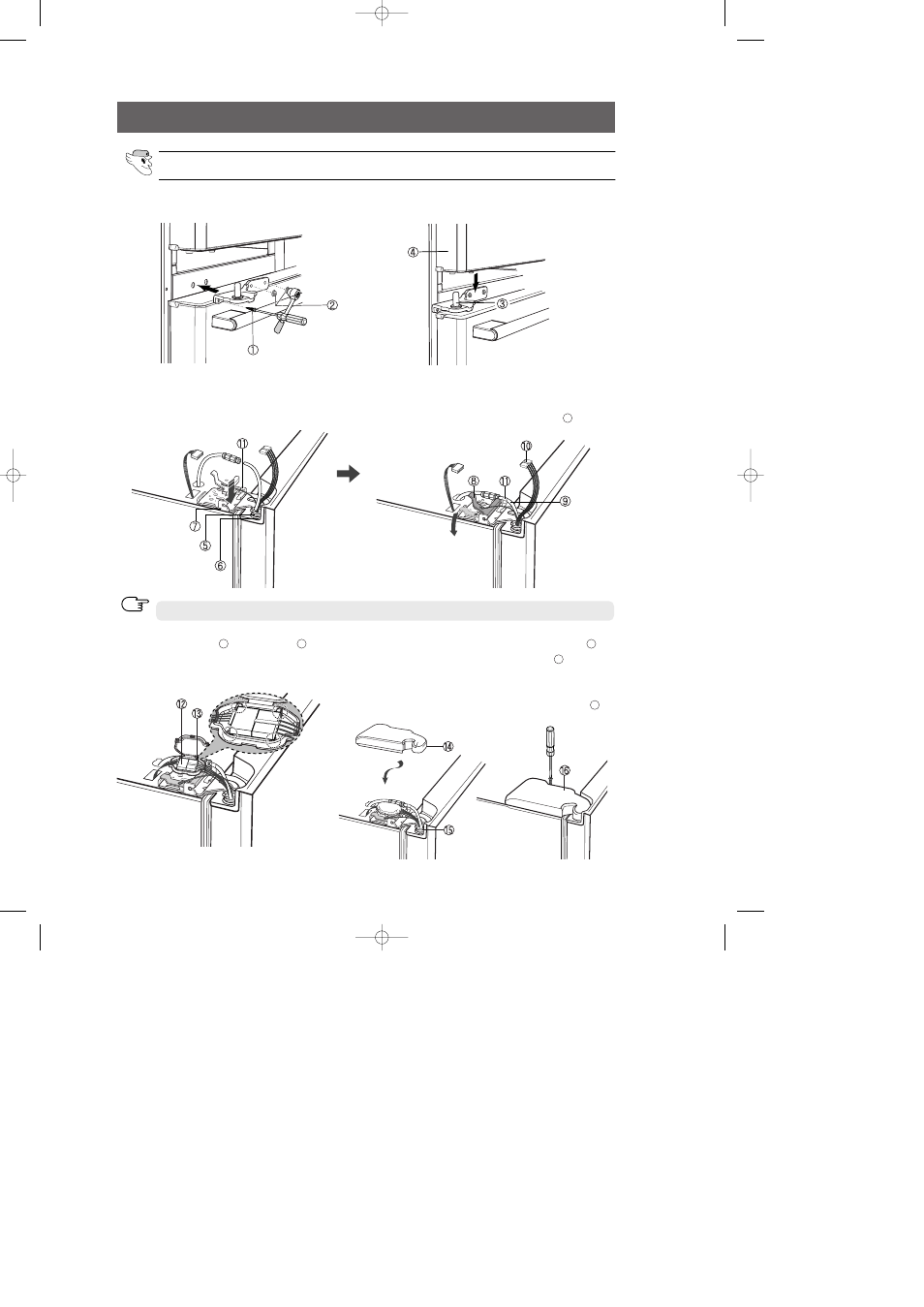

REATTACHING THE REFRIGERATOR DOORS
1) Reattach a phillips screw ( ➀) and two hex head
screws ( ➁) to the hinge completely.
2) Place the hole in the bottom of the door ( ➃)
over the hinge ( ➂).
3) Insert the upper hinge shaft ( ➄) into the hole (➅). After levelling between the hinge brackets (➆).
Reattach and close the latch ( ➇) along the arrow.
Connect the water tube ( ➈) and the wires (➉). Then, place the water tube(➈) on the hanger ( )
4) Put the connector ( ) in the guide ( ) of the
connector-cover and close it.
5) Put the front part of the upper hinge cover ( )
on the front part of the upper hinge ( ) and
reattach it from the front of the upper hinge
cover first.
6) Reattach a phillips screw to the hinge cover ( ).
Be sure to insert the water tube and push to the end.
NOTE
14
15
16
12 13
11
