Getting Started

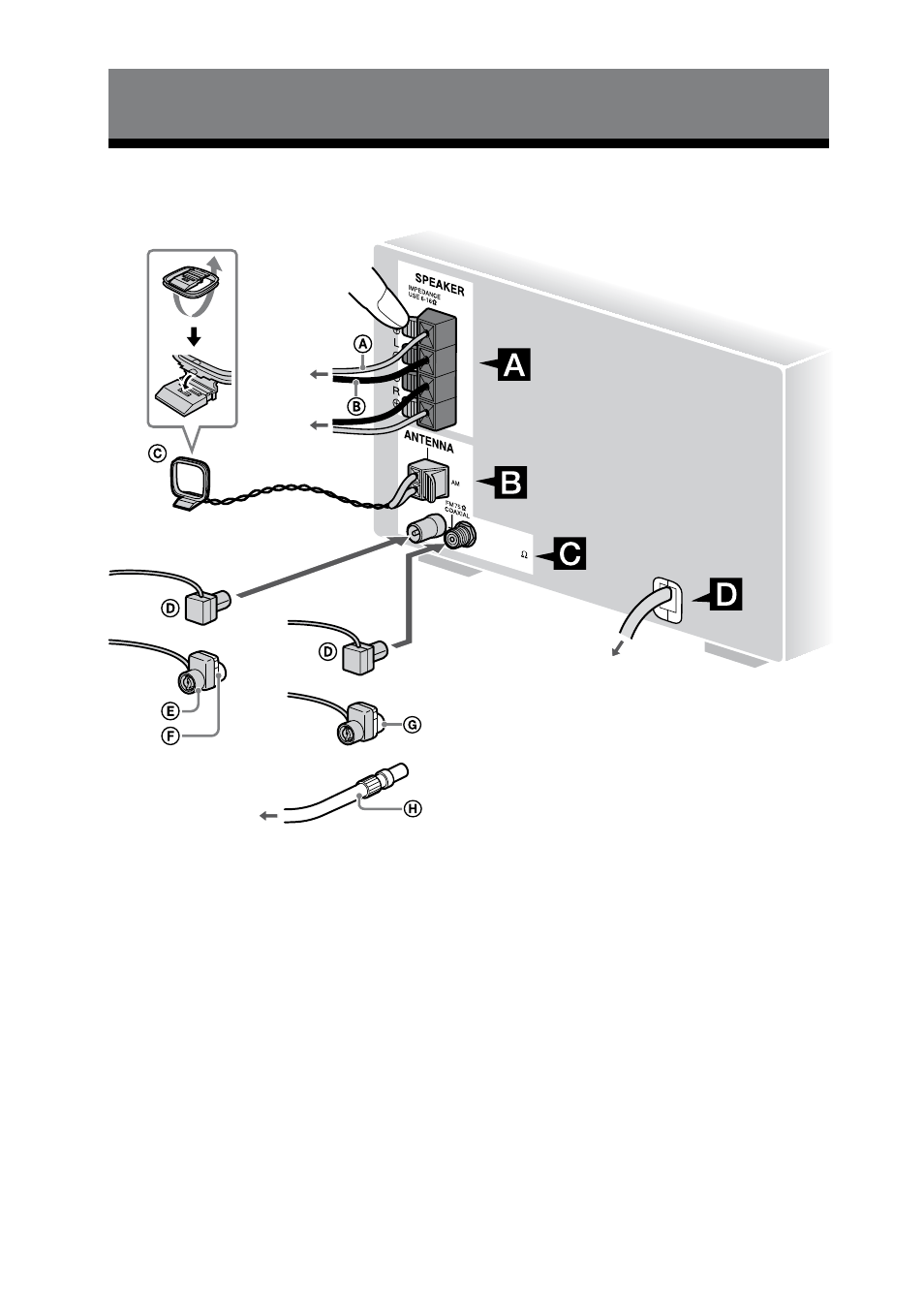

Hooking up the system securely

DAB 75

ANTENNA

 Speaker cord (Red/)

 Speaker cord (Black/)

 AM loop antenna

 FM/DAB lead antenna (Extend it horizontally.)

 Brown side for other regions

 White side for North American model

 Connect white side.

 75-ohm coaxial cable with F male type connector

(not supplied)

 Speakers

Insert only the stripped portion of the

speaker cords into the SPEAKER jacks.

 FM/AM antennas

Find a location and an orientation that

provide good reception, and then set up

the antenna.

Keep the antennas away from the speaker

cords, the power cord and the USB cable

to avoid picking up noise.

DAB external antenna

(not supplied)

Left speaker

Right speaker

Wall socket
