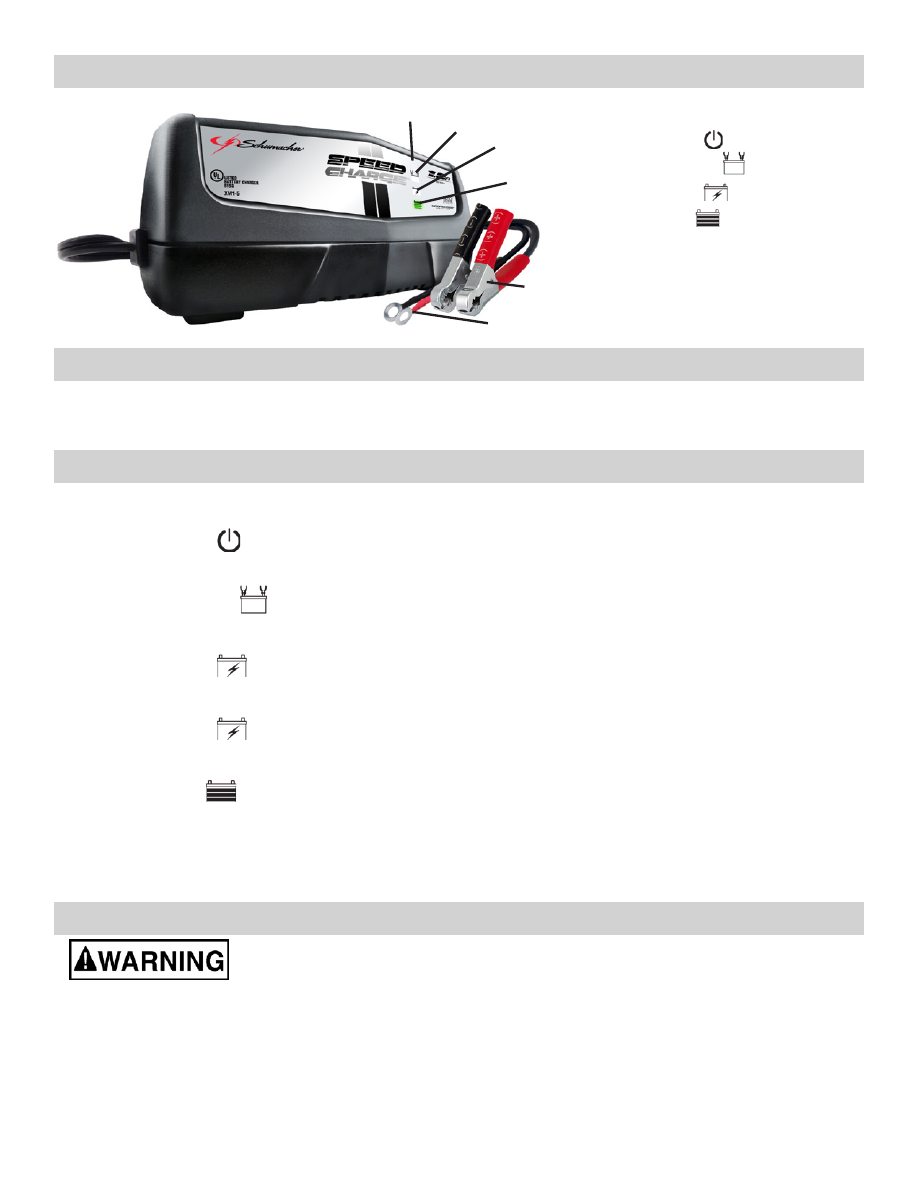

FEATURES 9.
AC POWER 1. (red) LED
CONNECTED 2. (red) LED
CHARGING 3. (yellow) LED
CHARGED 4. (green) LED
Battery Clip Cable Assembly 5.
Ring Terminal Cable Assembly 6.
2
4
3
1
6
5
ASSEMBLY iNSTRUCTiONS 10.
Remove all cord wraps and uncoil the cables prior to using the battery
charger.
CONTROL PANEL 11.
LEd indicators
AC POWER (red) LEd lit: Indicates that there is AC power
supplied to the battery charger.
CONNECTEd (red) LEd lit: Indicates that the charger is properly
connected to the battery.
CHARGiNG (yellow) LEd lit: Indicates the charger has detected
a battery and is charging it.
CHARGiNG (yellow) LED flashing: Indicates the charger is in
abort mode.
CHARGEd (green) LEd lit: Indicates the battery is fully charged
and the charger is in maintain mode .
NOTE: See the Operating Instructions section for a complete
description of the charger modes.
OPERATiNG iNSTRUCTiONS 12.
This battery charger must be properly assembled in
accordance with the assembly instructions before it is used.
Charging
Ensure that all of the charger components are in place and in 1.
good working condition, for example, the plastic boots on the
battery clips.
