28
Connections and Source Setup
Connecting to Video Equipment
Connections and Source Setup
Connecting to Video Equipment
S-VIDEO OUT COMPONENT VIDEO OUT AUDIO OUT
29
Connect antenna cable to antenna
signal input terminal of the receiver. 1
Connect COMPONENT1 or
COMPONENT2 (Y/P
b /P r ) port of the
projector to Component port of the
receiver using Component Cable.
■ If the receiver has DVI or PC OUT port,
you can connect it to DVI or PC input
port of the projector.
2
Turn on the projector and press the COMP.1
button to select Component1.
Press the COMP.2 button to select
Component2 if COMPONENT2 is connected.
If the receiver is connected to DVI or PC port,
press the DVI or PC button to select DVI or PC
respectively.
■ When Component Mode is not available, check that
the component cables are in place.
DVI
PC
Component1
DVI
Rear side of Projector
Digital TV Receiver
(Set-Top Box)
DVI Video Cable
PC Video Cable
Rear side of Projector
DVD
Component Cable
Component Cable

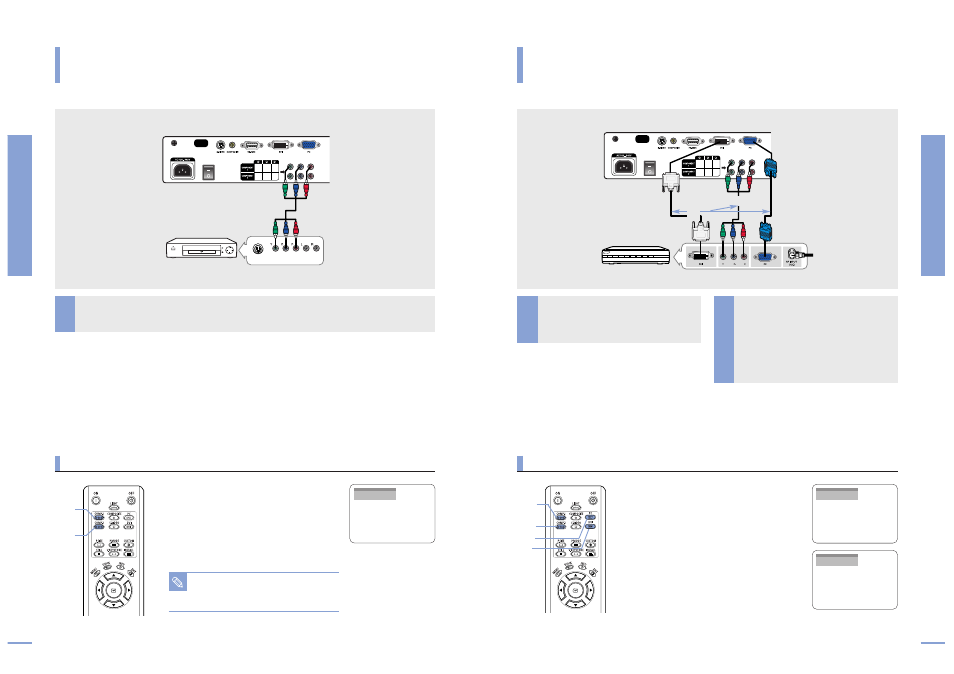

CONNECTING TO VIDEO EQUIPMENT
Connecting to DVD
CONNECTING TO VIDEO EQUIPMENT
Connecting to the Digital TV Receiver
or
Rear Connection
Rear Connection
Connect COMPONENT1 or COMPONENT2 (Y/Pb/Pr) ports of the projector to
Component port on the rear side of DVD using Component Cable.
Turn on the projector and press the COMP.1
button to select Component1.
Press the COMP.2 button to select
Component2 if COMPONENT2 is connected.
■ When Component Mode is not available, check that
the component cables are in place.
Viewing the picture
NOTE
Component Ports are marked as (Y, Pb,Pr),
(Y, B-Y, R-Y) or (Y, Cb, Cr) depending on
the manufacturer.
Component1
Viewing the picture
1
COMP.1
1
COMP.2
2
2
1
2
COMP.1
1
COMP.2
2
