Elite 9 Installation Guide, Rev. B

SCSI ID = 0 (factory setting)

SCSI ID = 1

SCSI ID = 2

SCSI ID = 3

SCSI ID = 4

SCSI ID = 5

SCSI ID = 6

SCSI ID = 7

J4A

SCSI ID = 8*

SCSI ID = 9*

SCSI ID = Ah (10)*

SCSI ID = Bh (11)*

SCSI ID = Ch (12)*

SCSI ID = Dh (13)*

SCSI ID = Eh (14)*

SCSI ID = Fh (15)*

*Applicable only for W- and WD-type drives.

DC Power
Connector

J4A

SCSI I/O

Connector

J4B

J01

Pin 1

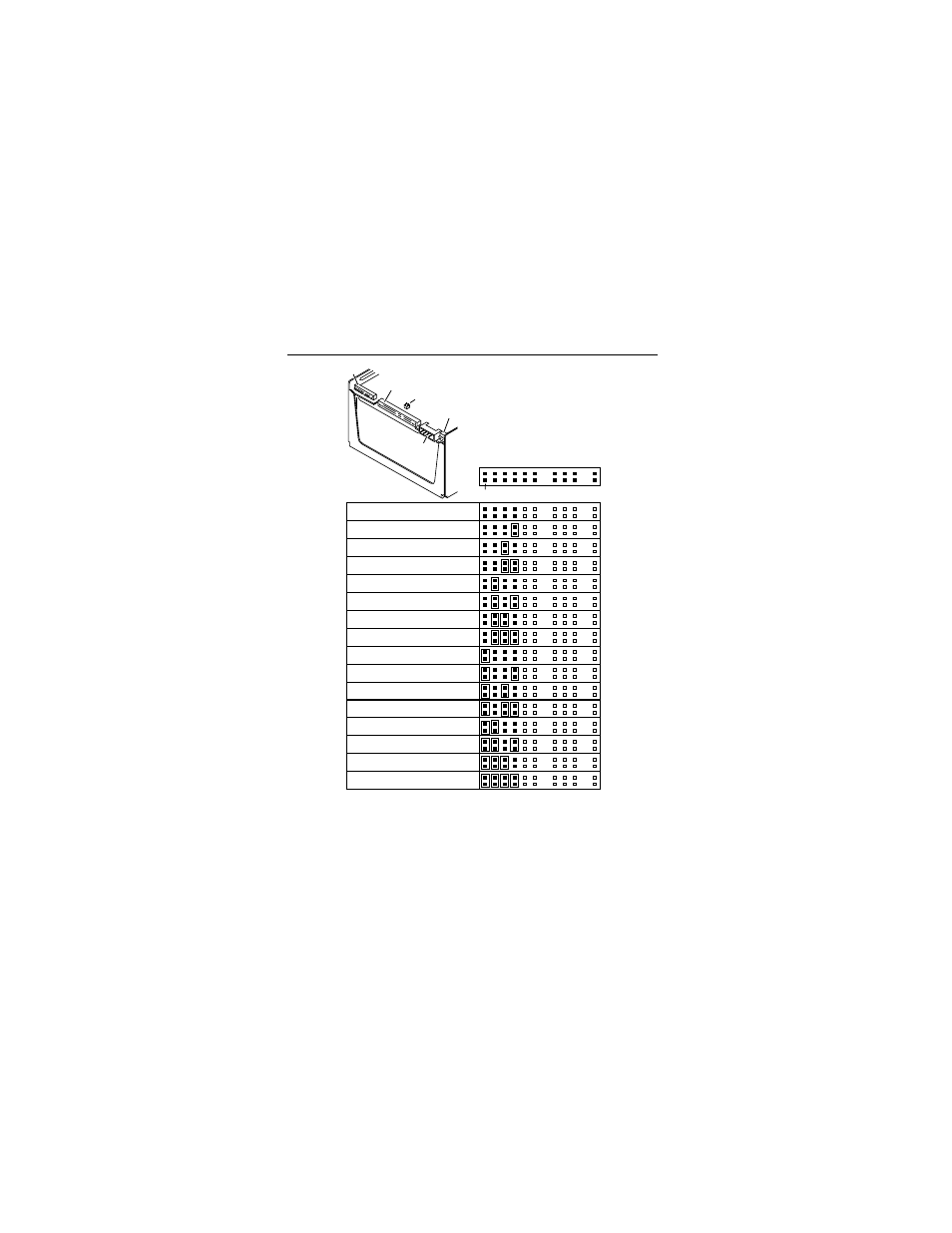

Figure 2. Setting the SCSI ID
