24
GB

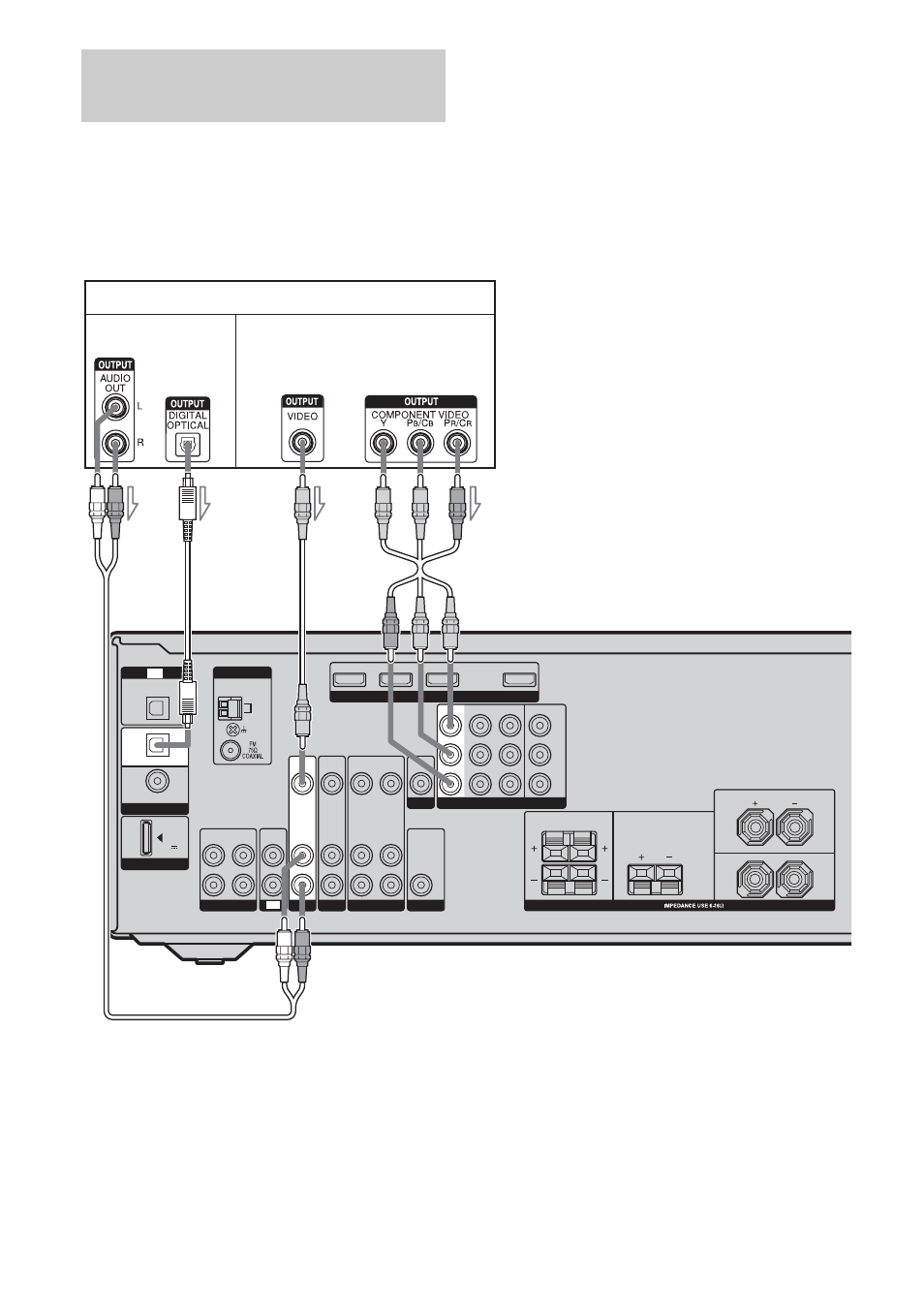

The following illustration shows how to
connect a satellite tuner or set-top box.
It is not necessary to connect all the cables.
Connect audio and video cords according to
the jacks of your components.
Notes
• When connecting optical digital cords, insert the
plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
Connecting a satellite tuner/
set-top box
AM
HDMI
SAT IN
OUT
SA-CD/CD/CD-R
OUT
IN
IN
L
R
DMPORT
OPTICAL
ANTENNA
IN
TV
TV
SUB WOOFER
MONITOR
AUDIO
IN
VIDEO
IN
AUDIO
IN
VIDEO
IN
DVD
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
VIDEO 1
SURROUND
CENTER
L
R
FRONT
L
R
SPEAKERS
DC5V
0.7A MAX
DIGITAL
(ASSIGNABLE)
OPTICAL
SAT
IN
DVD
IN
COAXIAL
AUDIO
IN
Y
P
B
/
C
B
P
R
/
C
R
COMPONENT VIDEO
DVD IN
VIDEO 1 IN MONITOR OUT
SAT IN
DVD IN
BD IN
VIDEO
OUT
VIDEO
IN
SAT
B
A
Audio signals
Video signals
C
Satellite tuner/Set-top box
D
A
Audio cord (not supplied)
B
Optical digital cord (not supplied)
C
Video cord (not supplied)
D
Component video cord (not supplied)
